Fig. 43: Flowchart For Checking The Counting Operation - IRIS IRMA MATRIX 2 Installation Manual

61/74 IRMA MATRIX R2 CAN Installation manual
released
Door status <bW>: "b1" = closed, "b0" = open
Test on next door

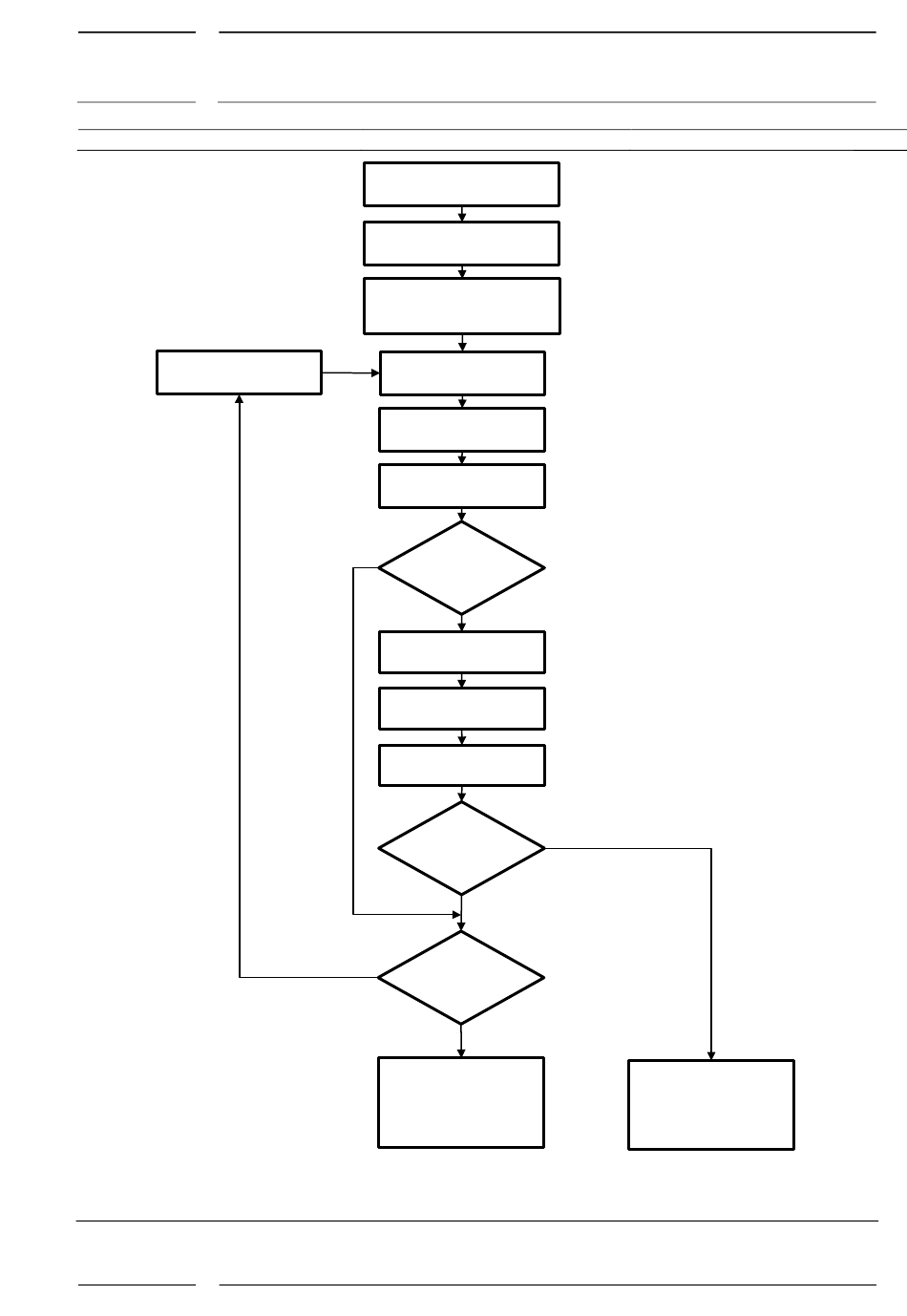

Fig. 43: Flowchart for checking the counting operation
Rev. 1.6 2018-09
Close all vehicle doors
Start "IRMA-A21-Windows"
Select "Communication"
->IBIS
IRMA (UIP) or J1708R?
Open vehicle door
Mount 5 times
Close vehicle door
yes
Counting
result
correct?
no
Open vehicle door
Mount 5 times
Close vehicle door
Counting
result
correct?
yes
Other
door(s)?
yes
no
Installation check
successfully concluded
no
Check installation or
configuration
