64/74
IRMA MATRIX R2 CAN Installation manual
released
12.1.2

Installation conditions for IRMA MATRIX sensors with different sensor/connector versions

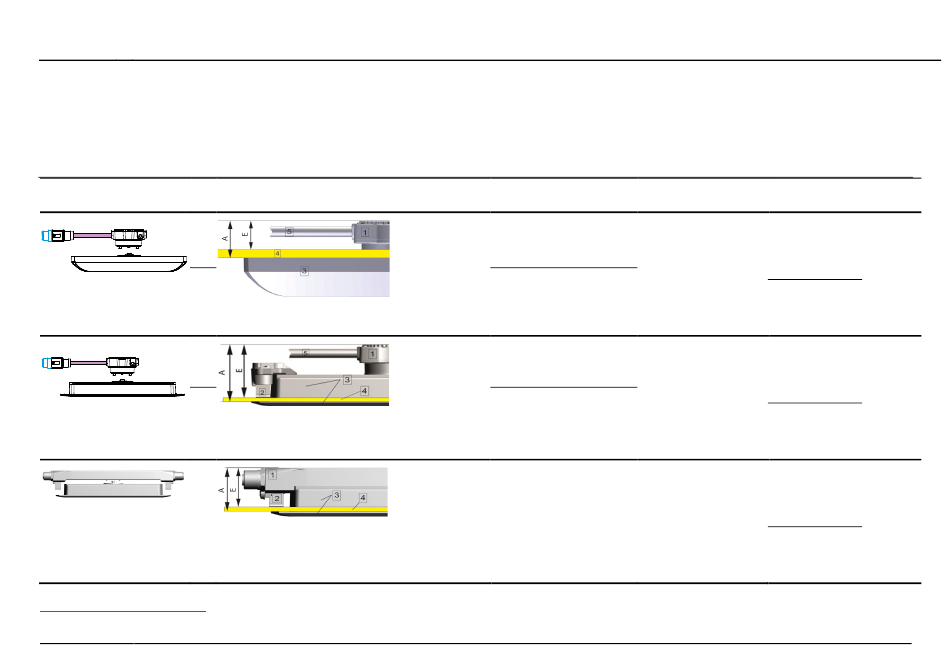

Table 13: Installation conditions for IRMA MATRIX sensors with different sensor/connector versions (required mounting depth, mounting sets and tools)
IRMA MATRIX sensor version
+ sCON version
+
DIST500-A; surface mount version
E = 21 mm - thickness of cove
sCON-S (standard)
Typical mounting depth = 19 mm (13 – 20 mm)
+
DIST500-F; flush mount version
E = 39 mm – thickness of cove A = 39 mm
sCON-S (standard)
Typical mounting depth = 37 mm (31 – 38 mm)
+
DIST500-F; flush mount version
E= 31 mm – thickness of cove A = 31 mm
sCON-F-12
Typical mounting depth = 29 mm (23 – 30 mm)
12
The necessary mounting depth behind the cove (door trim) depends on the thickness of the wall into which the sensor is to be fitted.
Rev. 1.6 2018-09
12
Required mounting depth = E
E = (A – 8 mm) to (A - 1 mm)
1 sCON-S
3 Sensor
4 Cove
5 Connecting cable
A = 21 mm
1 sCON-S
2 Leaf spring
3 Sensor
4 Cove
5 Connecting cable
1 sCON-F-12
2 Leaf spring
3 Sensor
4 Cove
sCON type designation Mounting sets
sCON-S-CAN-20-Kn-x
Set_DIST500A-blank-01
sCON-S-CAN-ETH-23-Kn-x-y
Product No.: 0006_87
sCON-S-CAN-20-Kn-x
sCON-S-CAN-ETH-23-Kn-x-y
Product No.: 0006_91
sCON-F-12-CC-E
Mounting tools/auxiliary
tools and material
- Torque wrench
with Allen key adapter size 4
- Torque wrench M12
For railway installation:
(acc. to EN 50153 and/or EN 50121-
3-2)
1 x screw M4x5 and 1 x spring
washer, yellow/green grounding
cable with line cross section ≥ 1 mm²
- Torque wrench
with Allen key adapter size 4
- Torque wrench M12
Set_D500F-01
For railway installation:
(acc. to EN 50153 and/or EN 50121-
3-2)
1 x screw M4x5 and 1 x spring
washer, yellow/green grounding
cable with line cross section ≥ 1mm²
- Torque wrench
with Allen key adapter size 3
- Torque wrench M12
inclusive
For railway installation:
(acc. to EN 50153 and/or EN 50121-
3-2)
1 x screw M4x5 and 1 x spring
washer, yellow/green grounding
cable with line cross section ≥ 1 mm²
