44/74 IRMA MATRIX R2 CAN Installation manual
released

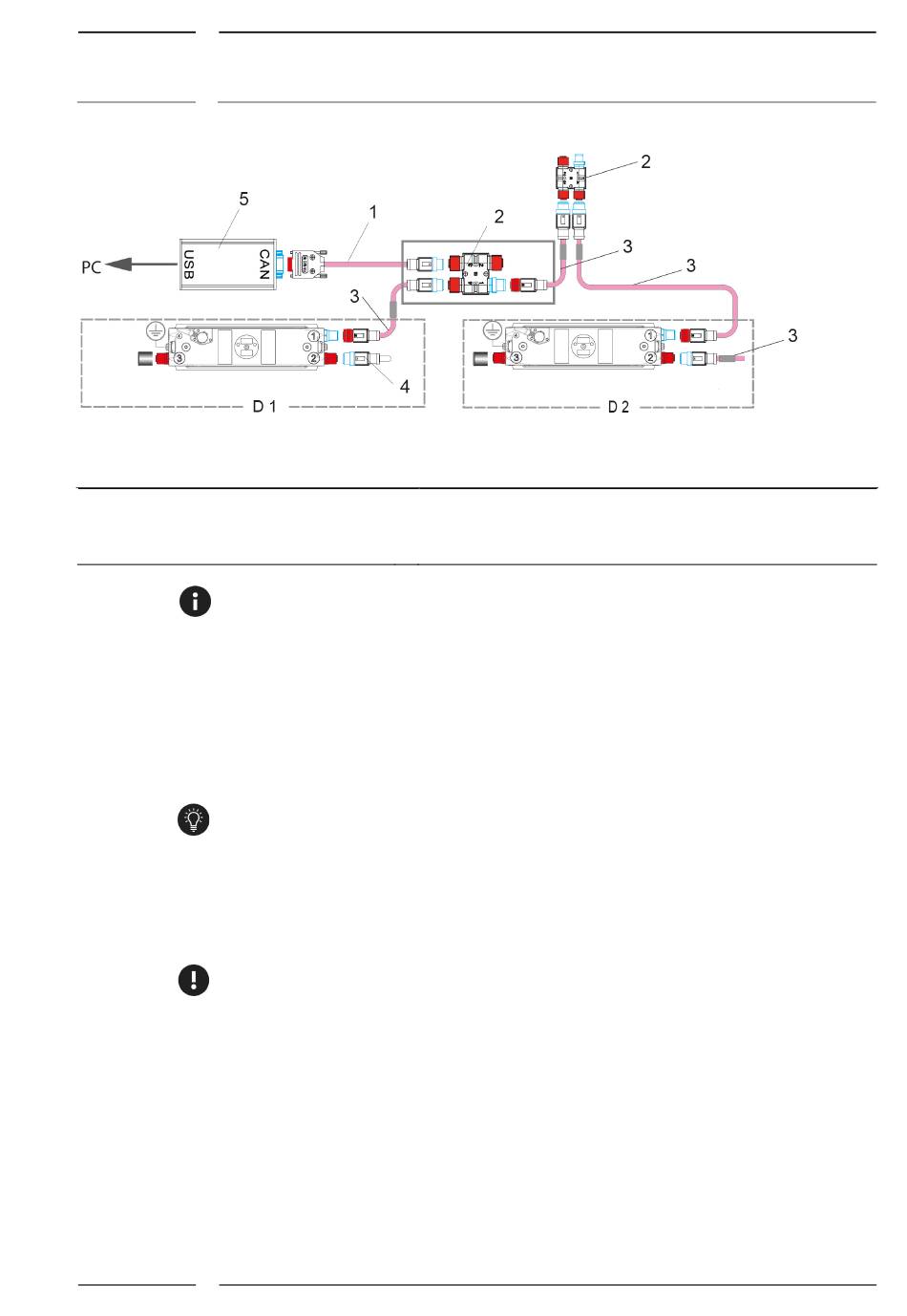

Fig. 24: Opening of the BUS with H coupler for
connection of the CAN-USB converter
1 SUB-D9-M12 adapter without terminator,
K-A21-M12CAN-oP-01-32cm
2 M12-H coupler of the CAN type, M12CAN-CON-03
A firmware update via CAN-USB converter takes up to 25 minutes for each sensor.
When a service PC is connected, the following servicing work is possible:
8.1.2

PC connection via Ethernet interface

A firmware update via Ethernet takes up to 2 to 5 minutes for each sensor.
When a service PC is connected, the following servicing work is possible:
The PC must be working in the same network as the sensors. For more
information please refer to the document "Starting KDBA_IRMA-MATRIX on the PC".
Rev. 1.6 2018-09
3 M12 extension cable of the CAN type, K-M12CAN-03-x
4 M12 termination connactor (m) of the CAN type, M12CAN-TR-02
5 CAN-USB converter
• Configuration, function test and firmware updates (see section 8.2, p. 47).
• Configuration, function test and firmware updates (see section 8.2, p. 47).
• Data recording and recording of 3D picture data during test rides (see section
10.2, p. 62)
