IRIS IRMA MATRIX 2 Installation Manual page 78

Index
Production status
Unit
mm (inch)
free size tolerances
DIN ISO 2768 mK
edge of workspace
DIN ISO 13715
12±0.5
Description of change
infrared & intelligent sensors
www.irisgmbh.de
Material
Discription

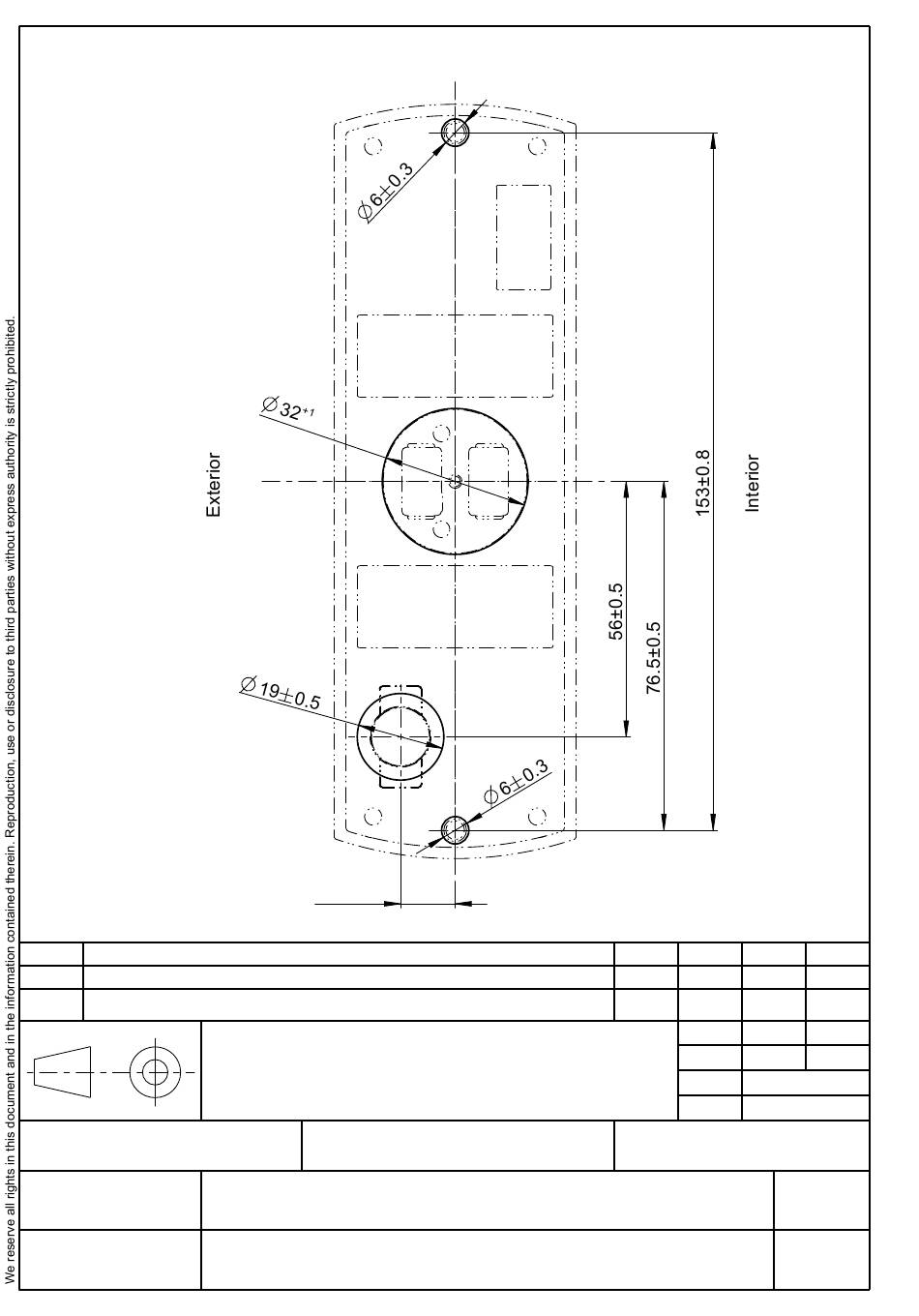

Drilling template IRMA MATRIX, Surface mount with door contact
Drawing-No.
BB_DIST500-A-DC
iris-GmbH
Date Editor Approved
Date
Creator 05.12.14
1 / 4
Page
iris-
Part-No.
Surface
Scale A4-Format
1:1
Index
00
Name
JP
