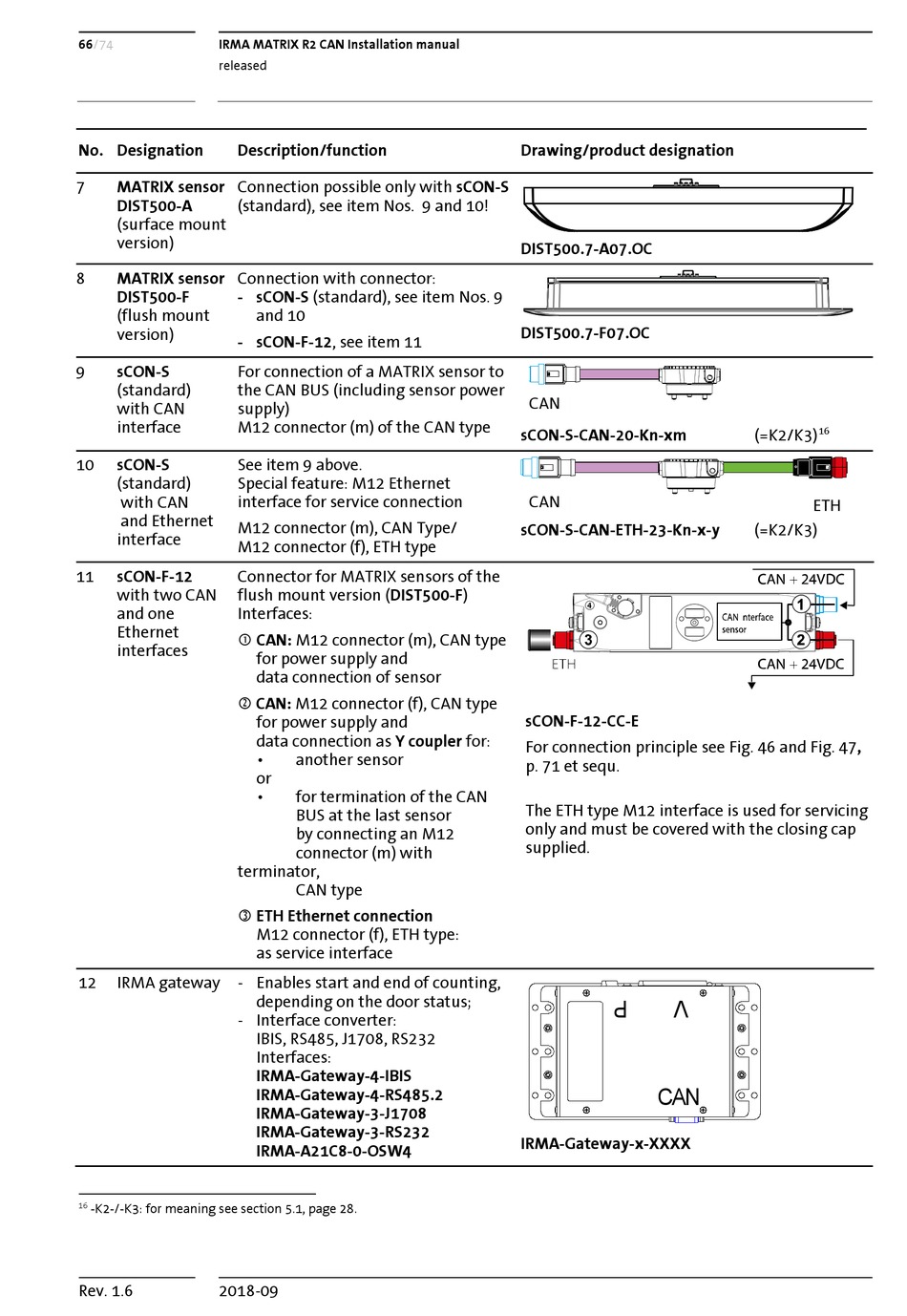

IRIS IRMA MATRIX 2 Installation Manual page 66

66/74 IRMA MATRIX R2 CAN Installation manual
released
No. Designation Description/function
7 MATRIX sensor Connection possible only with sCON-S
DIST500-A
(standard), see item Nos. 9 and 10!
(surface mount
version)
8 MATRIX sensor Connection with connector:
DIST500-F - sCON-S (standard), see item Nos. 9
(flush mount
version)
- sCON-F-12, see item 11
9 sCON-S For connection of a MATRIX sensor to
(standard) the CAN BUS (including sensor power
supply)
with CAN
interface M12 connector (m) of the CAN type
10 sCON-S See item 9 above.
(standard) Special feature: M12 Ethernet
with CAN interface for service connection
and Ethernet
M12 connector (m), CAN Type/
interface
M12 connector (f), ETH type
11 sCON-F-12 Connector for MATRIX sensors of the
with two CAN
flush mount version (DIST500-F)
and one Interfaces:
Ethernet
 CAN: M12 connector (m), CAN type
interfaces
 CAN: M12 connector (f), CAN type
terminator,
 ETH Ethernet connection
12 IRMA gateway - Enables start and end of counting,
- Interface converter:
16 -K2-/-K3: for meaning see section 5.1, page 28.
Rev. 1.6 2018-09
and 10
for power supply and
data connection of sensor
for power supply and
data connection as Y coupler for:
• another sensor
or
• for termination of the CAN
BUS at the last sensor
by connecting an M12
connector (m) with
CAN type
M12 connector (f), ETH type:
as service interface
depending on the door status;
IBIS, RS485, J1708, RS232
Interfaces:
IRMA-Gateway-4-IBIS
IRMA-Gateway-4-RS485.2
IRMA-Gateway-3-J1708
IRMA-Gateway-3-RS232
IRMA-A21C8-0-OSW4
Drawing/product designation
DIST500.7-A07.OC
DIST500.7-F07.OC
CAN
sCON-S-CAN-20-Kn-xm
CAN
sCON-S-CAN-ETH-23-Kn-x-y
sCON-F-12-CC-E
For connection principle see Fig. 46 and Fig. 47,
p. 71 et sequ.
The ETH type M12 interface is used for servicing
only and must be covered with the closing cap
supplied.
CAN
IRMA-Gateway-x-XXXX
16
(=K2/K3)
ETH
(=K2/K3)
