57/74 IRMA MATRIX R2 CAN Installation manual
released

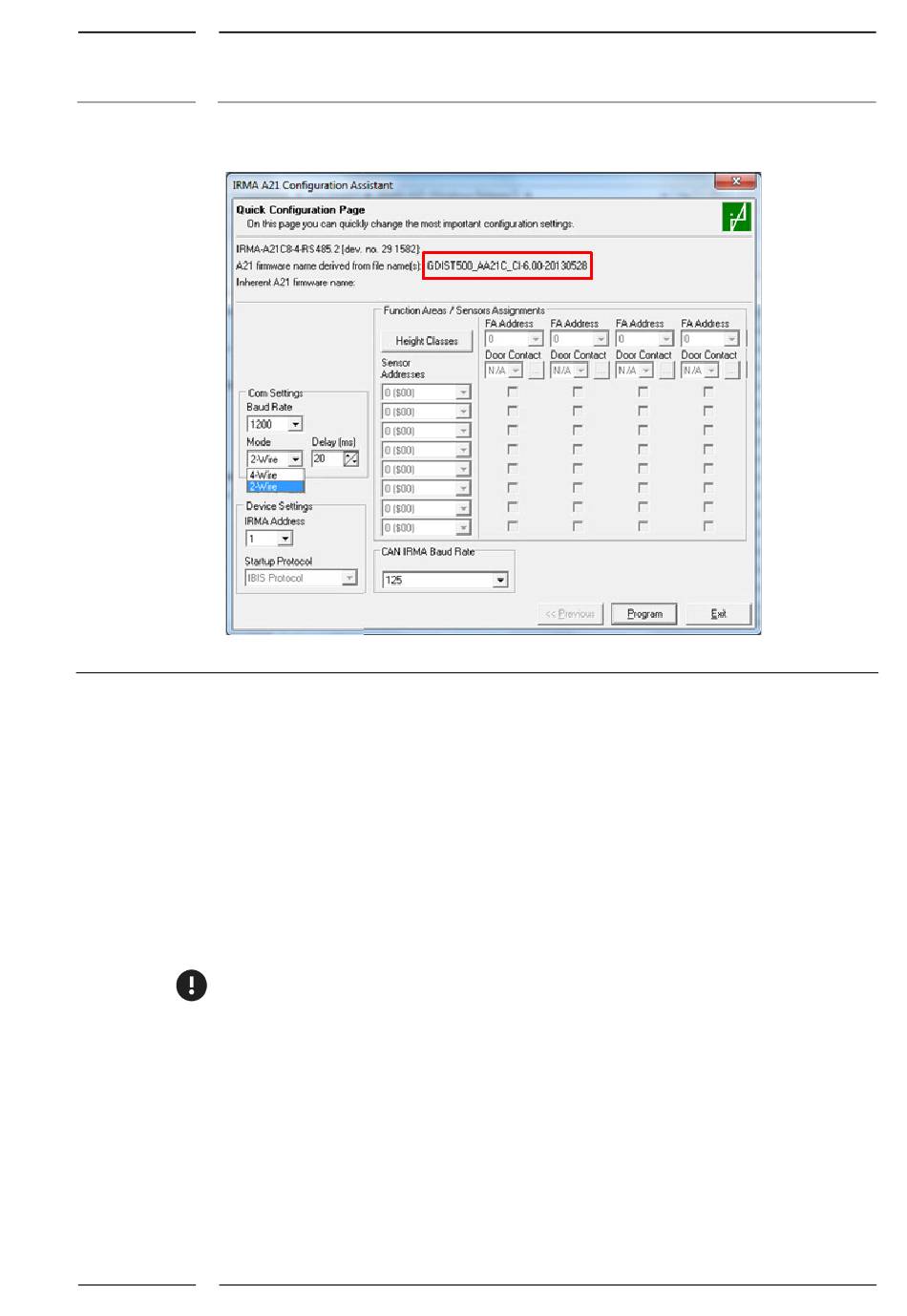

Fig. 41: Configuration menu for IRMA gateway
• The active firmware of the IRMA gateway is shown (red marking).
• The following parameters can be set:
• "Baud Rate": suitable for the protocol (for IBIS=1200 bps/for J1708=9600 bps)
• 2 wire or 4 wire mode
"Mode" = "2 Wire" for IRMA gateway of the type: IRMA-Gateway-4-RS485.2
"Mode" = "4 Wire" for IRMA gateway of the type: IRMA-Gateway-4-RS485
• "Delay (ms)" Delay
• "Device Settings" If two or more IRMA gateways are used
(n IRMA gateways) the "IRMA Address" is entered: 1, 2, ... n.
The "CAN IRMA BAUD RATE" setting must not be changed!
• Click on "Program" to confirm the changed parameters.
Rev. 1.6 2018-09
