24/74 IRMA MATRIX R2 CAN Installation manual
released

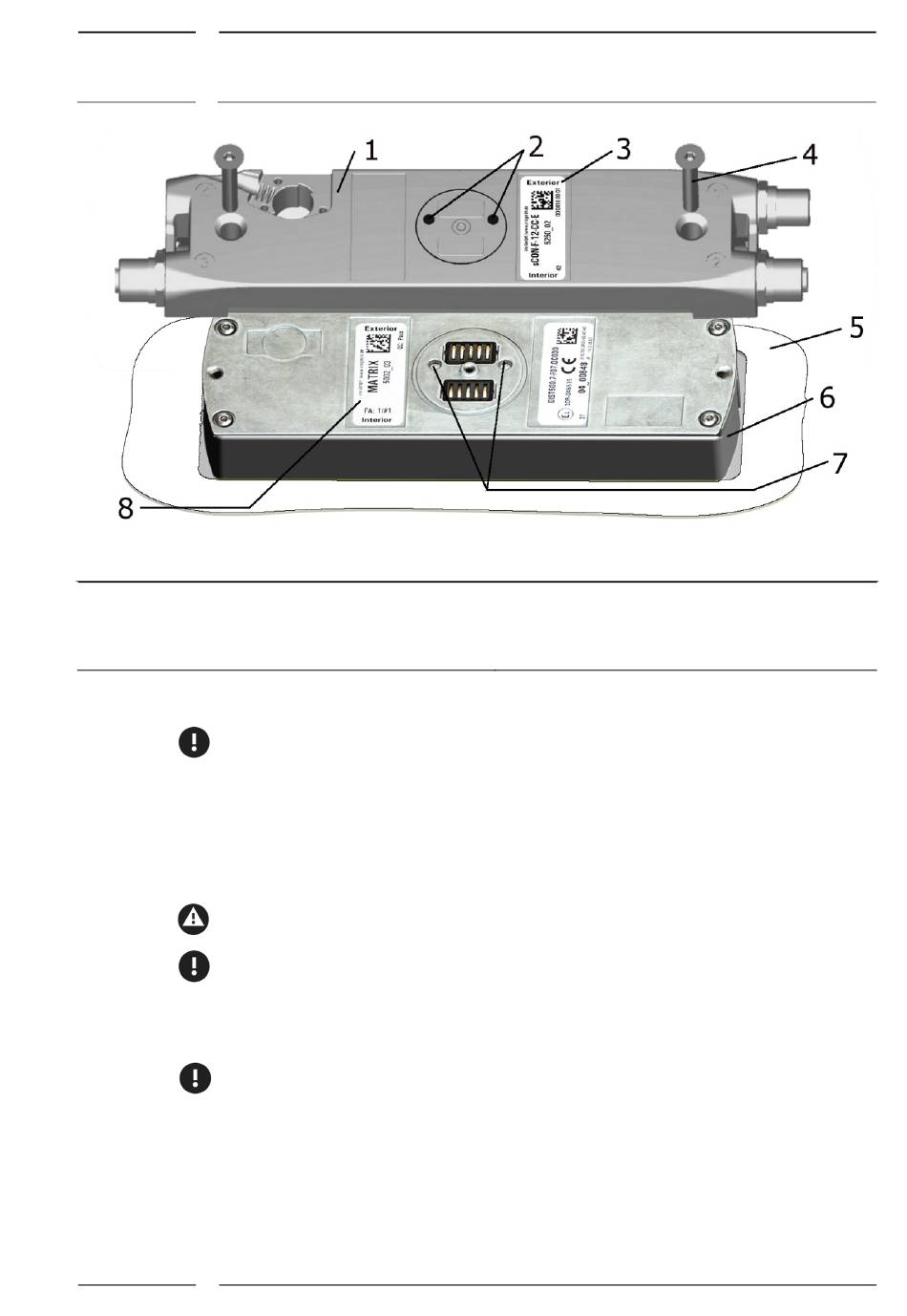

Fig. 14: sCON-F-12 - positioning and adjustment
1 sCON-F-12
2 Marking: position of the guiding pins on the bottom side
3 Label indicating the orientation Exterior/Interior (sCON-F-12)
4 Countersunk head screws (hexagon socket, size 3)
4. The sCON-F-12 is placed onto the sensor.
Ensure the correct orientation relative to the sensor. The markings on the upper side of the
sCON-F-12 in item (2) of Fig. 14 must correspond with the orientation of the guiding holes
on the rear of the sensor (7). The left-hand label on the sensor (8) must face in the same
direction "Exterior" and "Interior" as the label on the sCON upper side in item (3).
5. Then insert the countersunk head screws and tighten them manually.
6. Now tighten the two screws alternatingly step by step, using an Allen key (size 3).
The maximum tightening torque for the countersunk head screws must not exceed 3 Nm.
If the sensor is installed in color-coated metal coves, it must be ensured that the
connection between sensor housing and cove is conductive.
If the sensor is installed in plastics coves, an additional grounding cable must be installed
between the sensor housing and the chassis (see section 5.3, p. 29).
The leaf springs on the sCON-F-12 are overstretched in the mounted condition and will not
flex back into their original shape. If the connector is to be used several times, it must be
ensured that it is used only for coves of identical or greater thickness. The leaf springs of
the sCON-F-12 can be replaced. A set of leaf springs for replacement is available as an
accessory. Newly fitted leaf springs can be installed in coves of any thickness up to a
maximum of 8 mm.
Rev. 1.6 2018-09
5 Cove
6 MATRIX sensor DIST500-F (flush mount version)
7 Guiding holes on the sCON connection (rear of the sensor)
8 Label indicating the orientation Exterior/Interior (sensor)
