17/74 IRMA MATRIX R2 CAN Installation manual
released
4

Mounting

4.1

Mounting of the sensor

4.1.1

Selection of the connector version

The sCON (connector for sensors) was developed particularly for IRMA MATRIX sensors for
the connection to the power supply and data transmission units.
Depending on the sensor variant, different sCON variants are available, differing in their
geometry and function:
• The sCON-S (standard) provides for the electrical connection of IRMA MATRIX sensors.
• The shape of the sCON-F-12 is flat and adapted to the sensor geometry which allows
The differences in the required installation depth due to the use of different
sensor/connector combinations are show in section 12.1.2 on p. 64.
Please note the sensor/connector combinations possible. See overview in Table 3.

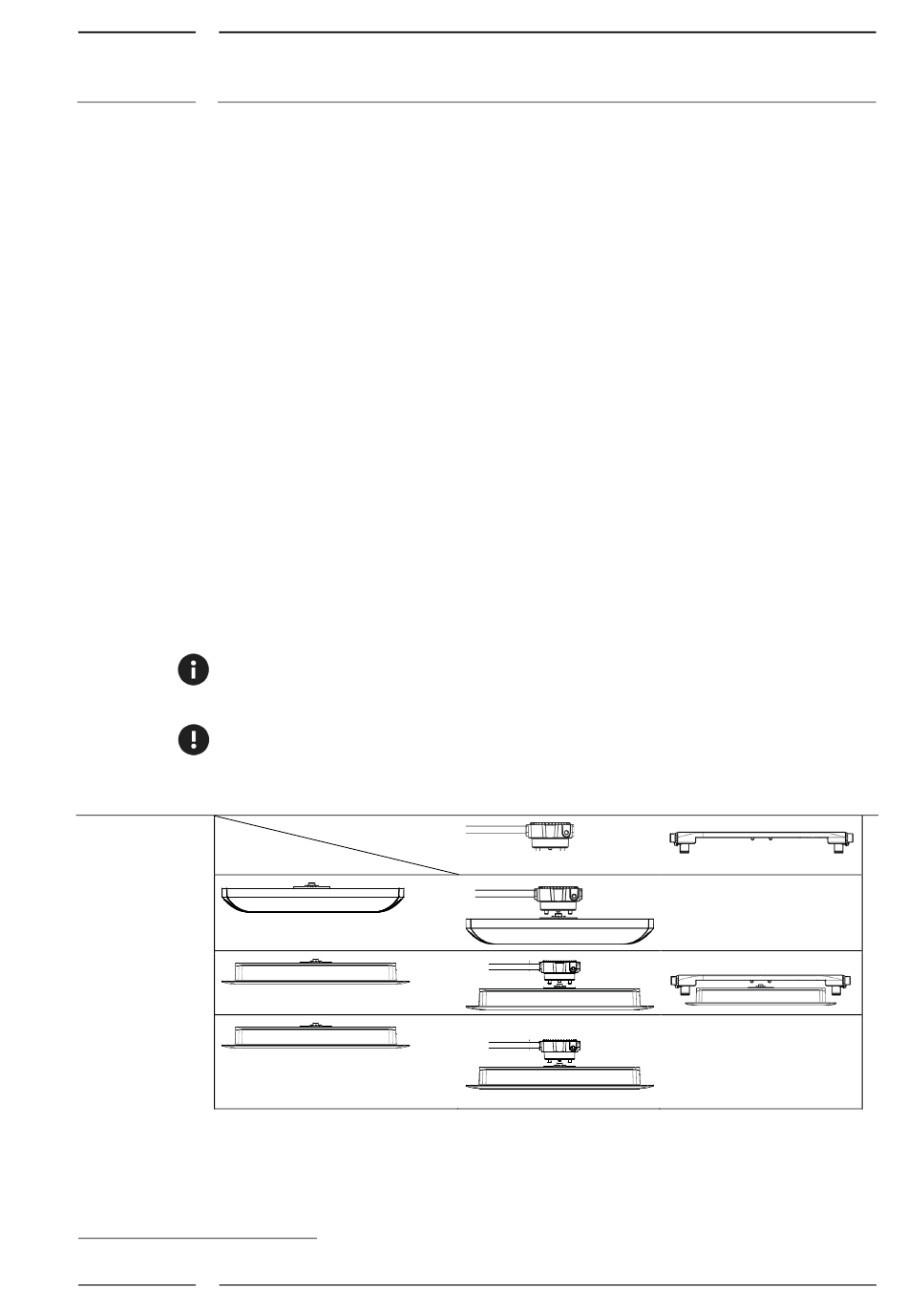

Table 3: Possible combinations of sensor and sCON version
Sensor version
DIST500-A in the surface mount version
DIST500-F in the flush mount version
DIST500-F in the flush mount version;
mounted in installation situations such
as in vehicle-specific sensor supports
2
A cove is a paneling in the vehicle, here in particular above the door, into which the sensor is to be fitted.
Rev. 1.6 2018-09
It can be used for all IRMA MATRIX sensor versions. The sensor interfaces are routed
outwards in the form of connecting lines with M12 connectors.
the housing to simultaneously provide for mounting and electrical connection of the
sensors. This shape permits a reduction of the required installation depth behind the
2
cove . The sCON-F-12 is equipped with interfaces in the form of M12 connectors.
Connector version
sCON-S (standard)
sCON-F-12
No
No
