65/74 IRMA MATRIX R2 CAN Installation manual
released
12.2

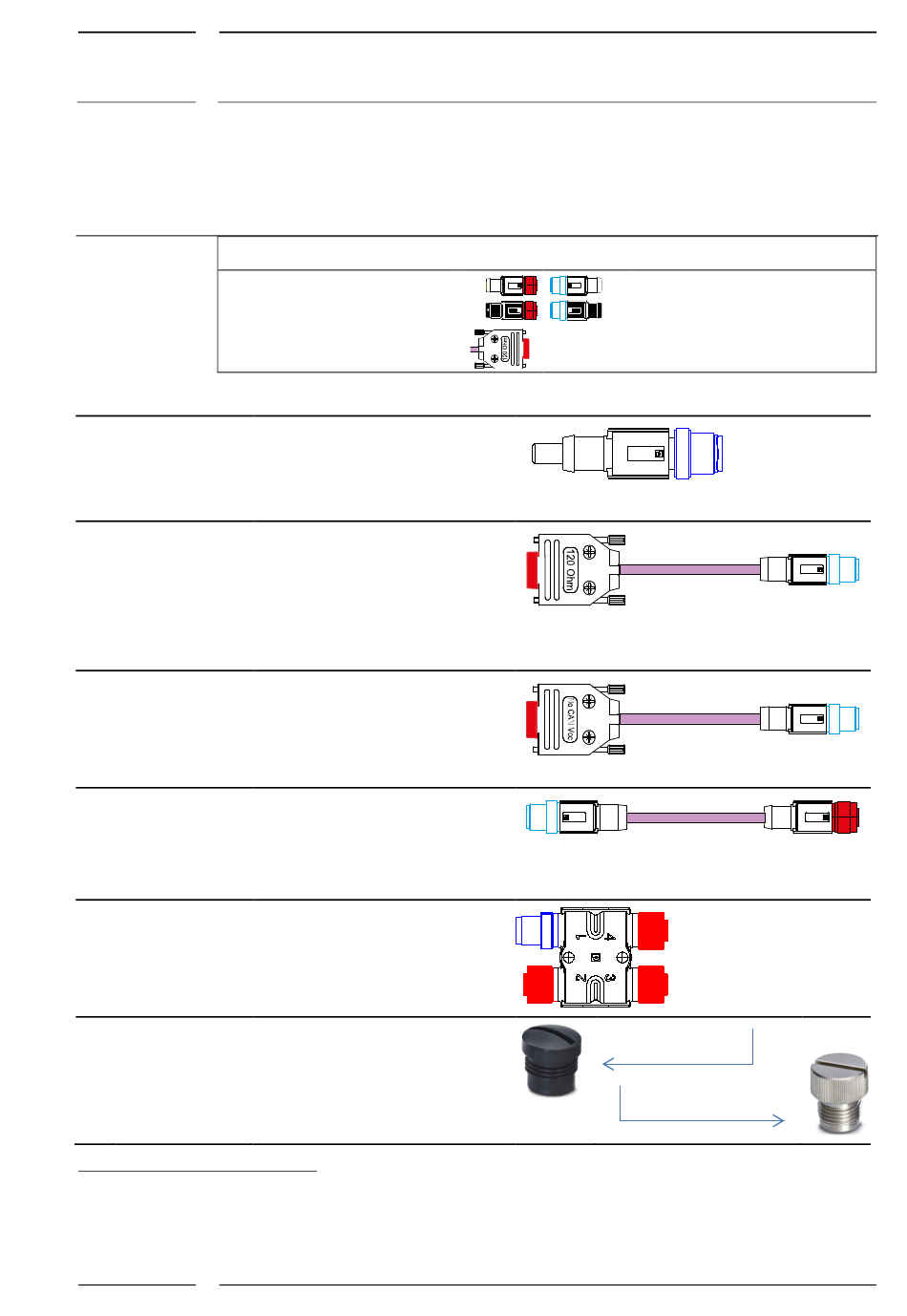

Components for IRMA MATRIX Sensors on CAN BUS

Table 14: Overview of the IRMA components on CAN BUS
Connector (f) type
M12 connector (f), CAN type
M12 connector (f), ETH type
SUB-D9 connector (f), 9 pole
No. Designation
1 M12 connector
(m) CAN type with
terminator
2 Adaptor cable
SUB-D9/M12
with terminator
3 Adaptor cable
SUB-D9/M12
without
terminator
4 M12 CAN cable
5 H coupler;
M12 connector,
CAN type
6 M12 screw plug
plastics
or metal
13
For the definition of CAN type connectors see section 1.3.1
14
For the definition of ETH type connectors see section 1.3.2, page 9.
15 -K2-/-K3: for meaning see section 5.1.
Rev. 1.6 2018-09
13
:
14
:
Description/function
The connector forms the
termination of the CAN BUS with a
resistance of 120 ohms on an H
coupler or at the connection at the
last sensor with sCON-F-12.
CAN type adapter cable with
terminator for connection to the
IRMA gateway at the beginning of
the CAN BUS
SUB-D9 connector (f with 120
ohms)/
M12 connector (m), CAN type
Adapter, CAN cable
for connection to the IRMA
gateway
SUB-D9 connector (f)/
M12 connector (m), CAN type
M12 extension cable, CAN type,
connects the coupler and the
sensors
M12 connector (m), CAN type/M12
connector (f), CAN Type
The H coupler ensures branchings
(branch lines) of up to 2 CAN BUS
devices per coupler.
M12 connector (m), CAN Type -->
3 x M12 connector (f), CAN Type
For closing unused M12 connectors
of M12 H couplers
Symbol Symbol Connector (m) type
M12 connector (m), CAN type
M12 connector (m), ETH type
Drawing/product designation
M12CAN-TR-02
K-A21-M12CAN-TRoP-XX-32cm (=K2/K3)
K-A21-M12CAN-oP-01-32cm
K-M12CAN-XX-xm
M12CAN-CON-08
(plastics)
M12CAN-CON-04
(metal)
15
(=K2)
(=K2/K3)
M12CAN-CON-03
