Fig. 36: Sector "Vehicle Edge Offset; Fig. 37: Sector "Rotation Angle X - IRIS IRMA MATRIX 2 Installation Manual

53/74 IRMA MATRIX R2 CAN Installation manual
released
marker.
Measure the difference in height between the vehicle edge and the adhesive marking and
•
•

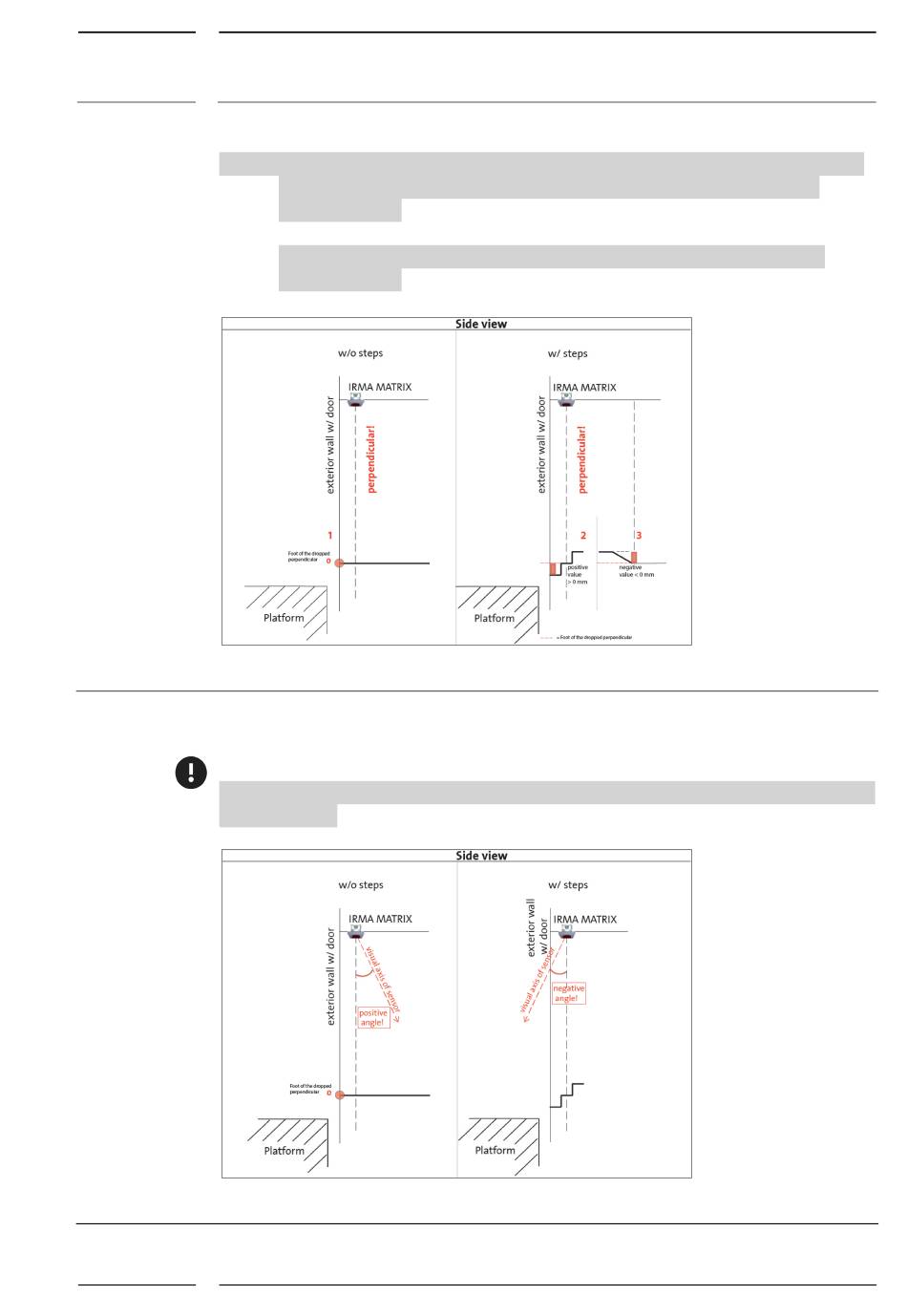

Fig. 36: Sector "Vehicle Edge Offset"
"Rotation Angle X"- is the inclination angle of the sensor around the X axis when the
vehicle is stationary on a level plane. Sensors directed towards the inside have a positive
angle. This angle must not be > 5°; otherwise the counting accuracy is reduced.
Measure the sensor's angle of rotation (e.g. using a suitable smartphone app) and enter the
value measured.
Fig. 37: Sector "Rotation Angle X"
Rev. 1.6 2018-09
set the measured value as positive (> 0 mm) if the vehicle edge is below the
adhesive marker.
set the measured value as negative (< 0 mm) if the vehicle edge is above the
adhesive marker.
