30/74 IRMA MATRIX R2 CAN Installation manual
released
5.3.1 Connection of the grounding cable to the sCON-S
(standard)
The sCON-S housing is equipped with two M4 threaded holes arranged diagonally for
attaching the grounding cable. The cable is attached to the sCON housing using a crimped
eyelet, a screw (M4x5) and a serrated washer in the position shown in Fig. 19. The other
end of the cable is connected to the chassis potential in a suitable point with a conductive
connection.
The connection components are not part of the standard delivery and must be provided
before the start of mounting.

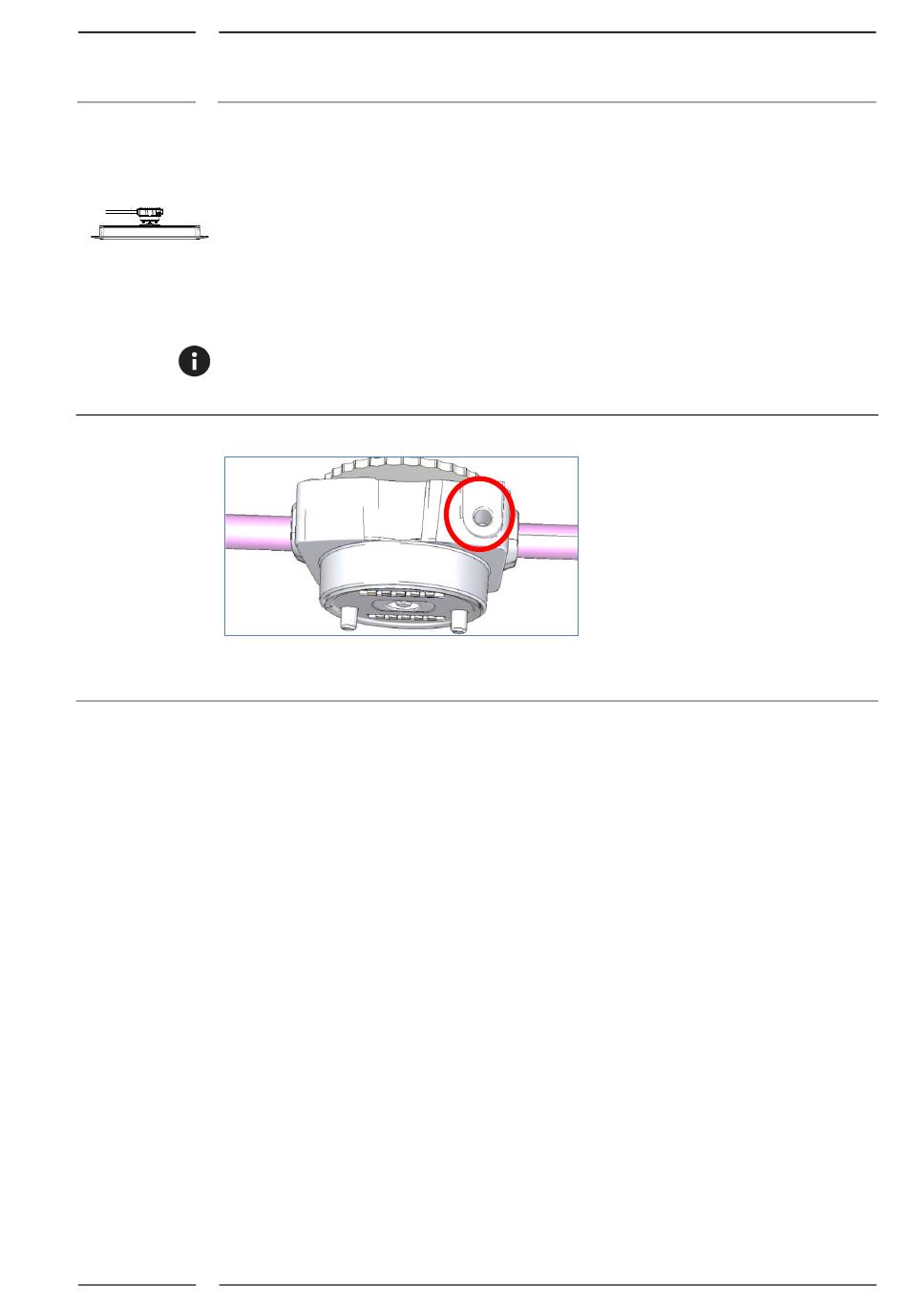

Fig. 19: sCON-S (standard): Threaded hole for attaching the grounding cable
Rev. 1.6 2018-09
