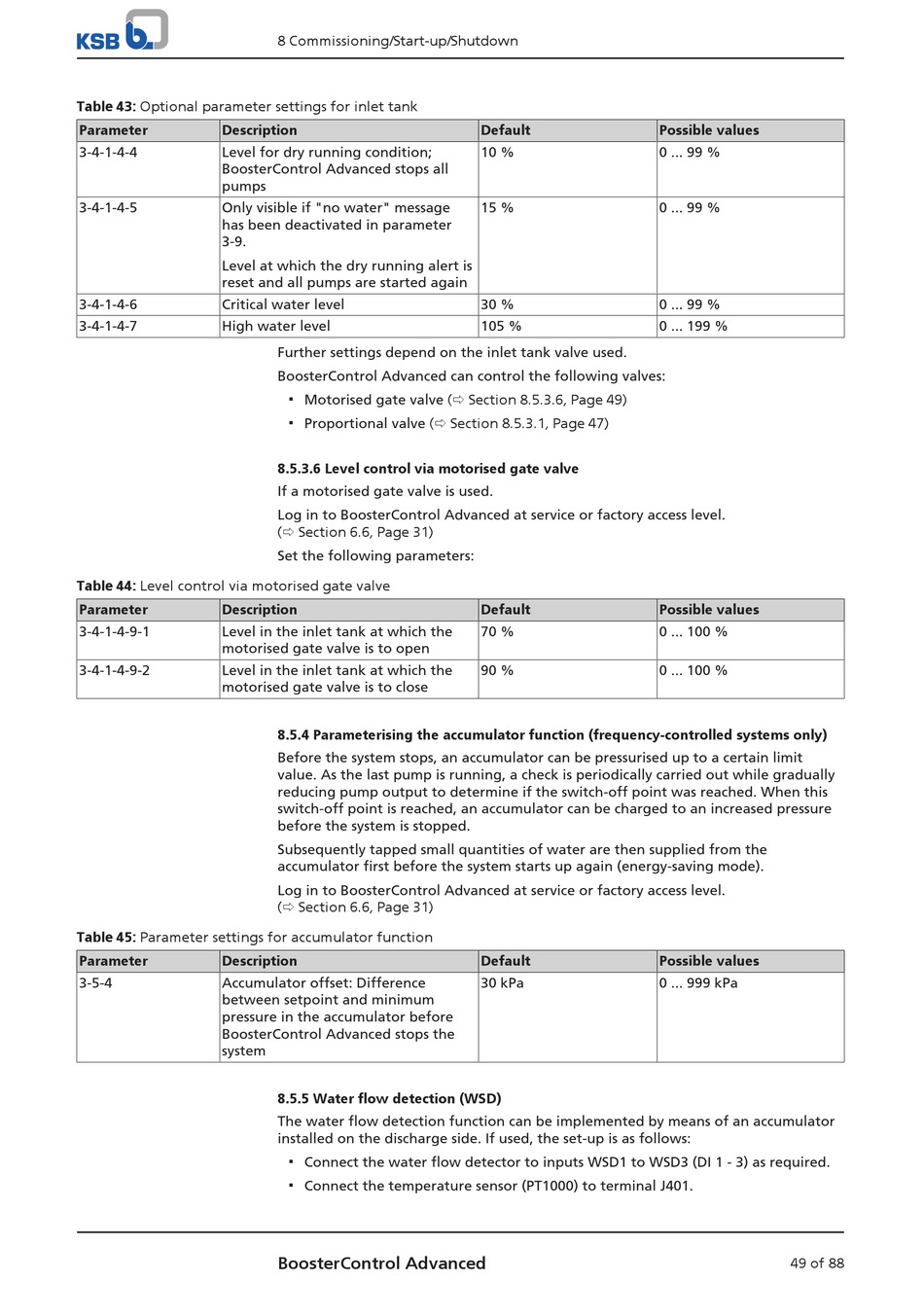

Table 43: Optional parameter settings for inlet tank
Parameter Description
3-4-1-4-4 Level for dry running condition;
BoosterControl Advanced stops all
pumps
3-4-1-4-5 Only visible if "no water" message
has been deactivated in parameter
3-9.
Level at which the dry running alert is
reset and all pumps are started again
3-4-1-4-6 Critical water level
3-4-1-4-7 High water level
Table 44: Level control via motorised gate valve
Parameter Description
3-4-1-4-9-1 Level in the inlet tank at which the
motorised gate valve is to open
3-4-1-4-9-2 Level in the inlet tank at which the
motorised gate valve is to close
Table 45: Parameter settings for accumulator function
Parameter Description
3-5-4 Accumulator offset: Difference
between setpoint and minimum
pressure in the accumulator before
BoosterControl Advanced stops the
system
8 Commissioning/Start-up/Shutdown
Further settings depend on the inlet tank valve used.
BoosterControl Advanced can control the following valves:
▪ Motorised gate valve (ð Section 8.5.3.6, Page 49)
▪ Proportional valve (ð Section 8.5.3.1, Page 47)
8.5.3.6 Level control via motorised gate valve
If a motorised gate valve is used.
Log in to BoosterControl Advanced at service or factory access level.
(ð Section 6.6, Page 31)
Set the following parameters:

8.5.4 Parameterising the accumulator function (frequency-controlled systems only)

Before the system stops, an accumulator can be pressurised up to a certain limit
value. As the last pump is running, a check is periodically carried out while gradually
reducing pump output to determine if the switch-off point was reached. When this
switch-off point is reached, an accumulator can be charged to an increased pressure
before the system is stopped.
Subsequently tapped small quantities of water are then supplied from the
accumulator first before the system starts up again (energy-saving mode).
Log in to BoosterControl Advanced at service or factory access level.
(ð Section 6.6, Page 31)

8.5.5 Water flow detection (WSD)

The water flow detection function can be implemented by means of an accumulator
installed on the discharge side. If used, the set-up is as follows:
▪ Connect the water flow detector to inputs WSD1 to WSD3 (DI 1 - 3) as required.
▪ Connect the temperature sensor (PT1000) to terminal J401.
BoosterControl Advanced
Default
10 %
15 %
30 %
105 %
Default
70 %
90 %
Default
30 kPa
Possible values
0 ... 99 %
0 ... 99 %
0 ... 99 %
0 ... 199 %
Possible values
0 ... 100 %
0 ... 100 %
Possible values
0 ... 999 kPa
