6 Operation
Key Function
OK key:
OK
Help key:
?

6.2 Operating the device via the service interface

Connection to the service interface can be established in two ways:
▪ Via a connector at the rear
▪ Via a connector on the control panel

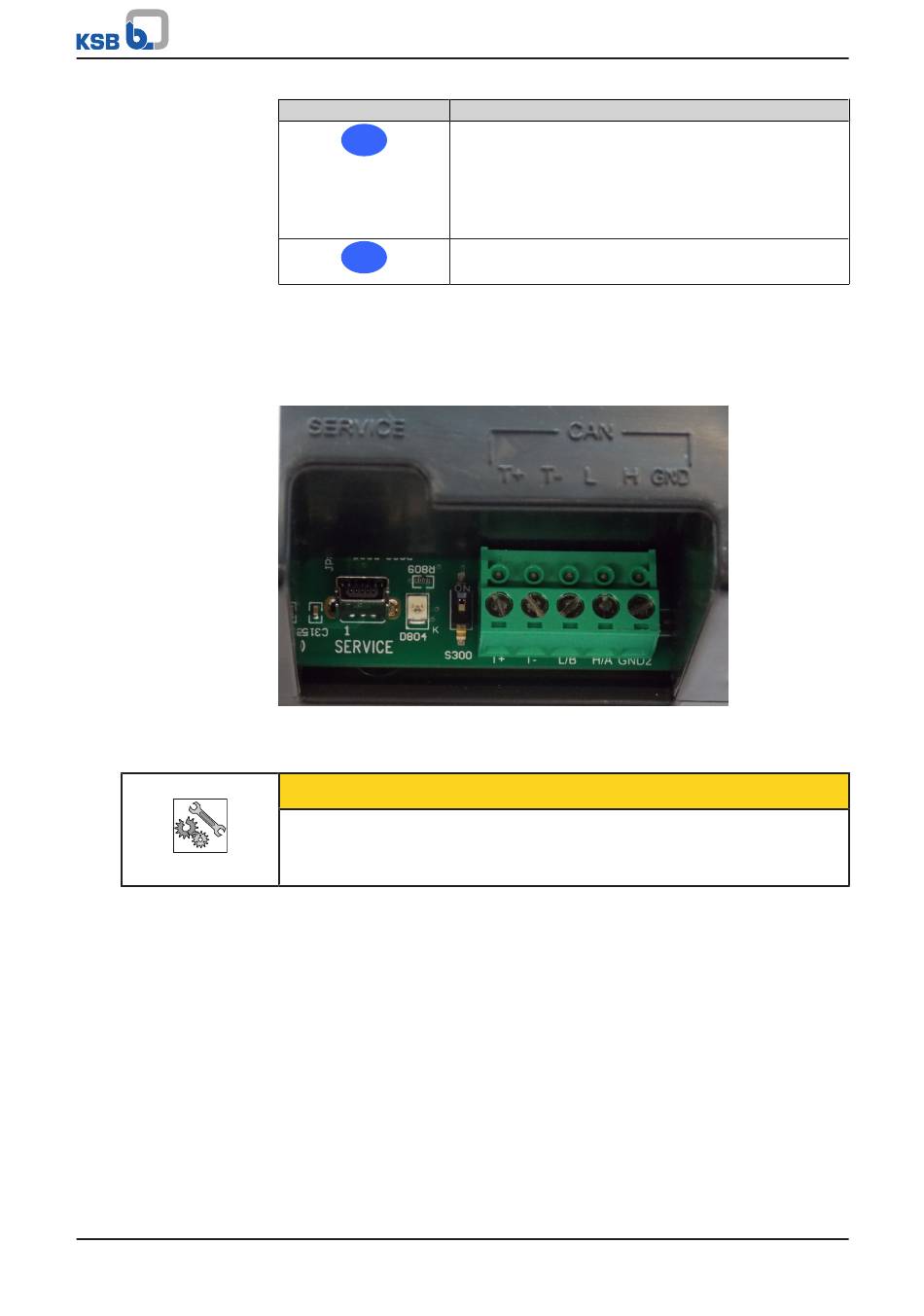

Fig. 6: Service interface at the rear
For details, please refer to the user manual of the "ServiceTool for BoosterControl"
Advanced.
CAUTION
Improper use of service interface
Damage to connected laptop/PC!
▷ Only use the connection cable offered by KSB (USB - RS232).
The service interface allows a PC/notebook to be connected via a special cable (USB -
RS232).
The following actions can be taken:
▪ Configuring and parameterising BoosterControl Advanced using the KSB service
software
▪ Software update
▪ Saving and documenting set parameters
The hardware protection (dongle) must be connected to enable the authorisation
level. Observe the service tool instructions.

6.3 Operating the device via the control panel

6.3.1 Displaying and changing parameters

The parameter number also serves as the navigation path.
The first digit of the parameter number indicates one of the following menus:
BoosterControl Advanced
▪ Confirm settings.
▪ Confirm menu selection.
▪ Move to the next digit when entering numerals.
▪ Alert reset
▪ Displays a help text for each selected menu option.
