Table 13: Description of graphical display
Item Description
1 Parameter
2 Parameter name
3 Current display
4 Messages/alerts
5 Model
6 Date/time
22 of 88
6 Operation
1
3-5-1
2
Set point
3
3.52
4
Leakage

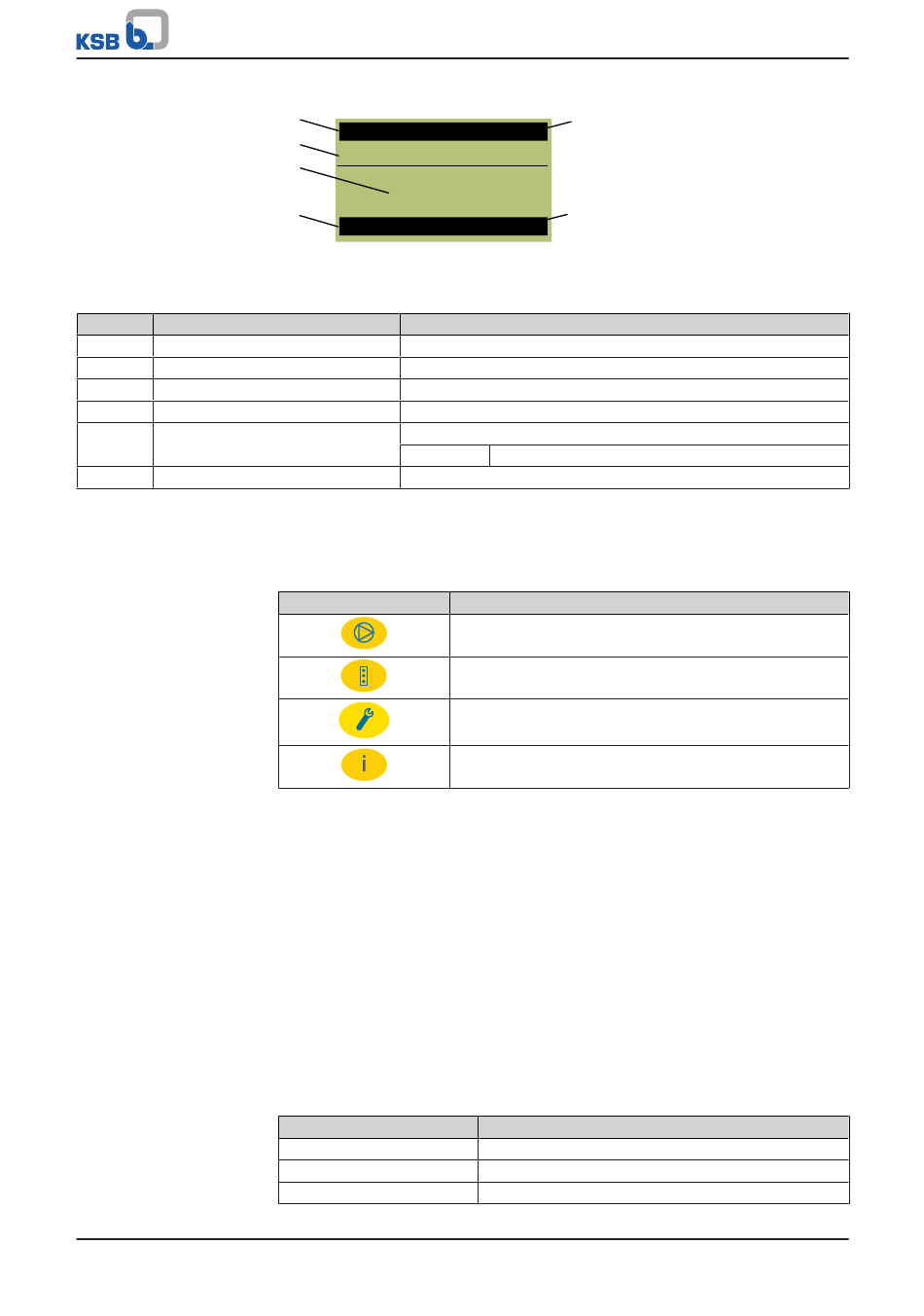

Fig. 5: Graphical display (example)
Shows the parameter selected
Displays the name of the parameter selected
Displays the current values for the parameter selected
Displays current warning and fault messages
Displays model
BC
Displays current date and time
6.1.3 Menu keys
You can use the menu keys to access the elements at the first menu level directly.
Table 14: Assignment of menu keys
Key Menu
Operation
Diagnosis
Settings
Information
6.1.3.1 Menu: Operation
The Operation section contains all information required for operating the machine
and the process. This includes important process data (pressure, flow rate, etc.) as
well as current process states (input/output states).
The decision regarding which parameters are displayed on the main screen can be
influenced by a user who has the appropriate authorisation. The parameters to be
displayed on the main screen can be selected in the Settings menu.
6.1.3.1.1 Operating values in the start menu
A start menu can be called from the start screen following the boot procedure.
Press "OK" key when on the start screen.
The following parameters are displayed:
Table 15: Parameters in start menu (depending on operating mode; here, Cascade
operating mode)
Parameter
3-2-1-1
3-5-1
3-5-3
BoosterControl Advanced
5
BC
bar
6
12-06 12:37
Description
= BoosterControl
Value
PIN
Setpoint
Bandwidth
