4 Description

4 Description

4.1 General description

▪ Control unit for pressure booster systems
With BoosterControl Advanced, up to 3 or 6 pump sets can be started, stopped and
controlled as a function of pressure.

4.2 Designation

Example: BCA 6
Table 5: Key to the designation
Code Description
BCA BoosterControl Advanced
6 Number of pumps that can be connected

4.3 Name plate

1
2
BoosterControl 1.5 - 3P
3
P/N 01464675
4
S/N 010201211290018
Date 29-11-2012
Made in EU
5
6
230VAC
50/60Hz
7 8

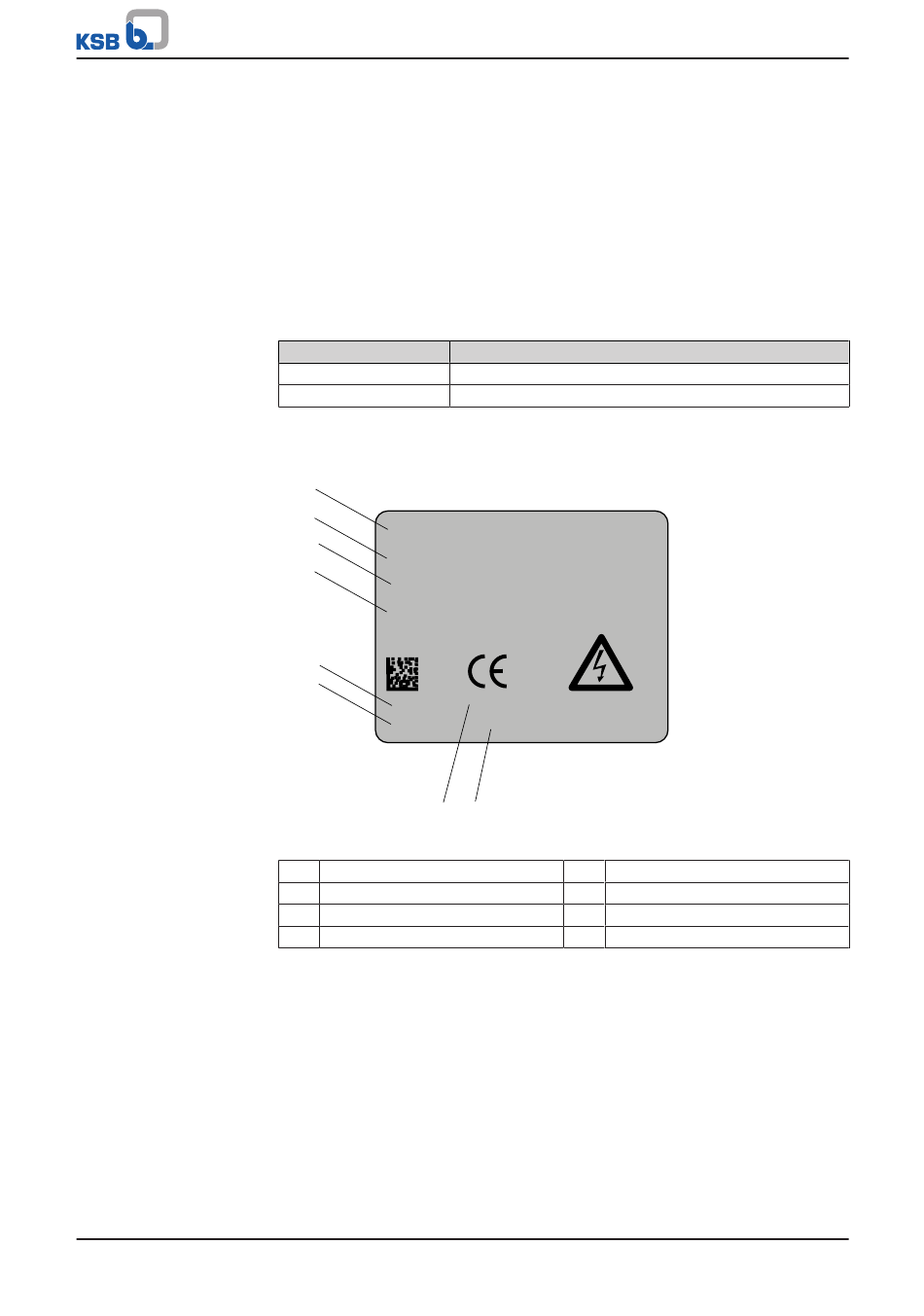

Fig. 1: Name plate (example)
1 Type series, size
3 Series number
5 Input voltage
7 Enclosure

4.4 Functions

The following functions, among others, are possible:
▪ Even distribution of operating hours among the pumps connected
▪ Automatic pump changeover
– as a function of operating hours
– in the case of a pump fault
▪ Pump starting and stopping in line with demand
▪ Functional check run
▪ Control of an inlet tank valve (for corresponding system configuration)
BoosterControl Advanced
IP20 Warning!!!
High voltage
15W
2 Ident. number
4 Year of construction
6 Mains frequency
8 Power input
