Table 32: Parameter settings for control with several frequency inverters
Parameter Description
3-2-2-6 Operating mode
3-3-1 Number of pumps connected
BoosterControl Advanced reboots; observe notes
3-4-2-3 Number of pumps started up in the event of a sensor
failure on the discharge side
8 Commissioning/Start-up/Shutdown

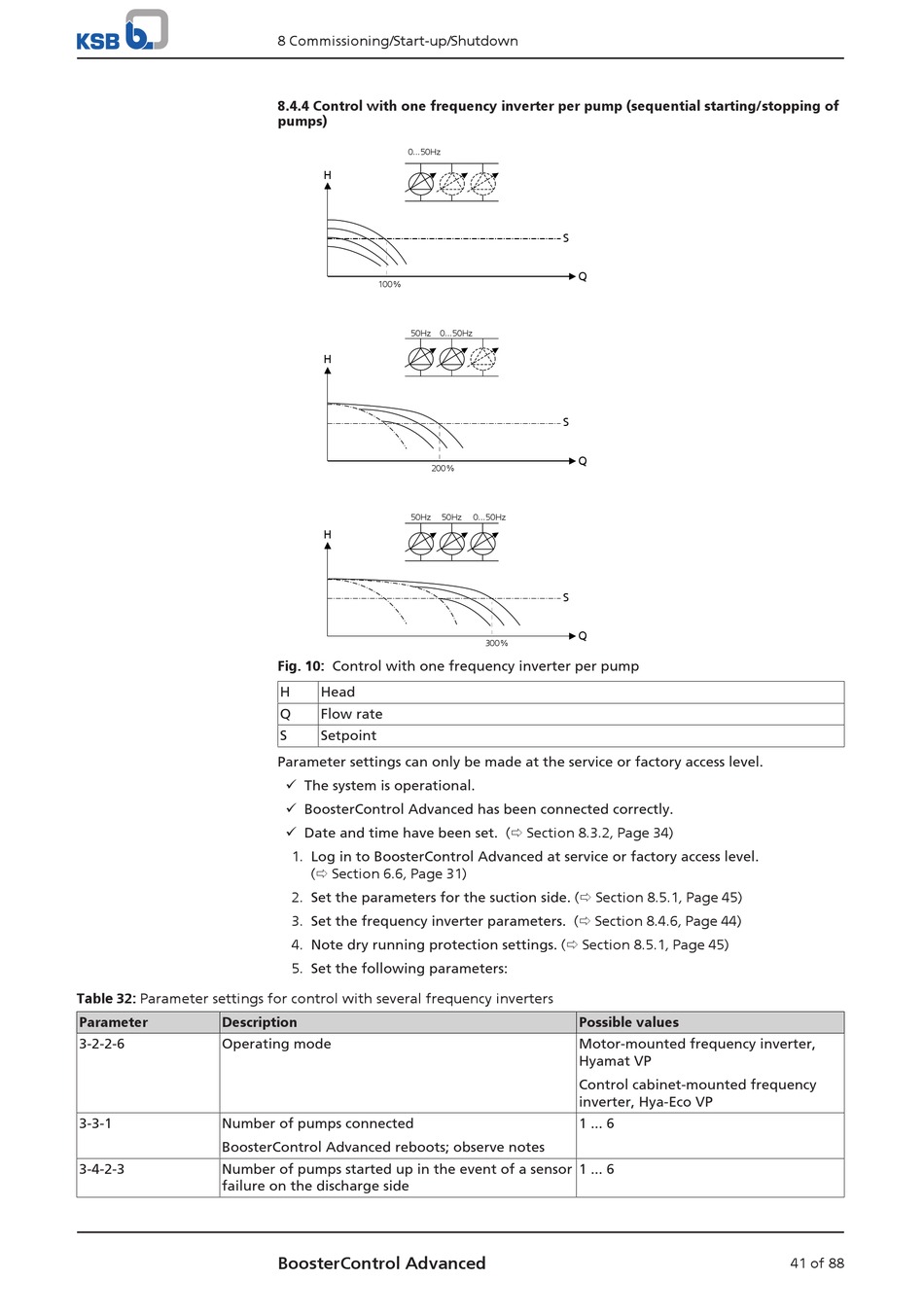

8.4.4 Control with one frequency inverter per pump (sequential starting/stopping of
pumps)
0...50Hz
H
100%
50Hz 0...50Hz
H
200%
50Hz 50Hz
H
Fig. 10: Control with one frequency inverter per pump
H Head
Q Flow rate
S Setpoint
Parameter settings can only be made at the service or factory access level.
ü The system is operational.
ü BoosterControl Advanced has been connected correctly.
ü Date and time have been set. (ð Section 8.3.2, Page 34)
1. Log in to BoosterControl Advanced at service or factory access level.
(ð Section 6.6, Page 31)
2. Set the parameters for the suction side. (ð Section 8.5.1, Page 45)
3. Set the frequency inverter parameters. (ð Section 8.4.6, Page 44)
4. Note dry running protection settings. (ð Section 8.5.1, Page 45)
5. Set the following parameters:
BoosterControl Advanced
S
Q
S
Q
0...50Hz
S
Q
300%
Possible values
Motor-mounted frequency inverter,
Hyamat VP
Control cabinet-mounted frequency
inverter, Hya-Eco VP
1 ... 6
1 ... 6
