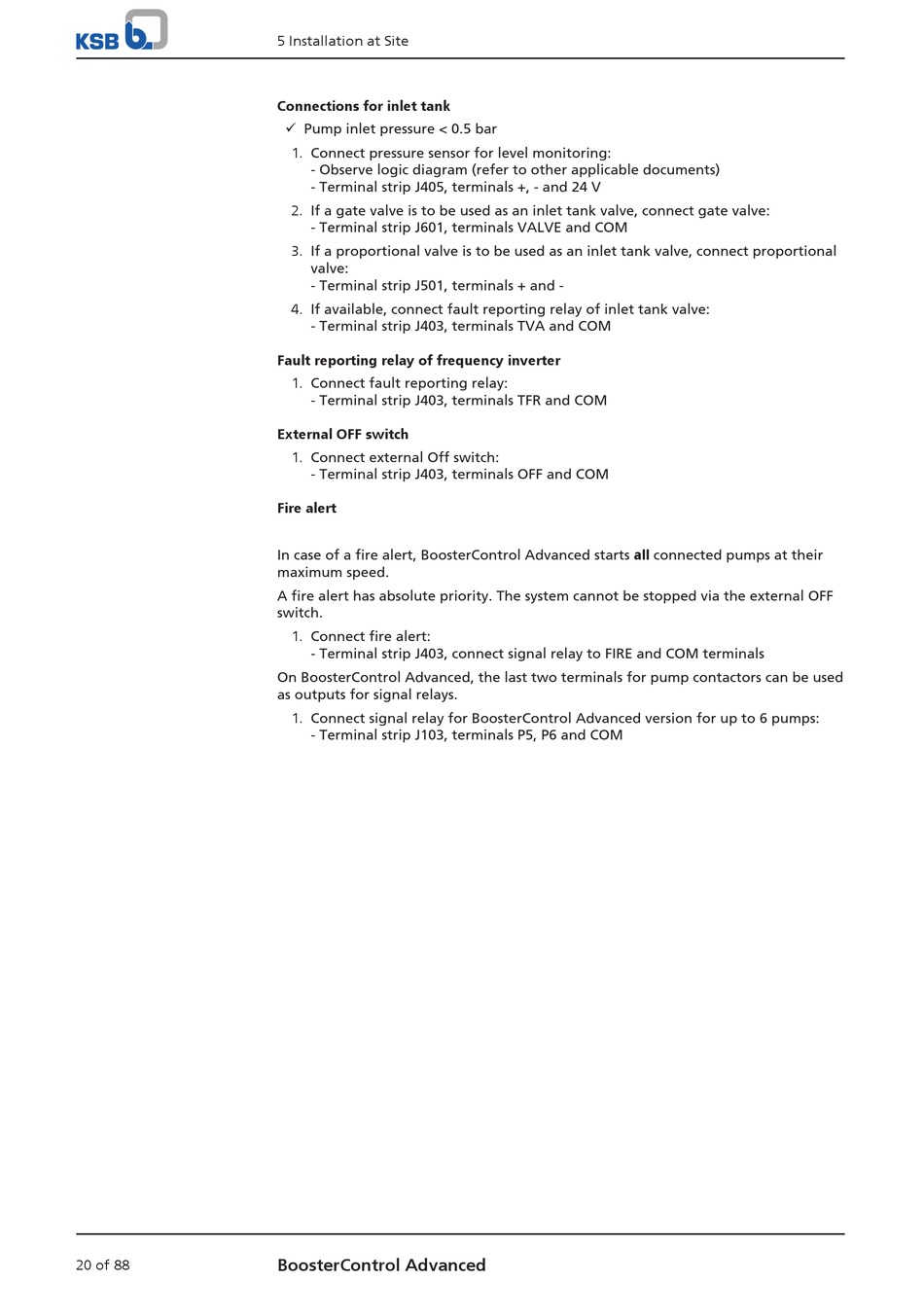

20 of 88
5 Installation at Site
Connections for inlet tank
ü Pump inlet pressure < 0.5 bar
1. Connect pressure sensor for level monitoring:
- Observe logic diagram (refer to other applicable documents)
- Terminal strip J405, terminals +, - and 24 V
2. If a gate valve is to be used as an inlet tank valve, connect gate valve:
- Terminal strip J601, terminals VALVE and COM
3. If a proportional valve is to be used as an inlet tank valve, connect proportional
valve:
- Terminal strip J501, terminals + and -
4. If available, connect fault reporting relay of inlet tank valve:
- Terminal strip J403, terminals TVA and COM
Fault reporting relay of frequency inverter
1. Connect fault reporting relay:
- Terminal strip J403, terminals TFR and COM
External OFF switch
1. Connect external Off switch:
- Terminal strip J403, terminals OFF and COM
Fire alert
In case of a fire alert, BoosterControl Advanced starts all connected pumps at their
maximum speed.
A fire alert has absolute priority. The system cannot be stopped via the external OFF
switch.
1. Connect fire alert:
- Terminal strip J403, connect signal relay to FIRE and COM terminals
On BoosterControl Advanced, the last two terminals for pump contactors can be used
as outputs for signal relays.
1. Connect signal relay for BoosterControl Advanced version for up to 6 pumps:
- Terminal strip J103, terminals P5, P6 and COM
BoosterControl Advanced
