KSB BoosterControl Advanced Installation & Operating Manual page 43

Table 33: Parameter settings for control with several frequency inverters
Parameter Description
MPO = multiple pump operation
3-2-2-1 Select Hyamat VP operating mode
3-3-1 Number of pumps connected
BoosterControl Advanced reboots; observe notes
3-3-6 Switch on MPO function
3-4-2-4 Limitation of the maximum system load
3-4-3-4-4 Define maximum pump load ("0" deactivates the
function)
3-4-3-5-1 Activate flow detection: flow bandwidth
8 Commissioning/Start-up/Shutdown
0...50Hz
H
100%
0...50Hz 0...50Hz
H
200%
0...50Hz 0...50Hz
H

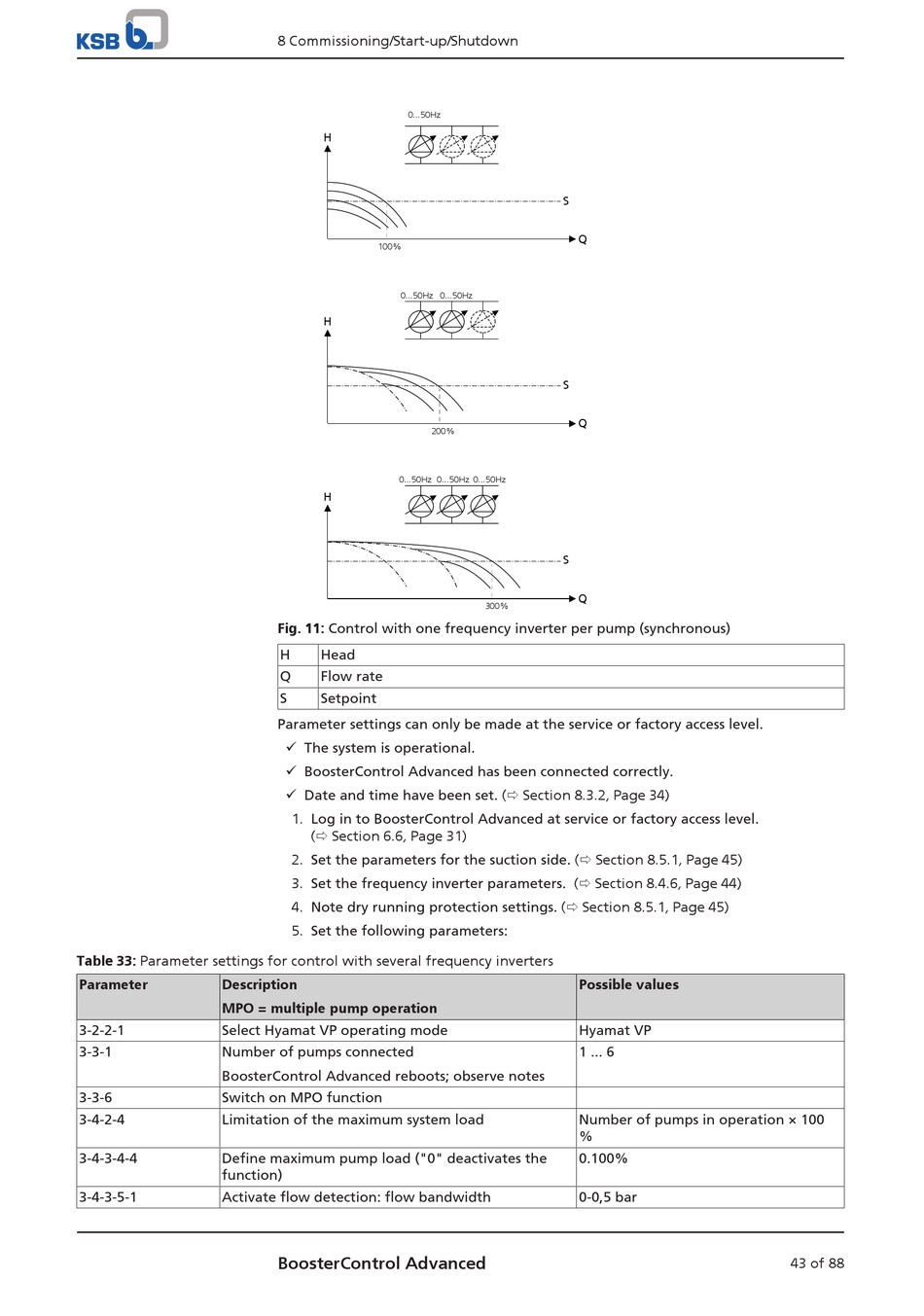

Fig. 11: Control with one frequency inverter per pump (synchronous)
H Head
Q Flow rate
S Setpoint
Parameter settings can only be made at the service or factory access level.
ü The system is operational.
ü BoosterControl Advanced has been connected correctly.
ü Date and time have been set. (ð Section 8.3.2, Page 34)
1. Log in to BoosterControl Advanced at service or factory access level.
(ð Section 6.6, Page 31)
2. Set the parameters for the suction side. (ð Section 8.5.1, Page 45)
3. Set the frequency inverter parameters. (ð Section 8.4.6, Page 44)
4. Note dry running protection settings. (ð Section 8.5.1, Page 45)
5. Set the following parameters:
BoosterControl Advanced
S
Q
S
Q
0...50Hz
S
Q
300%
Possible values
Hyamat VP
1 ... 6
Number of pumps in operation × 100
%
0.100%
0-0,5 bar
43 of 88
