Power electronics

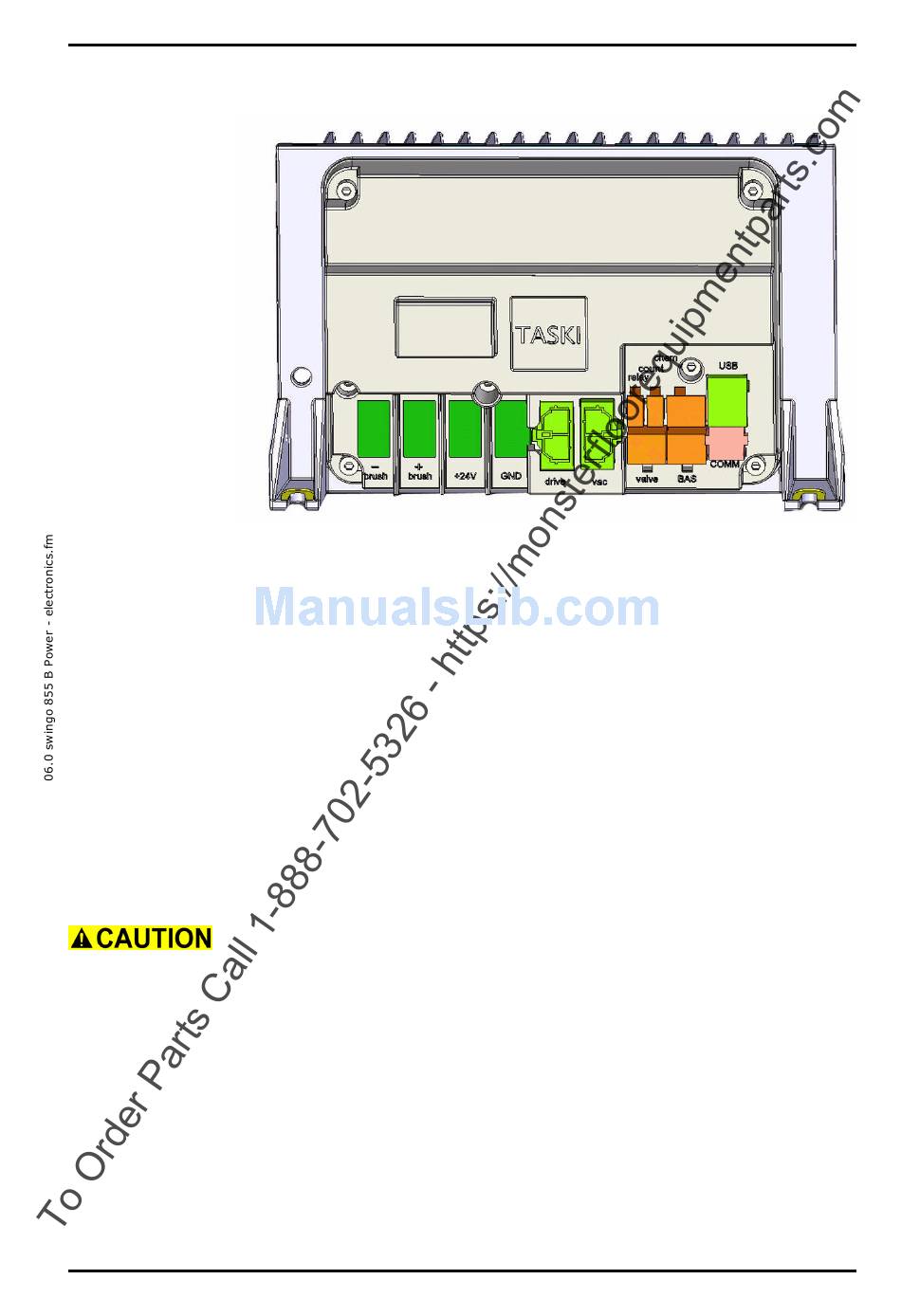

Picture 6: Power electronics
6.2.3.1 Replacing of power electronics
Remove
•
•
•
•
Mount
•
•
•
•
Tighten the connectors with the correct torque.
Adjustment
•
•
15. March 2010
Copyright © 2010, Diversey Inc.
Loosen the two screws that fix the power electronics to the
support.
Move out the power electronics.
Disconnect wires and connectors.
Remove power electronics.
Take new power electronics.
Connect wires and connectors to power electronics.
Position power electronics on the support.
Tighten the two screws.
M5 (05/121) with 5 Nm
• Battery minus
• Brush minus
M6 (05/124) with 7 Nm
• Brush plus
