GTS
5.1.7.3 Replacing of motor & motor belt

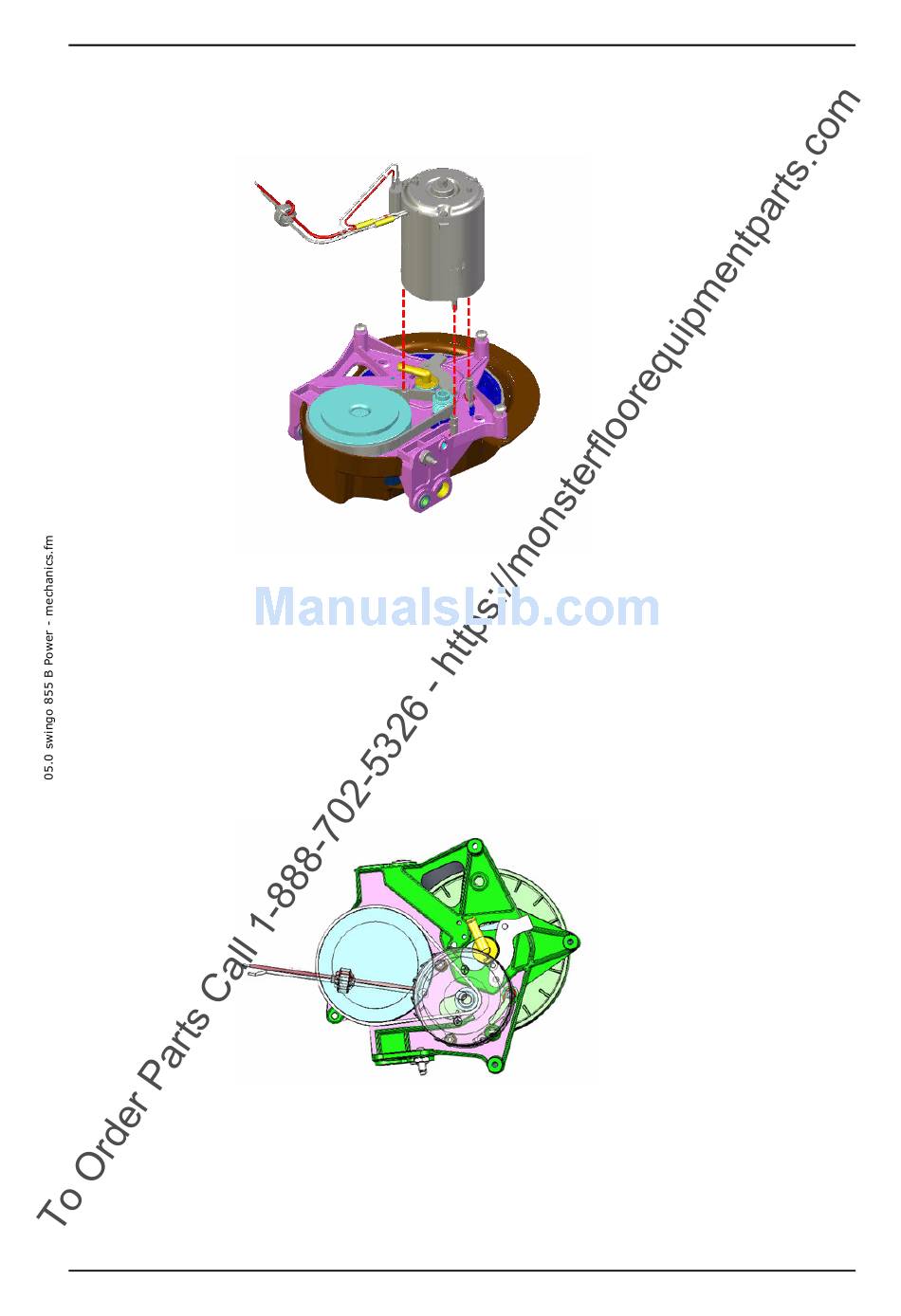

Picture 21: Motor belt
Remove
•
•
•
•
•
Picture 22: Motor belt
15. March 2010
Copyright © 2010, Diversey Inc.
Remove brush drive unit according to chapter REPLACING OF
BRUSH DRIVE UNIT.
Remove brush belt according to chapter REPLACING OF
BRUSH BELT.
Remove brush pulley according to chapter REPLACING OF
PULLEY.
Remove the two screws (09/134) and the one counter head
screw (09/135).
Remove the motor and the motor belt.
Edition: V1.00/2010
Technical Manual
5-28
