5.1.5

Drive, Wheel group

5.1.5.1 Replacing of traction unit

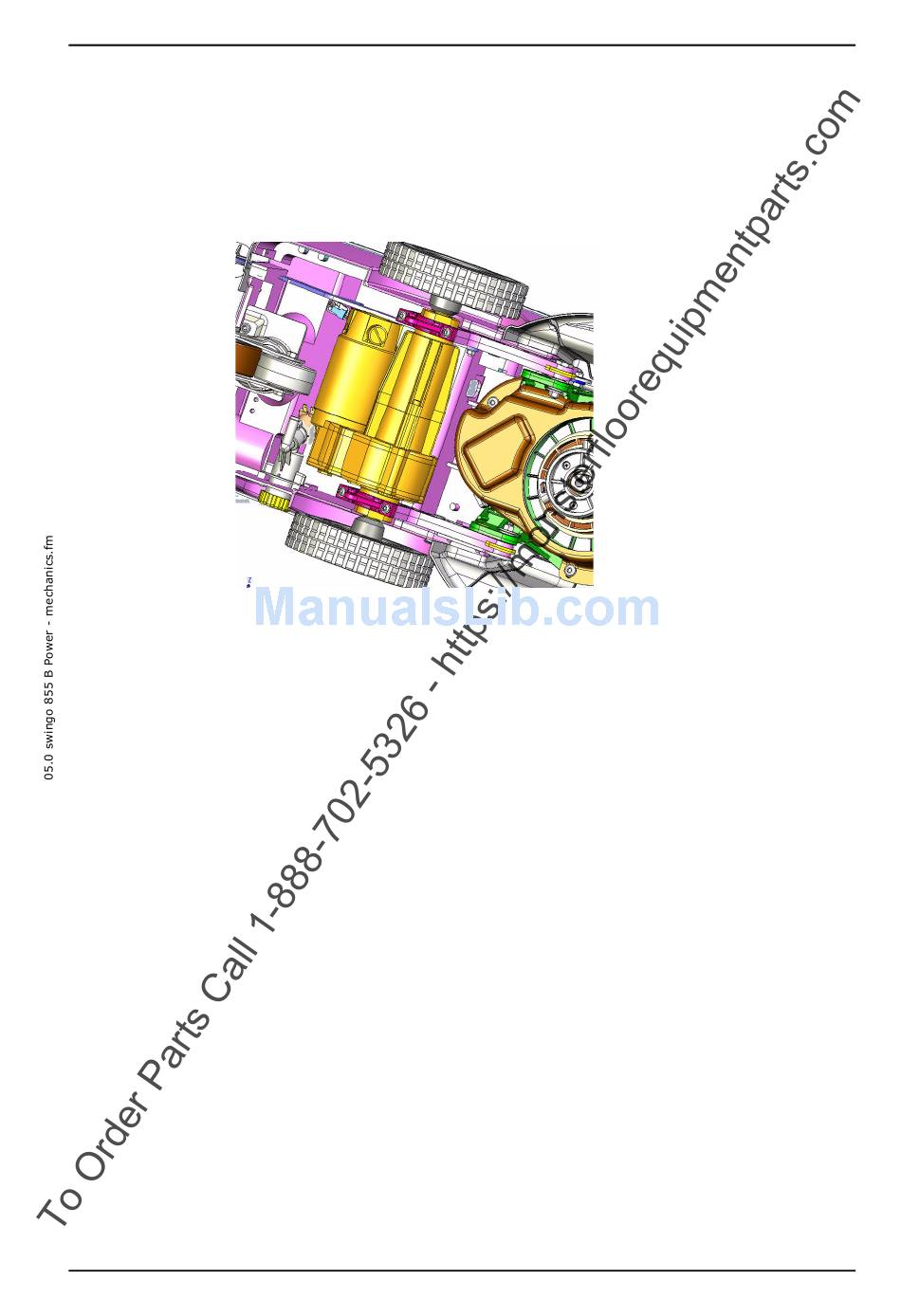

Picture 14: Traction unit
Remove
•
•
•
•
•
•
•
•
Mount
•
•
•
•
•
•
•
15. March 2010
Copyright © 2010, Diversey Inc.
Unlock battery compartment by removing screws from locking
system.
Open battery compartment.
Disconnect traction unit from power electronics.
Thread out cables from battery compartment.
Close battery compartment.
Lay machine to the LH side.
Unscrew fixation brackets.
Remove traction unit including traction wheels.
Position new traction unit including traction wheels.
Position and tighten fixation brackets.
Lift up machine again.
Open battery compartment.
Thread in cables of traction unit into the battery compartment.
Connect traction unit to power electronics.
Look the battery compartment on both sides with the screws
from the locking system.
