GTS
5.1.1.2 Replacing of hall sensor board

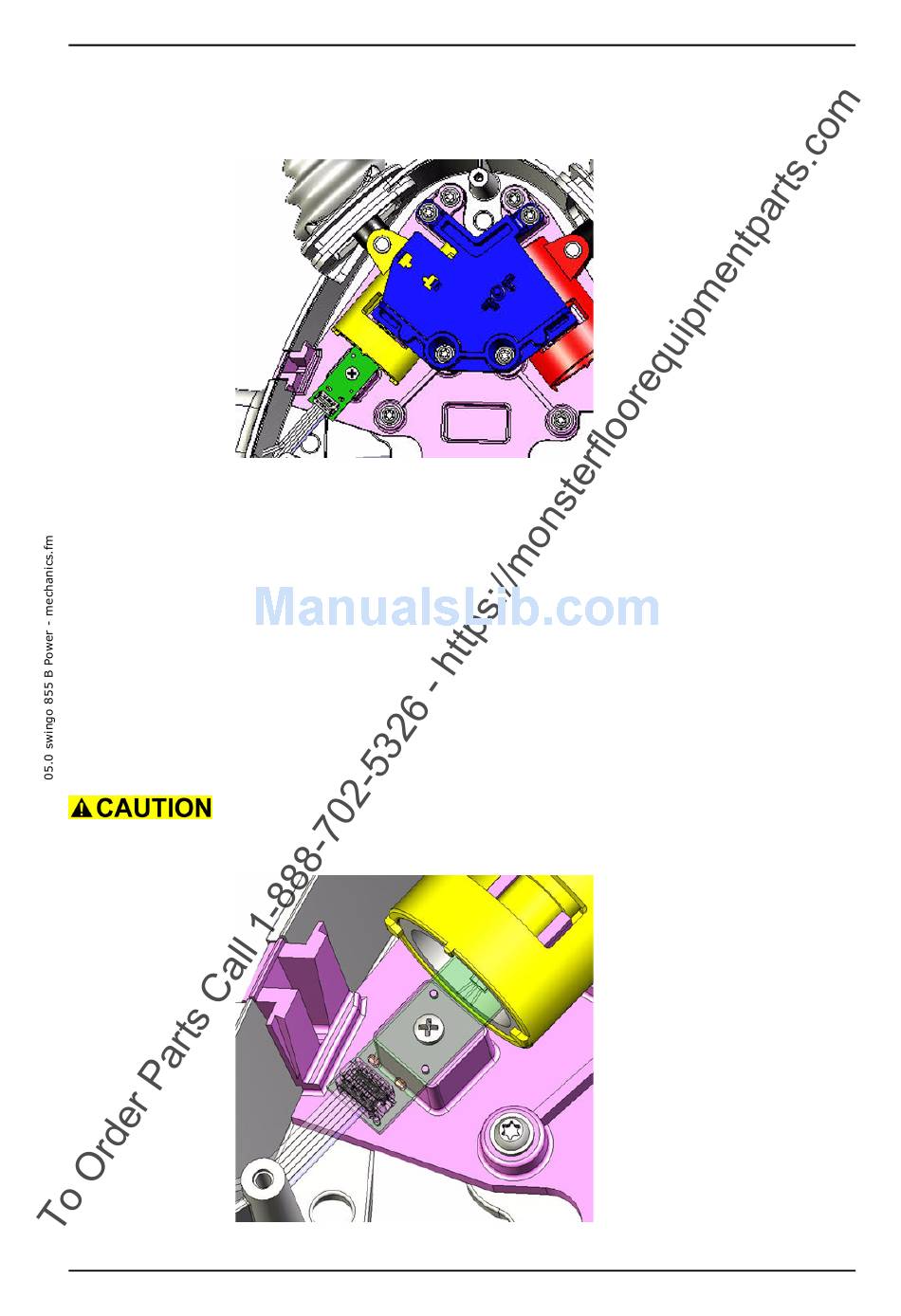

Picture 2: Throttle hall sensor
Remove
•
•
•
•
•
•
•
Mount
•
Make sure that the mechanic hall sensor compl. is placed correctly
on the pins of the support before tightening the screw.
15. March 2010
Copyright © 2010, Diversey Inc.
Remove microswitch according to chapter REPLACING OF
MICROSWITCH.
Remove the 5 screws of the dashboard.
Remove dashboard.
Disconnect hall sensor compl. ribbon cable.
Thread out hall sensor compl. ribbon cable.
Unscrew mechanic hall sensor compl. fixation.
Remove mechanic hall sensor compl.
Build in mechanic hall sensor compl.
Edition: V1.00/2010
Technical Manual
5-3
