Taski swingo 855B Power Technical Manual page 52

GTS
Mount
•
•
•
•
•
Adjustment
The foot lever switch has to apply when the foot lever passes the
centre of the LH side of the stop plate squeegee (07/102)

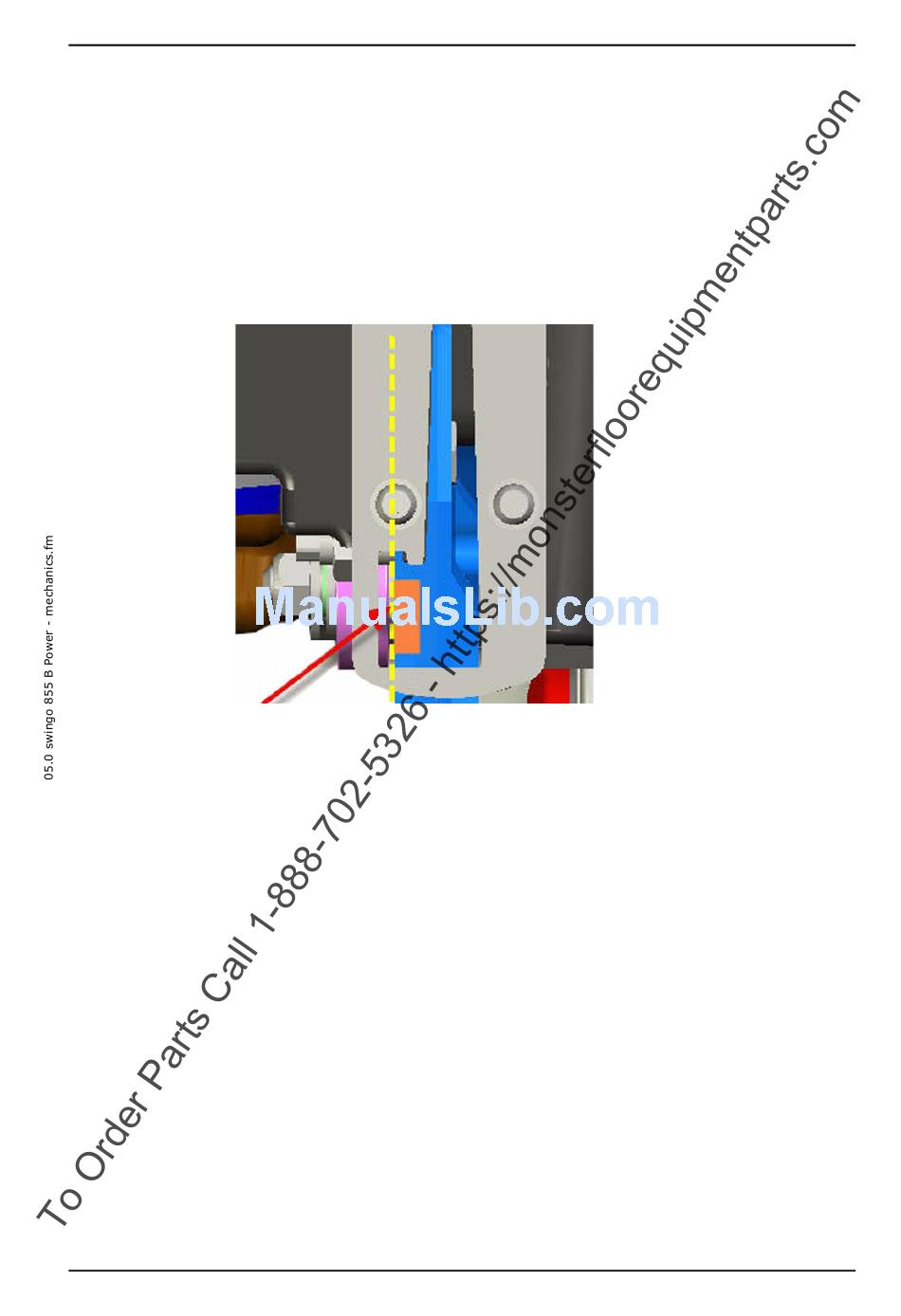

Picture 25: Switching point
•
•
•
•
15. March 2010
Copyright © 2010, Diversey Inc.
Build in new foot lever.
Position and tighten nuts (07/113) and (07/126).
Position cradle and foot lever in the correct position.
Assemble axle (07/112) for cradle.
Assemble microswitch and adjust accordingly.
Connect microswitch.
Assemble pedal pad on the foot lever.
Complete assembling according to the chapter REPLACING OF
TRACTION UNIT.
Complete assembling according to the chapter REPLACING OF
BRUSH DRIVE UNIT.
Edition: V1.00/2010
Technical Manual
5-31
