5.1.4.2 Replacing of castor wheel

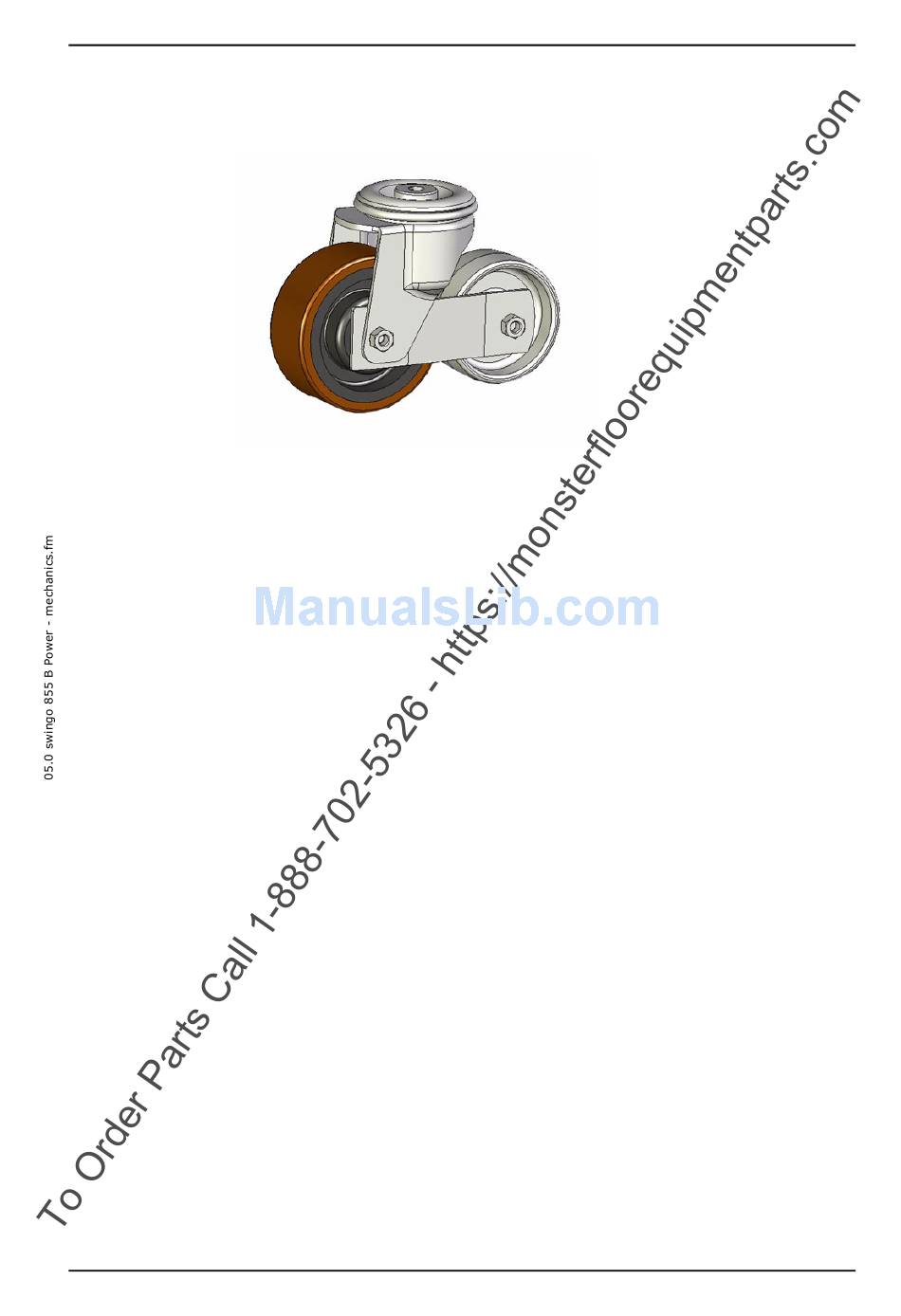

Picture 10: Castor wheel
Remove
•
•
•
•
•
•
Mount
•
•
•
•
•
Adjustment
Tighten the screw with 70 Nm.
Service
Apply gear/bearing lubricant (05/134) on the bush (05/114).
Apply adhesive locking (05/133) on screw (05/104).
15. March 2010
Copyright © 2010, Diversey Inc.
Unlock battery compartment on the LH side by removing the
screw from the locking system.
Lay the machine on the LH side.
Unlock battery compartment on the RH side by removing the
screw from the locking system.
Open the battery compartment.
Untighten the fixation screw with a 19 mm fork spanner.
Remove the complete castor wheel and squeegee support.
Assemble castor wheel and squeegee support according to e-
spares.
Tighten the fixation screw with a 19 mm fork spanner.
Lock battery compartment on the RH side with the screw of
the locking system.
Lift up the machine.
Lock battery compartment on the LH side with the screw of the
locking system.
