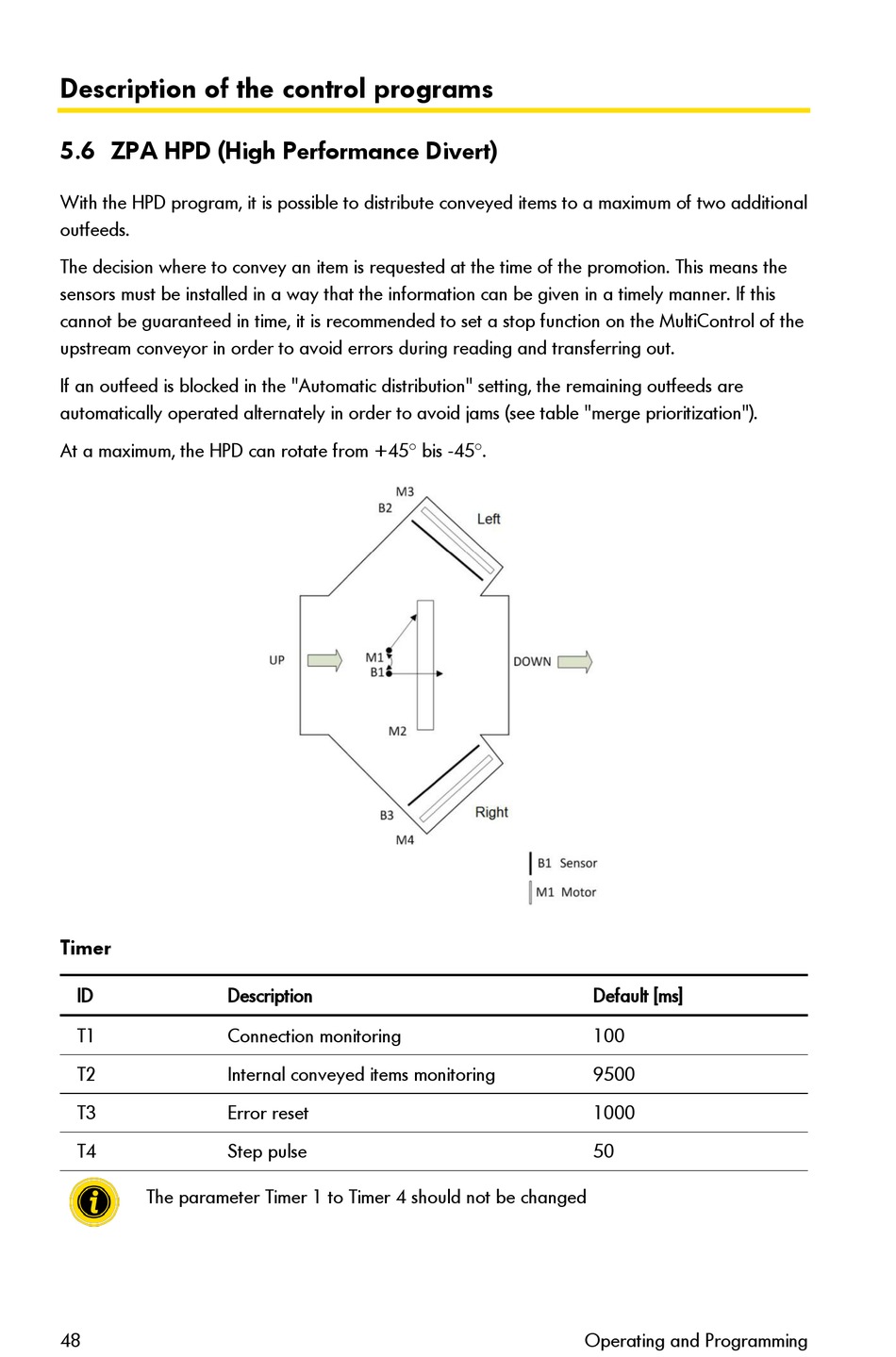

Description of the control programs

5.6 ZPA HPD (High Performance Divert)

With the HPD program, it is possible to distribute conveyed items to a maximum of two additional
outfeeds.
The decision where to convey an item is requested at the time of the promotion. This means the
sensors must be installed in a way that the information can be given in a timely manner. If this
cannot be guaranteed in time, it is recommended to set a stop function on the MultiControl of the
upstream conveyor in order to avoid errors during reading and transferring out.
If an outfeed is blocked in the "Automatic distribution" setting, the remaining outfeeds are
automatically operated alternately in order to avoid jams (see table "merge prioritization").
At a maximum, the HPD can rotate from +45 bis -45.

Timer

ID Description
T1 Connection monitoring
T2 Internal conveyed items monitoring
T3 Error reset
T4 Step pulse
The parameter Timer 1 to Timer 4 should not be changed
48
Default [ms]
100
9500
1000
50
Operating and Programming
