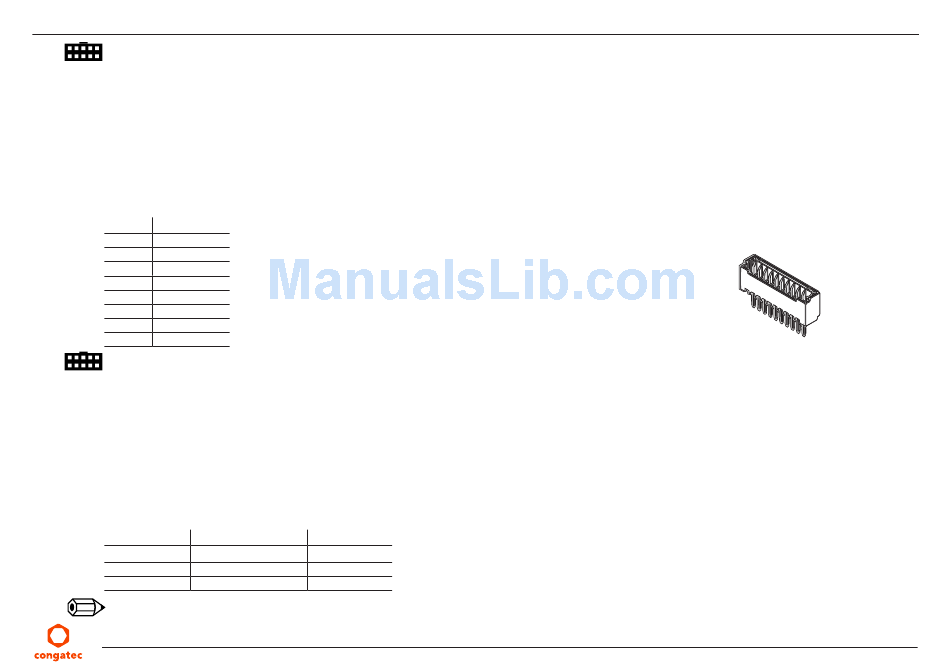

Connector Type
X47 : 1x5-pin, 3 mm pitch Molex Micro-FIT connector
5.1.3.1
Optional SBM3 Signal Connector
As mentioned in section 5.1.3, you need the optional power connector X47 and the signal connector X47 for designs with SBM battery kit. The
signal connector ensures the conga-IC170 communicates flawlessly with the battery kit.
Table 15
Connector X46 Pinout Description
Pin
Function
1
GND
2
I2C_DAT
3
I2C_CLK
4
BATLOW#
5
SUS_STAT#
6
PM_SLP_S3#
7
PM_SLP_S4#
8
PWRBTN#
Connector Type
X46 : 8-pin, 1.25 mm pitch Molex PicoBlade connector
5.1.4
Power Status LEDs
The conga-IC170 provides two LED signals (FP_LED+ and P_LED-) on pins 2 and 4 of the front panel connector X39. The signals indicate the
different power states of the conga-IC170.
Table 16
LED States
State
FP_LED+
S0
1
S3
0
S5
0
Note
For the front panel pinout description, see section 6.1 "Front Panel Connector".
Copyright © 2016 congatec AG
FP_LED-
0
1
0
SBM3 Signal - Connector X46
ICSLm13.indd
25/95
