Chapter 6. Configuration of IEC 104 Server Parameters Using COMMREQ
Case 2: Configuring Translation Memory Offset with Zero and CPO with Non-Zero Value

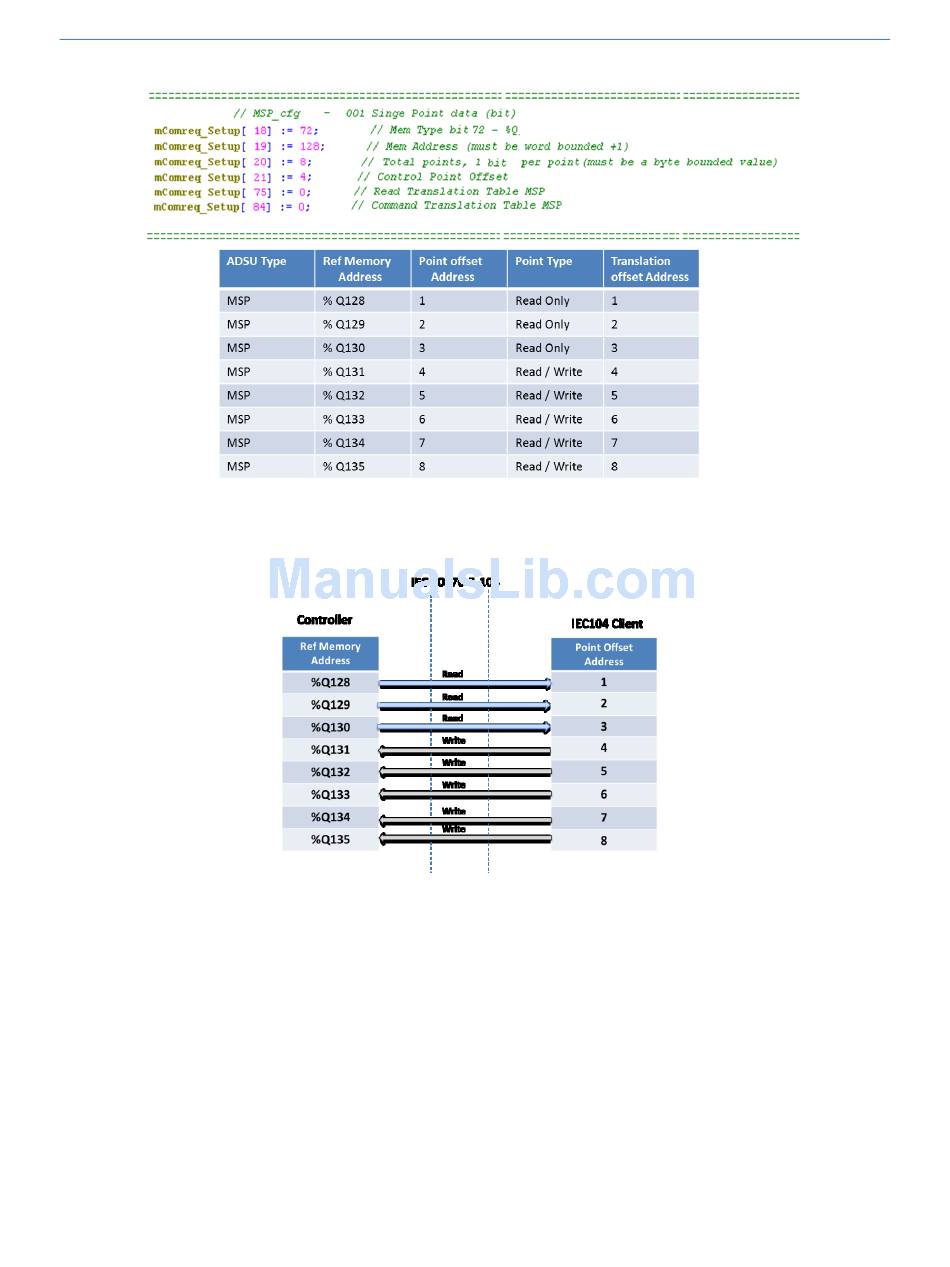

Figure 17: COMMREQ Parameters & Corresponding Read/Write Permissives (Case 2)
• Translation memory offsets are disabled when both the Read and Command offset values are
set to 0.

Figure 18: Red/Write Interaction between Controller and IEC104 Client (Case 2)

• Points < CPO are Read only
• Point >= CPO are Read / Write
40 PACSystems RX3i Ethernet 104 Server Module User Manual GFK-2949C
