5.4.1 Typical Fault Messages during Power-Up

The following messages may display in the RX3i CPU Fault Table during a typical power-on sequence:

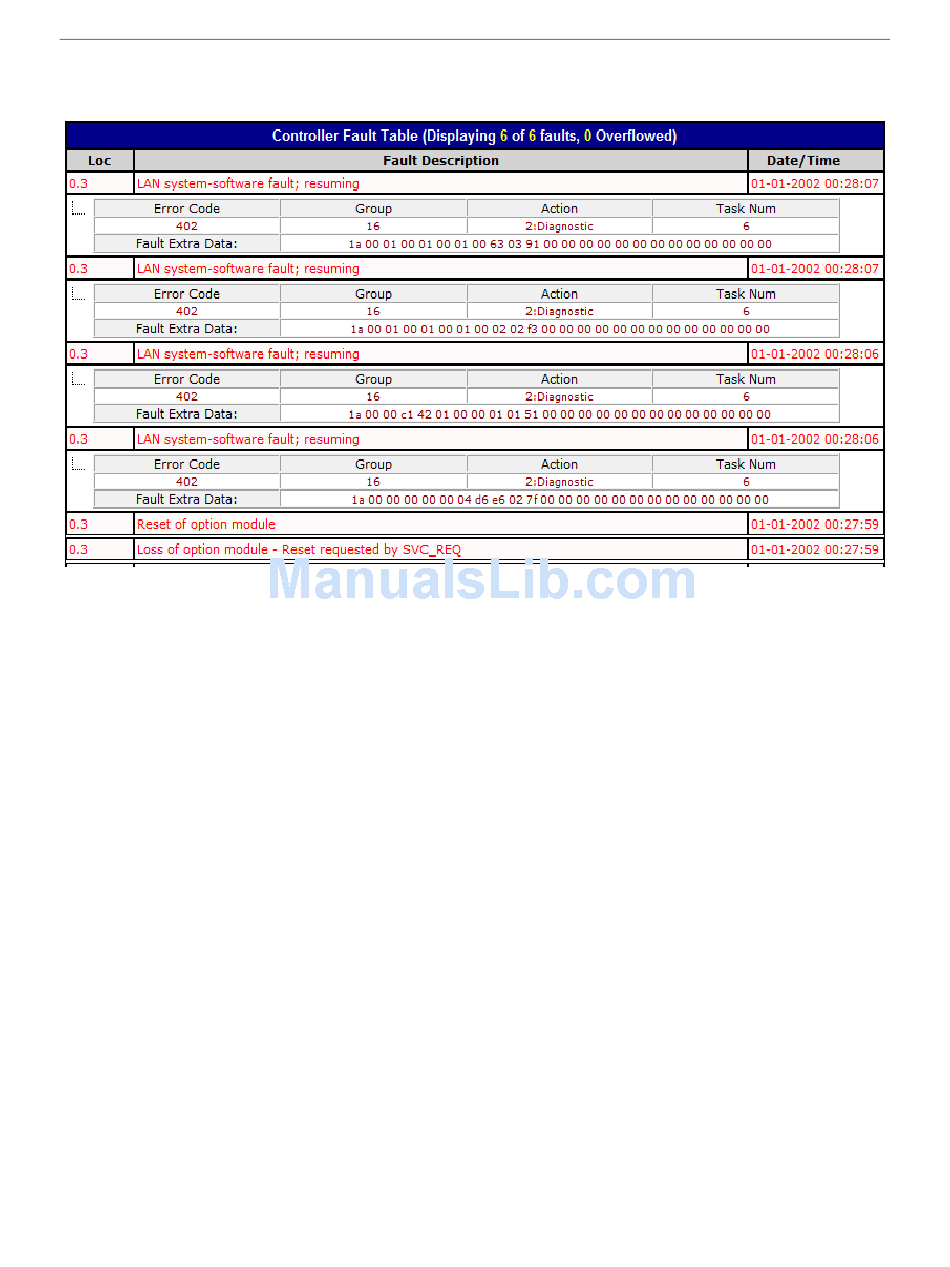

Figure 12: Typical Power-Up Controller Fault Table Entries Originated by EIS001

Figure 12 details the normal start-up sequence of the EIS001 module. These annunciations are to be
expected. In chronologic order, starting at the bottom line and moving up, you will see:
a. The EIS001 is operating, and the check of the license has been performed. In this example the
module is licensed, starting in value 2 and 3, the different license checks return in values 4 to 7
and in values 8 and 9 is D6 E6
b. The EIS001 firmware Revision is being displayed. In the example at value 4, C1 42 01 00, this is
also the message before waiting for configuration.
e. The EIS001 module has been configured and is operating.
f. The EIS001 module is not entering the main loop, and has registered the module online.
* In Demo mode more messages will be present indicating the lack of a license.
Refer to Appendix C for more details, or other log messages.
