Chapter 3. Configuration
3.7 Station Manager Configuration
Use the RS-232 Port (Station Manager) tab in PME to set up the Station Manager port on the EIS001
module.

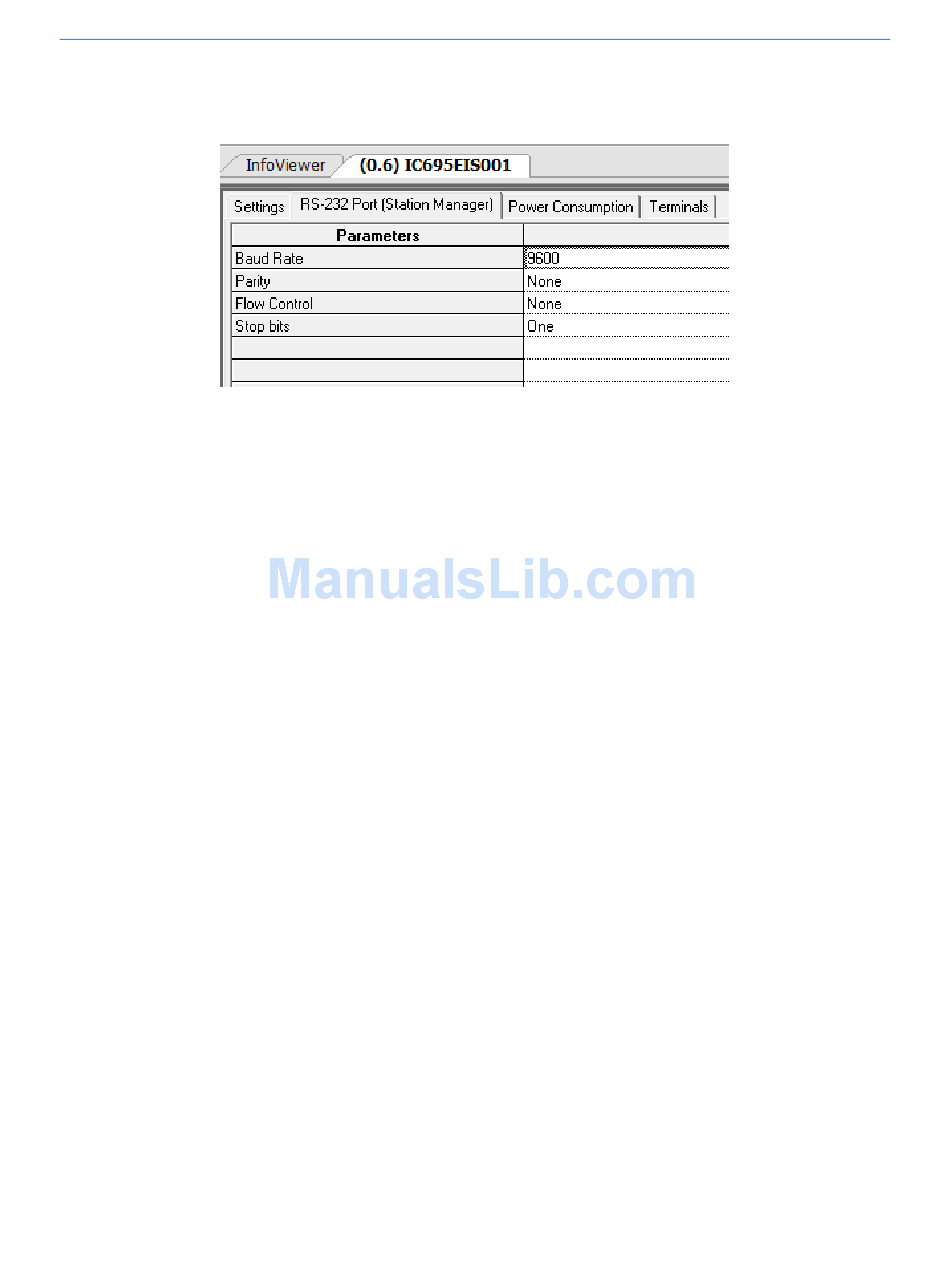

Figure 10: Station Manager Configuration Tab (Showing Defaults)
Refer to PACSystems TCP/IP Ethernet Communications Station Manager User Manual, GFK-2225 .
Details on the EIS001-specific Station Manager commands may be found in Appendix B. For all
common Station Manager commands, use ETM001 as a reference and refer to PACSystems TCP/IP
Ethernet Communications Station Manager User Manual (GFK-2225).The EIS001 module is
constructed on the ETM001 platform.
GFK-2949C
July 2017
25
