6.12 Electrical Overview

6.12.1 Power Circuit - Overview

6 6

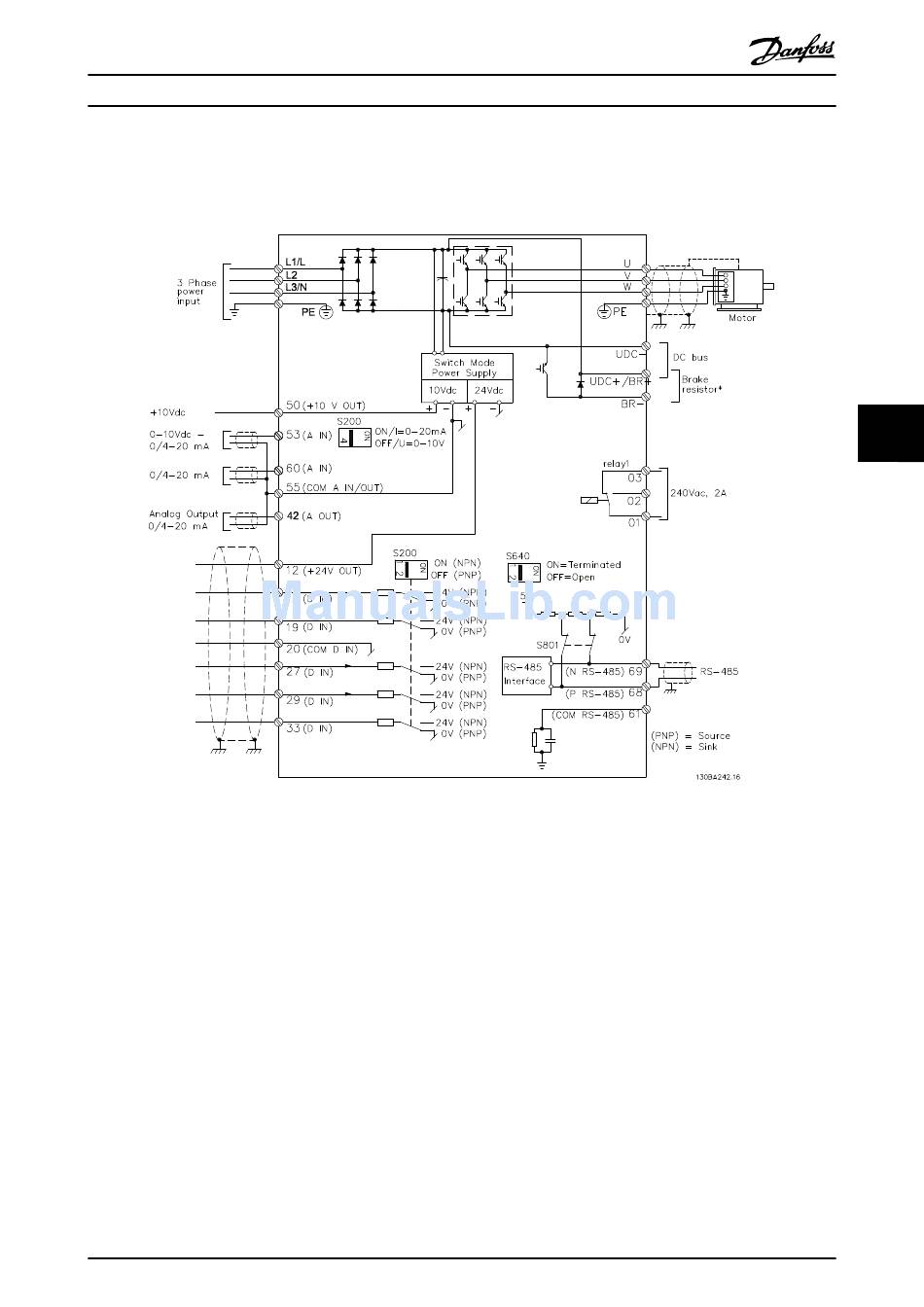

Illustration 6.12 Diagram Showing all Electrical Terminals
* Brake (BR+ and BR-) are not applicable for enclosure type M1.
Brake resistors are available from Danfoss.
Improved power factor and EMC performance can be achieved by installing optional Danfoss line filters.
Danfoss power filters can also be used for load sharing.
