How to Install
VLT
Micro Drive FC 51

6.12 Electrical Overview

6.12.1 Power Circuit - Overview

6
6

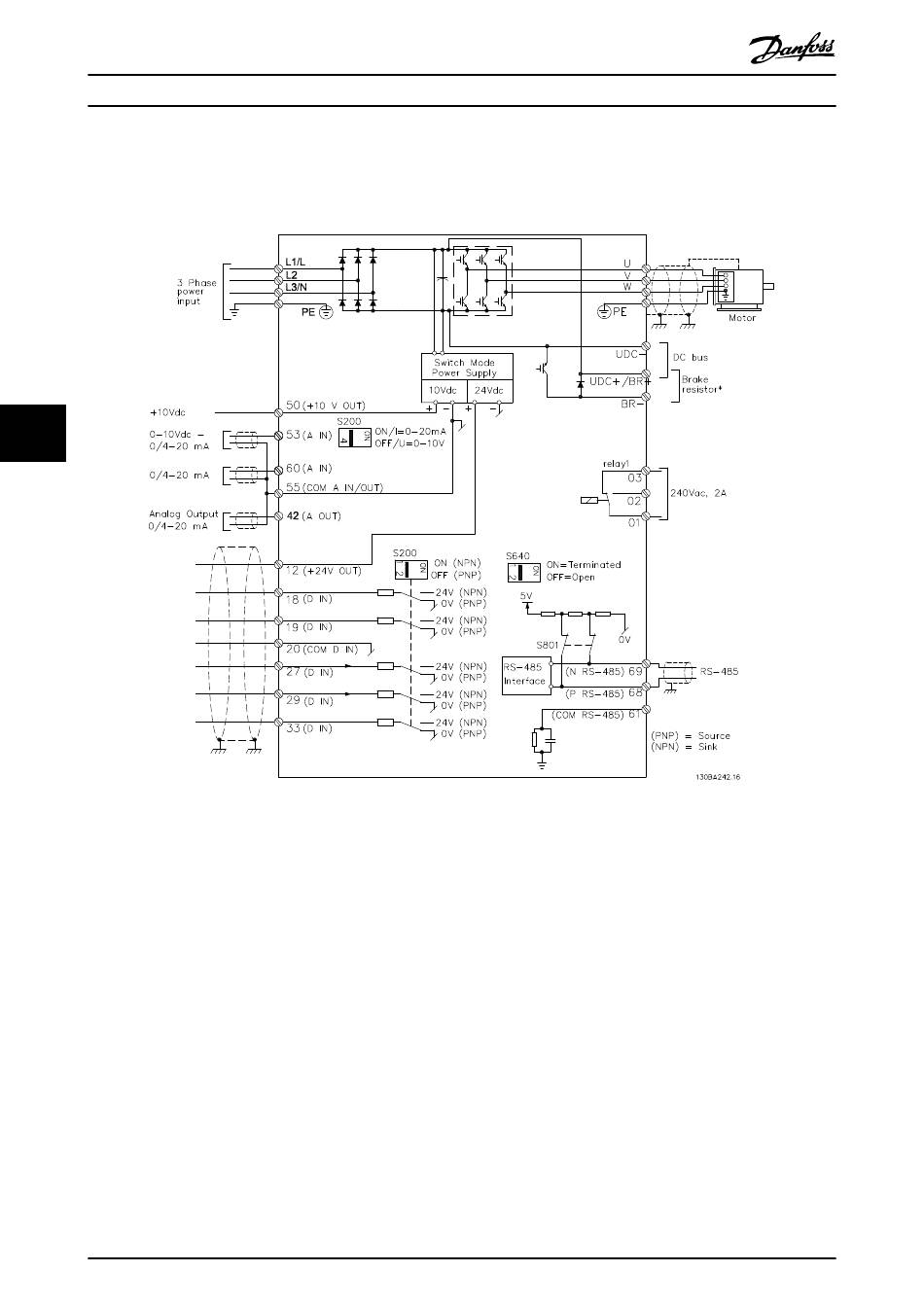

Illustration 6.12 Diagram Showing all Electrical Terminals
* Brakes (BR+ and BR-) are not applicable for enclosure size M1.
®
For information about brake resistors, see VLT
Brake Resistor MCE 101 Design Guide.
Improved power factor and EMC performance can be achieved by installing optional Danfoss line filters.
®
Danfoss power filters can also be used for load sharing. For more information about load sharing, see VLT
FC 51 Micro Drive
Load Sharing application note.
50
Danfoss A/S © 01/2016 All rights reserved.
MG02K402
