Danfoss VLT FC51 Design Manual page 50

How to Install
6 6
PLC
Mains-supply
L1
L2
L3
PE
Reinforced protective earth

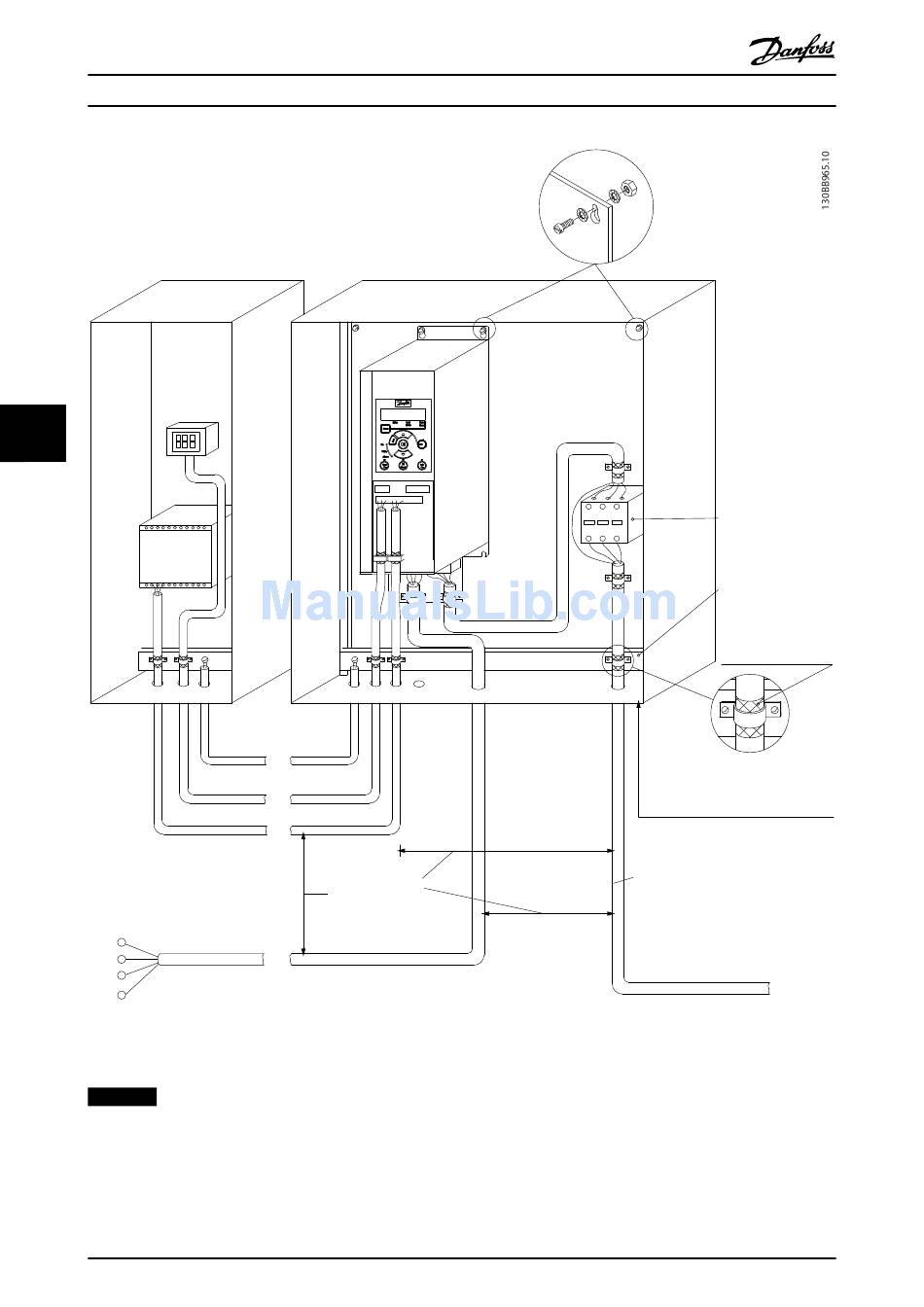

Illustration 6.9 EMC-correct Electrical Installation
NOTICE
For North America use metal conduits instead of shielded cables.
48
PLC etc.
2
Min. 16 mm
Equalizing cable
Control cables
Min. 200mm
between control
cable, mains cable
and between mains
motor cable
®
VLT Micro Drive FC 51 Design Guide
Panel
MG02K302 - Rev. 2013-12-03
Output con-
tactor etc.
Earthing rail
Cable insula-
tion stripped
All cable entries in
one side of panel
Motor cable
Motor, 3 phases and
Protective earth
