Selection
Step 2

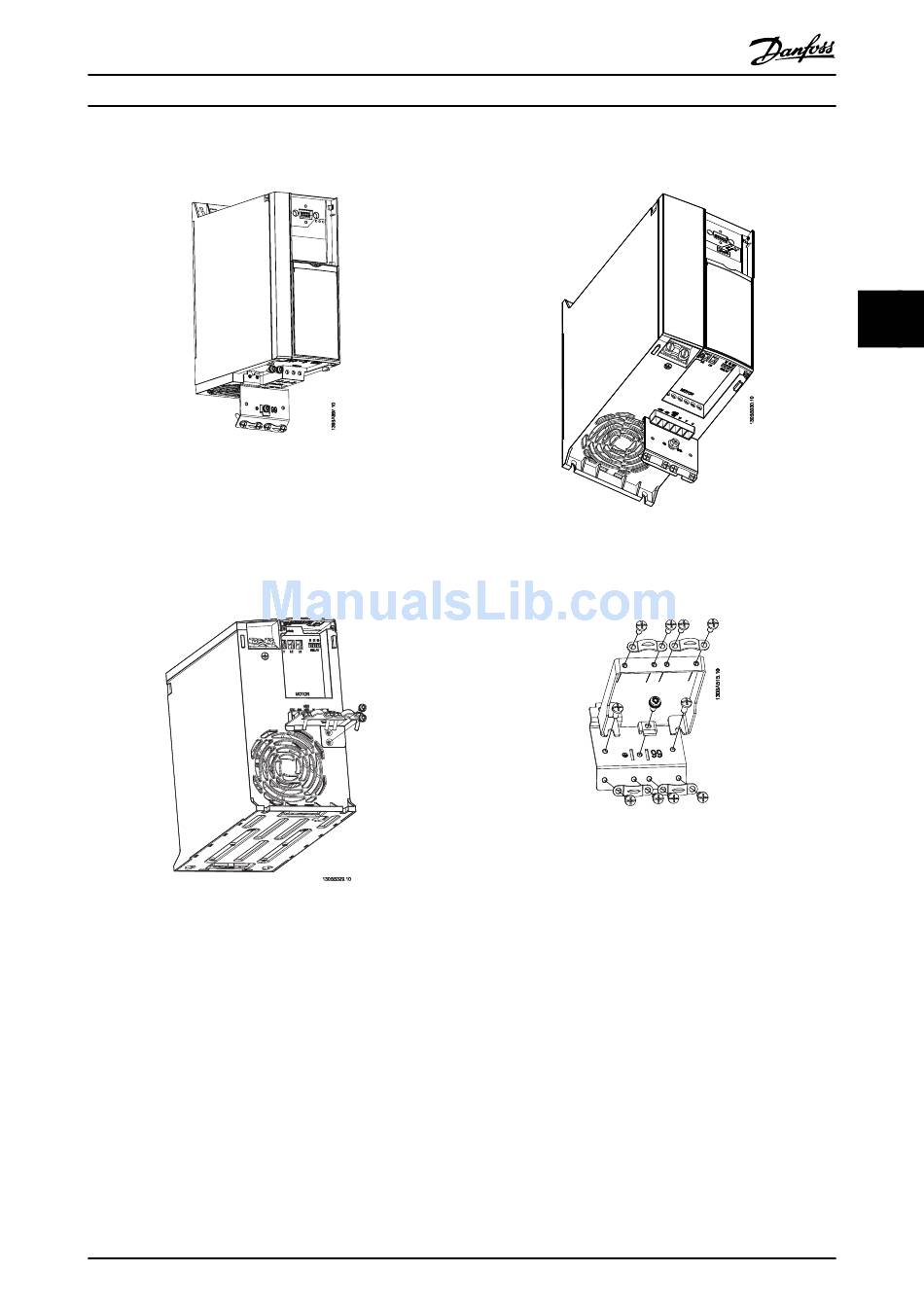

De-coupling plate mounted.
Illustration 4.23 De-coupling Plate Mounted
4.1.13 FC 51 De-coupling Plate Mounting
Instruction for M4 and M5
Step 1
Mount metal plate on frequency converter and fasten with
2 screws. Tightening torque: 2 Nm.
Illustration 4.24 Mount Metal Plate
®
VLT Micro Drive FC 51 Design Guide
Step 2
De-coupling plate mounted.
Illustration 4.25 De-coupling Plate Mounted
Step 3
Mount bracket on de-coupling plate.
Illustration 4.26 Mount Bracket
MG02K302 - Rev. 2013-12-03
