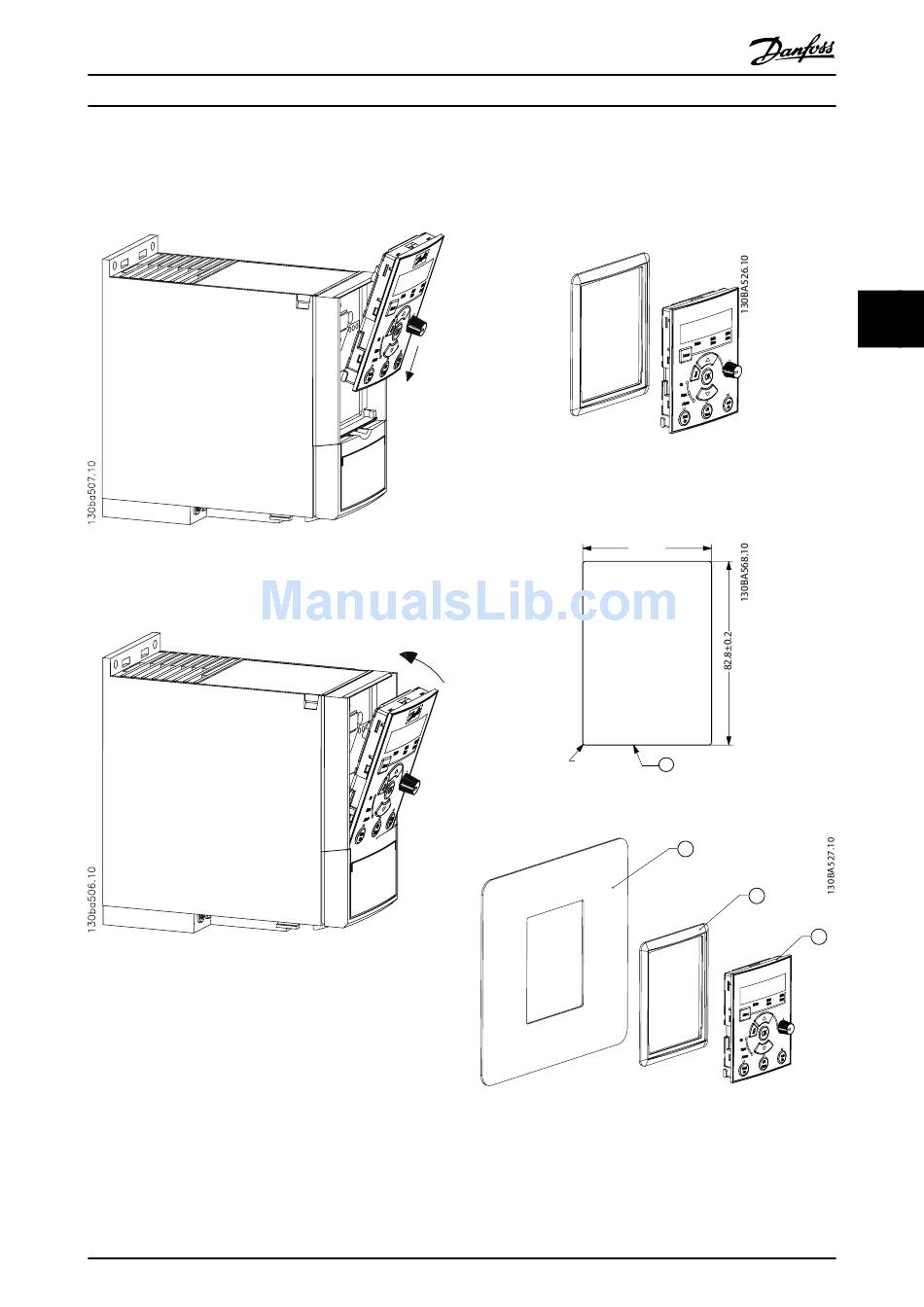

4.1.3 FC 51 LCP Mounting Instruction

Step 1
Place the bottom of the LCP in the frequency converter.
Illustration 4.2 Place the LCP in the Frequency Converter
Step 2
Push the top of the LCP into the frequency converter.
Illustration 4.3 Push the Top of the LCP into Place
®
VLT Micro Drive FC 51 Design Guide
4.1.4 FC 51 Remote Mounting Kit Mounting
Instruction
Step 1
Fit gasket on LCP in the frequency converter.
Illustration 4.4 Fit Gasket on LCP
Step 2
Place LCP on panel - see dimensions of hole on drawing.
Illustration 4.5 Dimensions of Hole
Illustration 4.6 Panel, Gasket and LCP
MG02K302 - Rev. 2013-12-03
62.3±0.2
4xR 1.5±0.5
1
1
4 4
2
3
27
