Selection

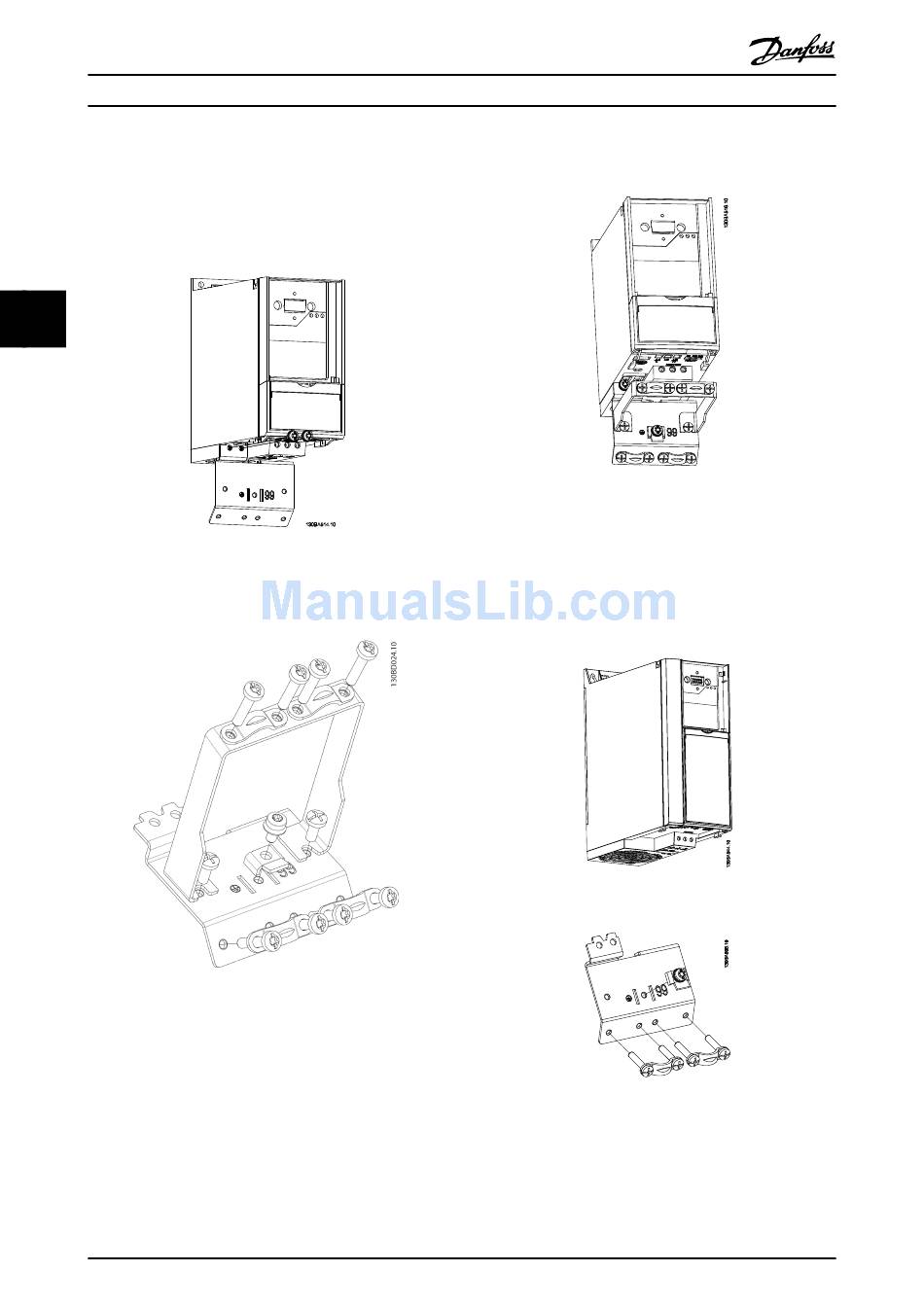

4.1.11 FC 51 De-coupling Plate Mounting
Instruction for M1 and M2
Step 1
Mount metal plate on frequency converter and fasten with
two screws. Tightening torque: 2 Nm.
4 4
Illustration 4.18 Mount Metal Plate
Step 2
Mount bracket on de-coupling plate.
Illustration 4.19 Mount Bracket
32
®
VLT Micro Drive FC 51 Design Guide
Step 3
De-coupling plate mounted.
Illustration 4.20 De-coupling Plate Mounted
4.1.12 FC 51 De-coupling Plate Mounting
Step 1
Mount de-coupling plate on frequency converter and
fasten with 2 screws. Tightening torque: 2 Nm.
Illustration 4.21 Mount De-coupling Plate
Illustration 4.22 Fasten with Screws
MG02K302 - Rev. 2013-12-03
Instruction for M3
