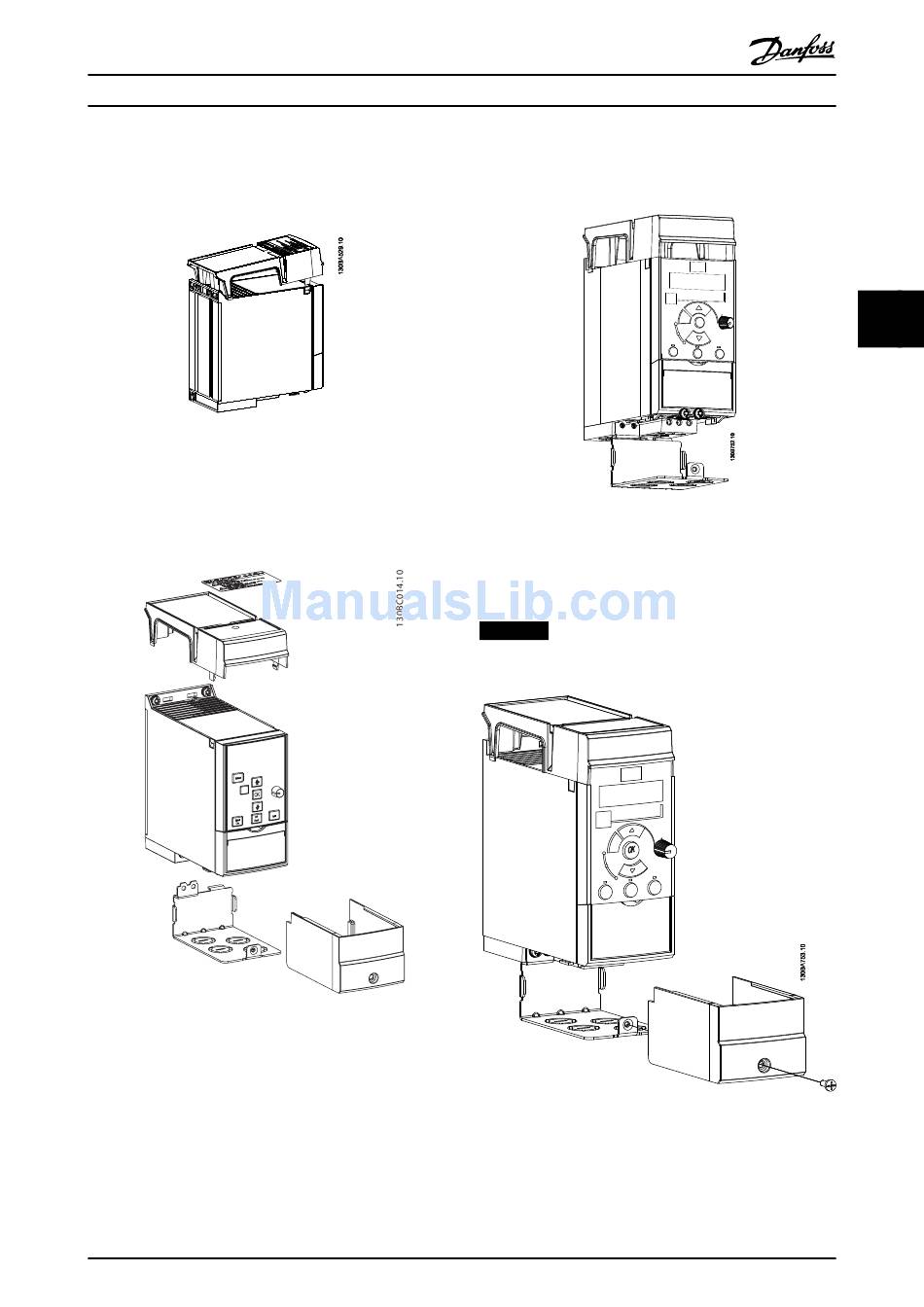

4.1.10 FC 51 IP21 Kit Mounting Instruction

Step 1
Fit top cover on frequency converter.
Illustration 4.14 Fit Top Cover on Frequency Converter
Step 2
Remove knock-outs on metal plate and fit rubber
grommets.
Illustration 4.15 Remove Knock-outs and Fit Rubber Grommets
®
VLT Micro Drive FC 51 Design Guide
Step 3
Mount metal plate on frequency converter and tighten
screws. Tightening torque: 2 Nm.
Illustration 4.16 Mount Metal Plate on Frequency Converter
Step 4
Fit bottom cover on frequency converter and tighten
screw.
NOTICE
IP21 is only achieved with LCP 11 or LCP 12 mounted.
Illustration 4.17 Fit Bottom Cover on Frequency Converter
