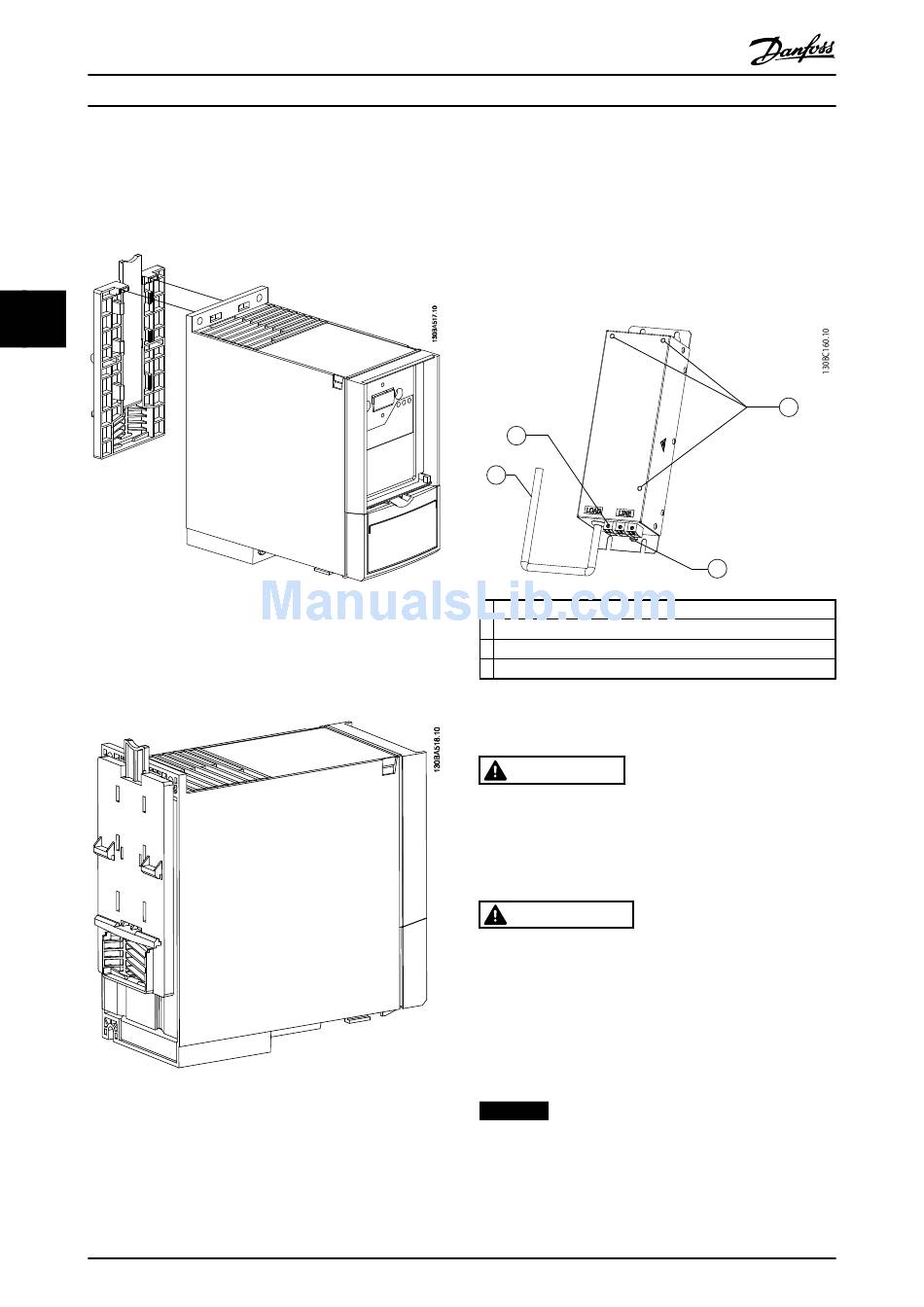

4.1.14 FC 51 DIN Rail Kit Mounting
Instruction
Step 1
Mount plastic part on frequency converter.
4 4
Illustration 4.27 Mount Plastic Part
Step 2
Fit frequency converter on DIN rail (Din Rail kit is only for
M1 and M2).
Illustration 4.28 Fit Frequency Converter on DIN Rail
34
®
VLT Micro Drive FC 51 Design Guide
4.1.15 Line Filter MCC 107 Installation
Line filters of the type MCC 107 combine a harmonic filter
and an EMC filter. The line filters improve performance of
the line current to the frequency converter. The 3 different
line filter frame sizes correspond to the VLT
enclosure types M1, M2 and M3.
2
3
1 Mounting holes for frequency converter
2 Input terminal
3 Output line
4 Protective earth (PE)
Illustration 4.29 Line Filter MCC 107 with Micro Drive FC 51
CAUTION
Hot surfaces
Risk of high surface temperatures.
•
WARNING
High voltage
Risk of electric shock.
•
NOTICE
•
MG02K302 - Rev. 2013-12-03
Instructions
Do NOT touch the line filter during operation or
wear protective gloves
Never carry out maintenance work on the line
filter during operation. Wait at least 4 minutes
after the equipment has been disconnected
from the frequency converter before touching
any potentially live parts.
Never repair a defective filter
®
Micro Drive
1
4
