2 Installation

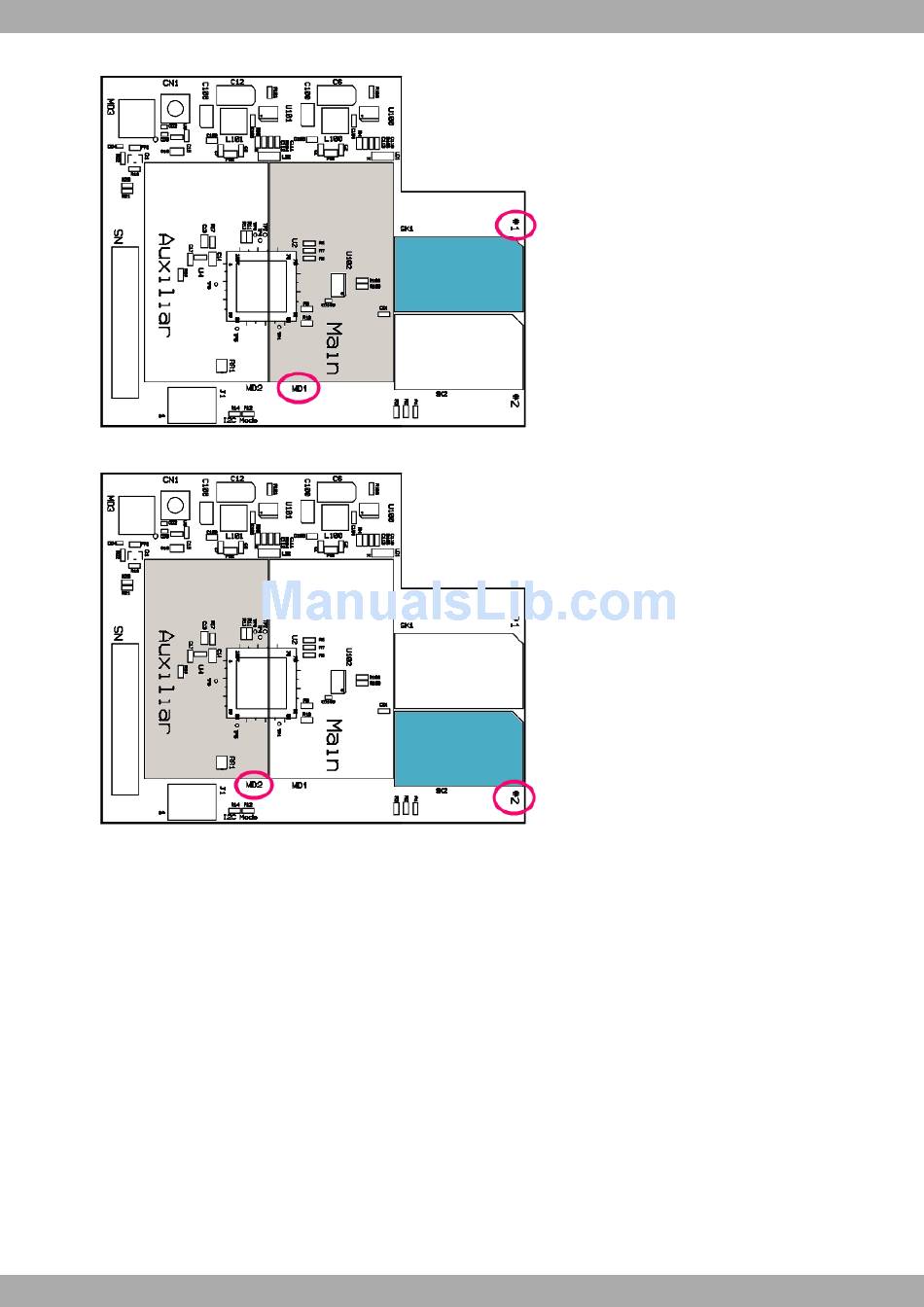

SIM tray #1 for MD1 Module
Fig. 9:
SIM tray #2 for MD2 Module
Fig. 10:
When there are two modules, the SIM tray assignment is set and is as follows:
In devices where a single WWAN module is installed (MD1), if only one SIM card is going to be used, it can be inser-
ted in either SIM tray (#1 or #2). However, you must remember to configure the router correctly so it selects the ap-
propriate tray.

2.2.2 Installing the SIM

In order to insert a SIM card in the internal tray, locate the retaining flange (metal fastening with OPEN and LOCK on
it) so you can open the tray and place the SIM card on it. The steps are as follows:
(1) Push the fastening toward the OPEN arrow.
(2) Open the upper part of the tray.
(3) Insert the SIM card so it's flush with the edges of the tray.
(4) Return the tray to its original position.
10
• Module MD1 for SIM #1
• Module MD2 for SIM #2
• Module MD1 # SIM #1 (default) or SIM #2
Teldat S.A.
Teldat H2 RAIL Lite
