Terminal modules

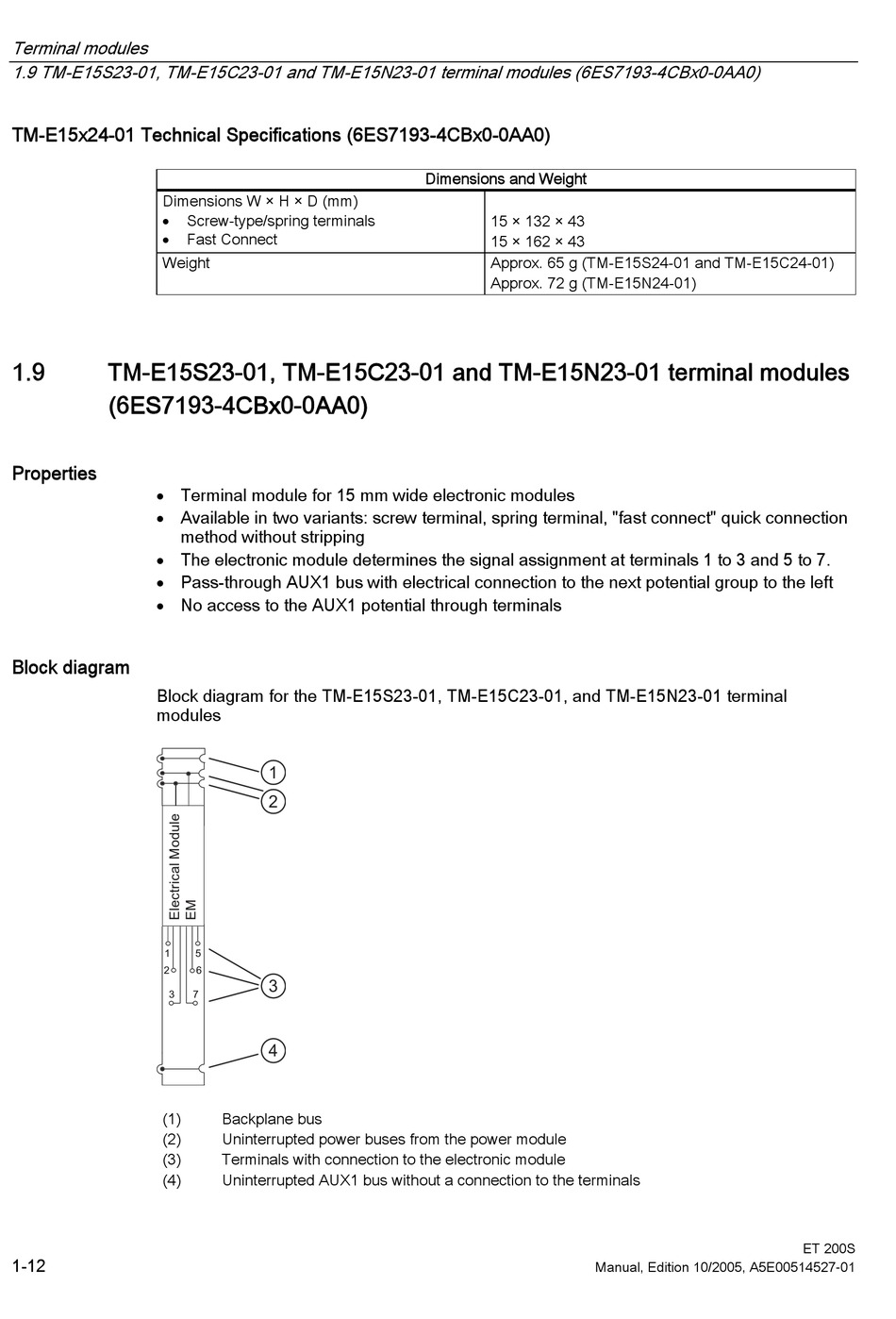

1.9 TM-E15S23-01, TM-E15C23-01 and TM-E15N23-01 terminal modules (6ES7193-4CBx0-0AA0)

TM-E15x24-01 Technical Specifications (6ES7193-4CBx0-0AA0)
Dimensions W × H × D (mm)
•
•
Weight
1.9 TM-E15S23-01, TM-E15C23-01 and TM-E15N23-01 terminal modules
1.9
(6ES7193-4CBx0-0AA0)
Properties
• Terminal module for 15 mm wide electronic modules
• Available in two variants: screw terminal, spring terminal, "fast connect" quick connection
• The electronic module determines the signal assignment at terminals 1 to 3 and 5 to 7.
• Pass-through AUX1 bus with electrical connection to the next potential group to the left
• No access to the AUX1 potential through terminals
Block diagram
Block diagram for the TM-E15S23-01, TM-E15C23-01, and TM-E15N23-01 terminal
modules
(1)
(2)
(3)
(4)
1-12
Screw-type/spring terminals
Fast Connect
method without stripping
1
2
3
4
Backplane bus
Uninterrupted power buses from the power module
Terminals with connection to the electronic module
Uninterrupted AUX1 bus without a connection to the terminals
Dimensions and Weight
15 × 132 × 43
15 × 162 × 43
Approx. 65 g (TM-E15S24-01 and TM-E15C24-01)
Approx. 72 g (TM-E15N24-01)
Manual, Edition 10/2005, A5E00514527-01
ET 200S
