Putting In Transport Position - Haulotte HA16X Operator's Manual

Engine-powered articulated lifts, 12 - 26 m
F
- Special procedure

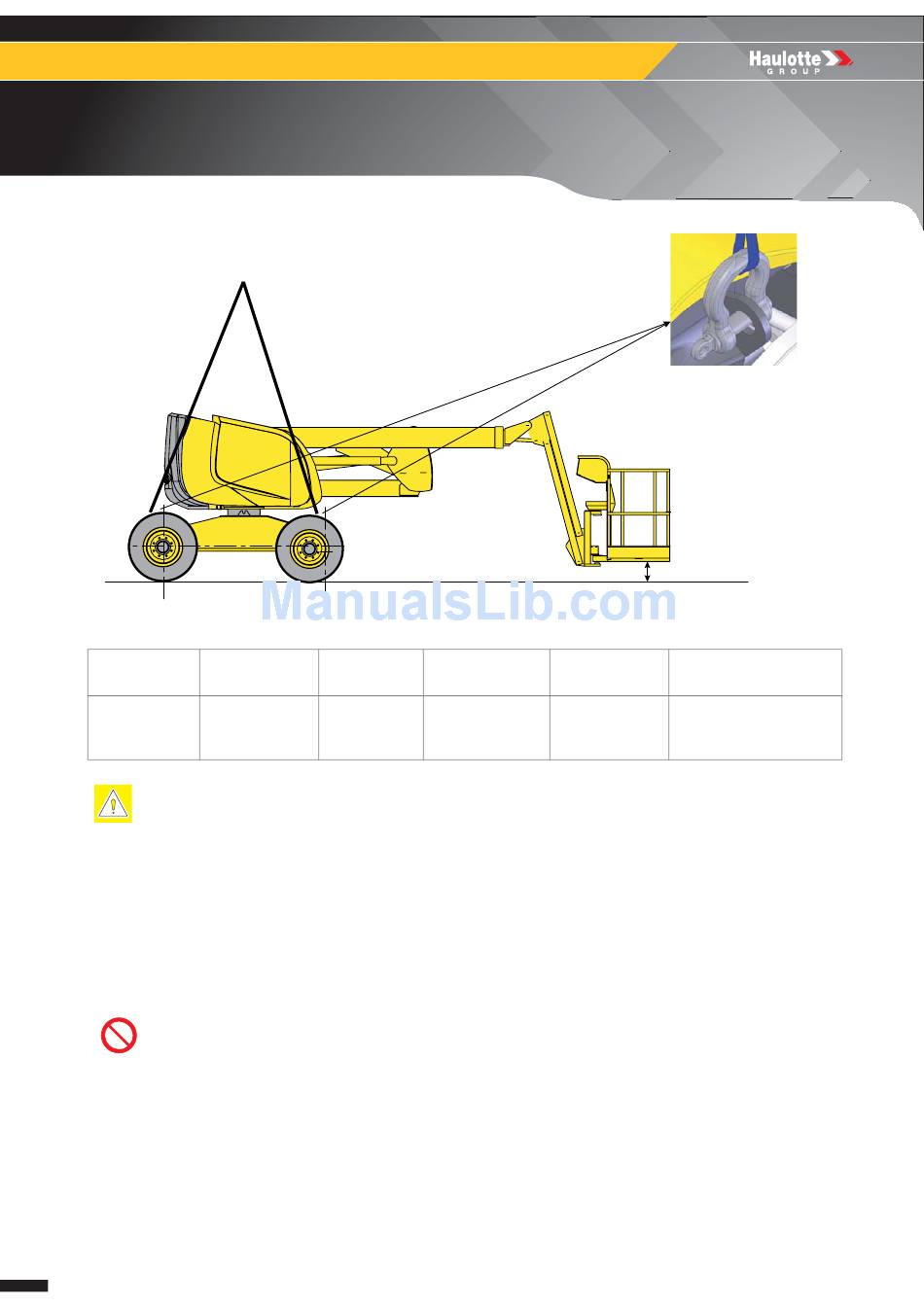

Procedure for the use of slings-HA12CJ/CJ+ - HA16(S)PX - HA18(S)PX
A
Machine
HA12CJ/CJ+
HA16(S)PX
HA18(S)PX
Before using slings, lift the jib to obtain a minimum 20 cm (8in) clearance between the ground and cage.
4.2 -

PUTTING IN TRANSPORT POSITION

The machine must be completely stowed.
1. Check the platform is completely empty.
2. Depending on the configuration of the machine, lift the arm and boom slightly, extend boom sli-
ghtly the telescope then push transport position selector ( 13 ) to the right.
3. Secure the machine to the anchorage points provided for this purpose.
4. Block the turntable with the rotation stop pin located under the turntable.
Do not transport the machine if the turntable is not locked.
88 2420332370
B
Number of
Distance C
slings
20 cm (8 in) 4
Length A Length B
5 m (16 ft 5 in) 5 m (16 ft 5 in)
E06.11
C
Maximum load per
sling and shackle
5000 DaN (11241 lbf)
EN
