Operator manual
Operator manual

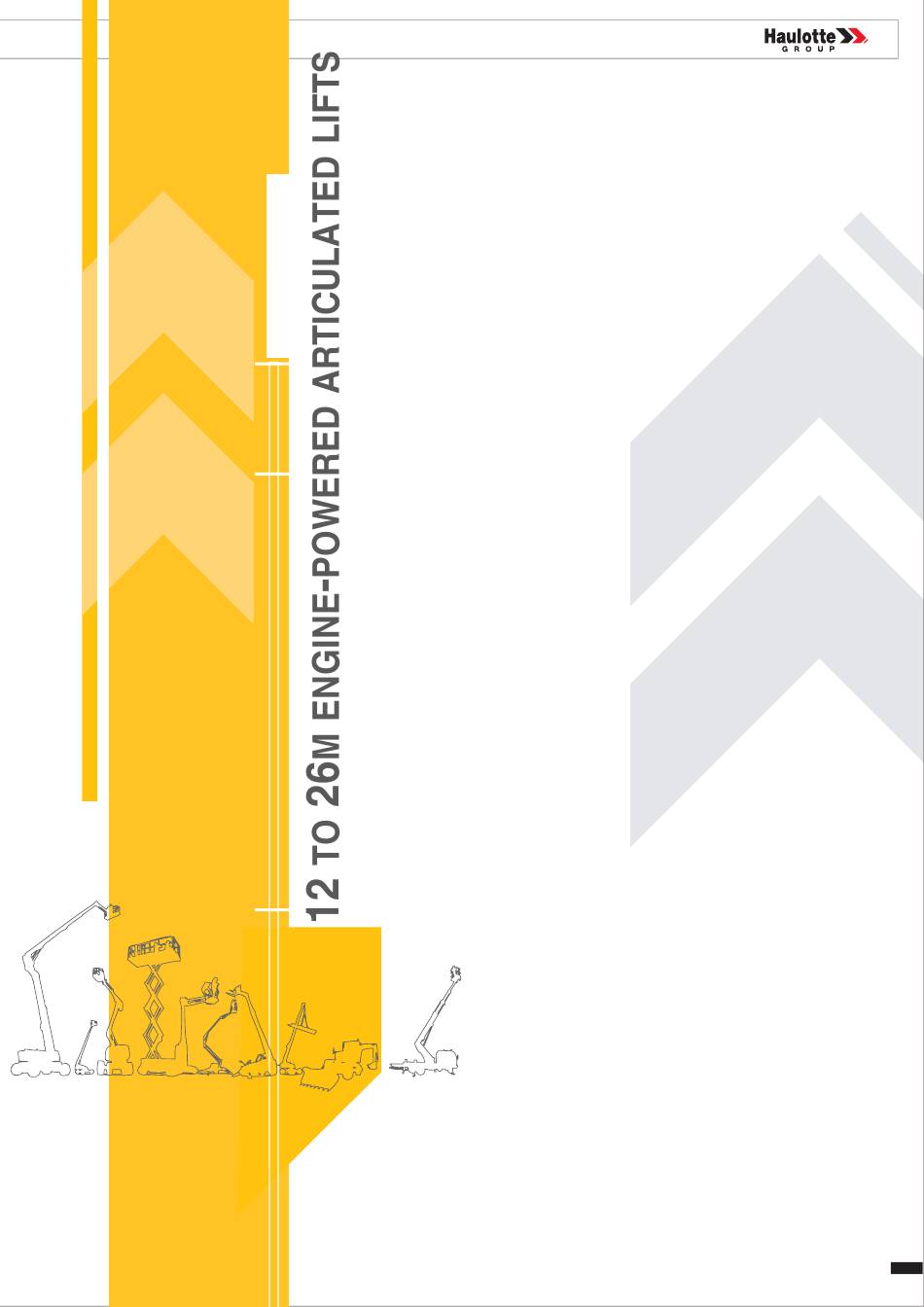

12 TO 26M ENGINE-POWERED ARTICULATED LIFTS
HA12PX (HA33JRT ) - HA16X -
HA16SPX (HA46SJRT) - HA16PX
(HA46JRT) - HA18SPX (HA51SJRT) -
HA18PX (HA51JRT) - HA20PX
(HA61JRT) - HA260PX (HA80JRT)
EN
24203 3237 0
E 09 07
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HA12PX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Haulotte HA12PX

Summary of Contents for Haulotte HA12PX

  • Page 1 Operator manual Operator manual 12 TO 26M ENGINE-POWERED ARTICULATED LIFTS HA12PX (HA33JRT ) - HA16X - HA16SPX (HA46SJRT) - HA16PX (HA46JRT) - HA18SPX (HA51SJRT) - HA18PX (HA51JRT) - HA20PX (HA61JRT) - HA260PX (HA80JRT) 24203 3237 0 E 09 07...
  • Page 2 12 to 26m engine-powered articulated lifts 24203 3237 0 E 09 07...

  • Page 3: Table Of Contents

    Operator manual CONTENTS 1 - Operator manual ......2 - After Sales Service ..... . . 3 - Conformity .
  • Page 4 Operator manual 4.1.3 - Yellow labels ........4.1.4 - Other labels .
  • Page 5 3 - Working area ......3.1 - Machine HA12PX (HA33JRT)....... .
  • Page 6 Operator manual INTERVENTION LOG 1 - Intervention log......

  • Page 7: Operator Manual

    • Contact our After Sales Service, specifying the exact machine type and its serial number. • When ordering any consumables or spare parts, please use this manual and the Haulotte Essential catalogue to receive original spare parts, the only guarantee of interchangeability and perfect operation.

  • Page 8: Conformity

    12 to 26m engine-powered articulated lifts 3 - Conformity We remind you that HAULOTTE® machines comply with the provisions of the directives currently applicable to this type of machine. Any modification without having obtained written authorization from HAULOTTE®, renders this conformity null.

  • Page 9: Safety Precautions

    The operator manual is intended for HAULOTTE® machine operators. The operator manual does not replace the basic training required for all worksite equipment operators. This manual contains the operator instructions provided by HAULOTTE® for using the machines efficiently and safely.

  • Page 10: Label Colours

    The potential dangers and specific regulations are indicated on the machine by labels and identification plates. The labels must be kept in good condition. Additional labels can be obtained from HAULOTTE Services®. Familiarize yourself with the labels and their respective color codes.

  • Page 11: Pre-Operation Instructions

    • Close to power lines. Respect the safety distance ( Section A 3.2.1- Risk of electrocution). • At temperatures higher than 45 °C (113 °F) and lower than -15 °C (5 °F). Consult HAULOTTE® if it is necessary to work outside this range.

  • Page 12: Operation Instructions

    • Never use the machine with a cluttered platform. • Never increase the surface in the platform by using floor extensions or accessories not authorized by HAULOTTE®. • Never leave the hydraulic cylinders entirely extended or retracted before switching the machine off, or during an extended stop period.

  • Page 13: Potential Risks

    12 to 26m engine-powered articulated lifts - Safety precautions • The LPG bottle must be firmly attached in the correct position. • Check the bottle and its connections regularly (every 250h) to detect any leaks. Never use matches. Always use a specially-designed leak detector product. •...

  • Page 14: Risk Of Electrocution

    12 to 26m engine-powered articulated lifts - Safety precautions 3.2.3 - Risk of electrocution This machine is not isolated and does not offer any protection. The risks of electrocution are high in the following situations : • Close to live power lines, consider the movement of the machine and the swaying of the electric power lines.

  • Page 15: Risk Of Jerks And Overturning

    12 to 26m engine-powered articulated lifts - Safety precautions 3.2.4 - Risk of jerks and overturning On board the machine, respect the following instructions : • Before engaging the machine on any internal or external surface (premises, bridge, truck, etc.), check that the ground is capable of supporting the load. Check the maximum value in the technical characteristics ( Section G 1- Main characteristics).
  • Page 16 12 to 26m engine-powered articulated lifts - Safety precautions B e a u f o r t s c a l e Meteorological Force Observed effects km/h description Calm Smoke rises vertically. 0 - 0,2 0 - 1 0 - 0,62 Smoke indicates the wind Very light breeze 0,3 - 1,5...

  • Page 17: Risk Of Burns And Explosion

    • Do not forget to drain the bottle before refilling it. • Never use pliers or a spanner to open or close the bottle valve. If a tool is required, the valve is damaged. It must therefore be replaced. Consult your HAULOTTE Services® After Sales for this purpose.

  • Page 18: Risk Of Crushing And Collision

    12 to 26m engine-powered articulated lifts - Safety precautions 3.2.6 - Risk of crushing and collision On board the machine, respect the following instructions : • During operation, keep all the parts of the body inside the platform. • Adapt the movement speed according to the ground conditions (traffic, slope, etc.). •...

  • Page 19: Intervenor's Responsibility

    The owner (or hirer) has the obligation to renew all manuals or labels that are either missing or in bad condition. Additional copies can be ordered from HAULOTTE Services®. The owner (or hirer) is responsible for applying the local regulations regarding operation.

  • Page 20: Operator's Responsibility

    The operator may only operate the machine for the purpose intended by the manufacturer. Only authorized and qualified operators may operate HAULOTTE® machines. All operators must be familiar with the emergency controls and how to operate the machine in an emergency.

  • Page 21: Inspection And Maintenance

    2 times a year or at by the employer or the latest 6 months by the intermediary after the last regular Regular visit Owner (or hirer) of HAULOTTE Maintenance book visit, and according Services® in to the local accordance with regulations the HAULOTTE Services®...
  • Page 22 12 to 26m engine-powered articulated lifts - Intervenor's responsibility 24203 3237 0 E 09 07...

  • Page 23: Machine Layout

    12 to 26m engine-powered articulated lifts - Machine layout Machine layout 1 - Identification The identification plate fixed to the rear right side of the chassis bears all the indications allowing machine identification. For any request for information, intervention or spare parts, specify the type and serial number of the machine.
  • Page 24 12 to 26m engine-powered articulated lifts - Machine layout I d e n t i f i c a t i o n p l a t e - A N S I C S A 24203 3237 0 E 09 07...

  • Page 25: Main Components

    12 to 26m engine-powered articulated lifts - Machine layout 2 - Main components 2.1 - THERMAL VERSION V i e w t h e c o m p o n e n t s H A 1 2 P X C144 24203 3237 0 E 09 07...
  • Page 26 12 to 26m engine-powered articulated lifts - Machine layout V i e w c o m p o n e n t s f o r a r t i c u l a t e d a r m s u n d e r ( 6 5 i n )
  • Page 27 12 to 26m engine-powered articulated lifts - Machine layout V i e w c o m p o n e n t s f o r a r t i c u l a t e d a r m s b e t w e e n ( 6 5 i n )
  • Page 28 12 to 26m engine-powered articulated lifts - Machine layout Marking Description Counterweight Drive wheel Document carrier Top arm Starter battery Bottom arm Top tie rod Bottom tie rod "Dead man" pedal Turntable rotation blocking pin C140 Gas bottles 1. For US only 24203 3237 0 E 09 07...

  • Page 29: Safety Devices

    12 to 26m engine-powered articulated lifts - Machine layout 3 - Safety devices 3.1 - TURNTABLE ROTATION PIN Turntable rotation pin allows blocking the turntable during transportation of the machine. After each transportation, remove the turntable rotation pin. 3.2 - SLIDING MID-RAIL The platform is composed of guardrails and a sliding midrail facilitating access to the platform.

  • Page 30: Labels

    12 to 26m engine-powered articulated lifts - Machine layout 4 - Labels 4.1 - CLASSIFICATION PLAN 4.1.1 - Red labels The red labels indicate a potentially fatal danger. C o m m o n l a b e l s Composant spécifique à...
  • Page 31 12 to 26m engine-powered articulated lifts - Machine layout S p e c i f i c l a b e l s H A 1 6 X S p e c i f i c l a b e l s H A 1 6 S P X ( H A 4 6 S J R T ) S p e c i f i c...
  • Page 32 12 to 26m engine-powered articulated lifts - Machine layout S p e c i f i c l a b e l s H A 1 6 P X ( H A 4 6 J R T ) S p e c i f i c l a b e l s H A 1 8 P X ( H A 5 1 J R T )

  • Page 33: Orange Labels

    12 to 26m engine-powered articulated lifts - Machine layout S p e c i f i c l a b e l s H A 2 6 0 P X ( H A 8 0 J R T ) 4.1.2 - Orange labels The orange labels indicate a risk of serious injury.
  • Page 34 12 to 26m engine-powered articulated lifts - Machine layout C o m m o n l a b e l s 24203 3237 0 E 09 07...
  • Page 35 12 to 26m engine-powered articulated lifts - Machine layout C o m m o n l a b e l s A N S I C S A 24203 3237 0 E 09 07...

  • Page 36: Yellow Labels

    12 to 26m engine-powered articulated lifts - Machine layout 4.1.3 - Yellow labels The yellow labels indicate a risk of material damage and/or minor injury. C o m m o n l a b e l s S p e c i f i c H A 2 0 P X ( H A 6 1 J R T ) a n d...

  • Page 37: Other Labels

    12 to 26m engine-powered articulated lifts - Machine layout S p e c i f i c l a b e l s f o r w i n t e r w e a t h e r m a c h i n e s 4.1.4 - Other labels The other labels provide additional technical information.
  • Page 38 12 to 26m engine-powered articulated lifts - Machine layout S p e c i f i c l a b e l s A N S I S p e c i f i c l a b e l s o p t i o n 24203 3237 0 E 09 07...

  • Page 39: Green Labels

    12 to 26m engine-powered articulated lifts - Machine layout 4.1.5 - Green labels Green labels provide maintenance operation or information( CSA standard). C o m m o n l a b e l s UNDER THE HOOD 24203 3237 0 E 09 07...

  • Page 40: Identification

    12 to 26m engine-powered articulated lifts - Machine layout 4.2 - IDENTIFICATION L o c a t i o n l a b e l s f o r a r t i c u l a t e d l i f t s l e s s t h a n...
  • Page 41 Only for Australia Only for Australia Only for Australia A3 A10 R7 A9 43 L a b e l d e s c r i p t i o n s - C E HA12PX Color Marking Description HA16X Quantity (HA33JRT)
  • Page 42 307P217960 Other Lower console 3078149770 307P217970 Other Identification plate 307P218080 307P218080 Other Machine name logo 307P218240 307P218230 Other Small format HAULOTTE® logo 307P218180 307P217770 Other Read the operation manual 3078143680 3078143680 Other Hydraulic oil 3078143520 3078143520 Other Biodegradable oil 3078148890...
  • Page 43 307P217950 Other Lower console 307P217920 307P217940 Other Identification plate 307P218080 307P218080 Other Machine name logo 307P218190 307P218200 Other Small format HAULOTTE® logo 307P217770 307P217770 Other Read the operation manual 3078143680 3078143680 Other Hydraulic oil 3078143520 3078143520 Other Biodegradable oil 3078148890...
  • Page 44 307P217950 Other Lower console 307P217920 307P217940 Other Identification plate 307P218080 307P218080 Other Machine name logo 307P218220 307P218210 Other Small format HAULOTTE® logo 307P217770 307P217770 Other Read the operation manual 3078143680 3078143680 Other Hydraulic oil 3078143520 3078143520 Other Biodegradable oil 3078148890...
  • Page 45 Other Lower console 307P216900 307P216900 Other Identification plate 307P218080 307P218080 Other Machine name logo 3078137650 307P216920 Other Small format HAULOTTE® logo 307P217080 307P217080 Other Large format HAULOTTE® graphic 307P217770 307P217240 Other Read the operation manual 3078143680 3078143680 Other Hydraulic oil...
  • Page 46 12 to 26m engine-powered articulated lifts - Machine layout L o c a t i o n l a b e l s f o r a r t i c u l a t e d l i f t s l e s s t h a n ( 6 5...
  • Page 47 307P217960 Other Lower console 3078149770 307P217970 Other Identification plate 307P218080 307P218080 Other Machine name logo 307P218240 307P218230 Other Small format HAULOTTE® logo 307P218180 307P217770 Other Read the operation manual 3078143680 3078143680 Other Hydraulic oil 3078143520 3078143520 Other Biodegradable oil 3078148890...
  • Page 48 307P217950 Other Lower console 307P217920 307P217940 Other Identification plate 307P218080 307P218080 Other Machine name logo 307P218190 307P218200 Other Small format HAULOTTE® logo 307P217770 307P217770 Other Read the operation manual 3078143680 3078143680 Other Hydraulic oil 3078143520 3078143520 Other Biodegradable oil 3078148890...
  • Page 49 307P217950 Other Lower console 307P217920 307P217940 Other Identification plate 307P218080 307P218080 Other Machine name logo 307P218220 307P218210 Other Small format HAULOTTE® logo 307P217770 307P217770 Other Read the operation manual 3078143680 3078143680 Other Hydraulic oil 3078143520 3078143520 Other Biodegradable oil 3078148890...
  • Page 50 Other Lower console 307P216900 307P216900 Other Identification plate 307P218080 307P218080 Other Machine name logo 3078137650 307P216920 Other Small format HAULOTTE® logo 307P217080 307P217080 Other Large format HAULOTTE® graphic 307P217770 307P217240 Other Read the operation manual 3078143680 3078143680 Other Hydraulic oil...
  • Page 51 12 to 26m engine-powered articulated lifts - Machine layout L o c a t i o n l a b e l s f o r a r t i c u l a t e d l i f t s l e s s t h a n ( 6 5...
  • Page 52 Other Upper console Other Lower console Other Identification plate 307P218170 307P218170 Other Machine name logo 3078147660 3078147680 Other Small format HAULOTTE® logo 307P217770 307P217770 Other Read the operation manual 3078147290 3078147290 Other Hydraulic oil 3078147140 3078147140 Other Biodegradable oil 3078148920...
  • Page 53 Other Lower console 307P216900 307P216900 Other Identification plate 307P218170 307P218170 Other Machine name logo 3078146940 3078147110 Other Small format HAULOTTE® logo 307P217080 307P217080 Other Large format HAULOTTE® graphic 307P217770 307P217240 Other Read the operation manual 3078147290 3078147290 Other Hydraulic oil...

  • Page 54: Consoles

    12 to 26m engine-powered articulated lifts - Machine layout 5 - Consoles N.B.-:-T HE FUNCTIONS ARE DESCRIBED FOR THE ENTIRE RANGE EFER TO THE MACHINE CONFIGURATION TO IDENTIFY THE FUNCTIONAL CONTROLS AND INDICATORS 5.1 - LOWER CONSOLE G e n e r a l v i e w 7814-306 24203 3237 0...
  • Page 55 12 to 26m engine-powered articulated lifts - Machine layout C o n t r o l s a n d i n d i c a t o r s Marking Description Function On : Engine in pre-heating Electric pre-heating LED Off : Engine pre-heated, starting possible Engine oil pressure LED Low engine oil pressure...

  • Page 56: Upper Console

    12 to 26m engine-powered articulated lifts - Machine layout 1. Perform the required maintenance (see the machine maintenance book) 2. For equipped machines 3. For equipped machines 5.2 - UPPER CONSOLE G e n e r a l v i e w H A 1 2 P X ( H A 3 3 J R T ) 24203 3237 0...
  • Page 57 12 to 26m engine-powered articulated lifts - Machine layout C o n t r o l s a n d i n d i c a t o r s H A 1 2 P X ( H A 3 3 J R T ) Marking Description Function...
  • Page 58 12 to 26m engine-powered articulated lifts - Machine layout G e n e r a l v i e w C o n t r o l s a n d i n d i c a t o r s ( S a u f H A 1 2 P X ( N A ) ) Marking...
  • Page 59 12 to 26m engine-powered articulated lifts - Machine layout Marking Description Function Pulled (activated) : Lower console power supply Emergency stop push button Pushed in (deactivated) : Power supply cut off to upper and lower consoles To the right : Anti-clockwise rotation Turntable rotation joystick To the left : Clockwise rotation Upwards : Boom elevation...
  • Page 60 12 to 26m engine-powered articulated lifts - Machine layout 24203 3237 0 E 09 07...

  • Page 61: Operating Principle

    12 to 26m engine-powered articulated lifts - Operating principle Operating principle 1 - Description Hydraulic energy for machine movement is provided by a pump unit. The controls and the starting of the thermal engine are powered by battery. To protect the staff and the machine, safety systems forbid the use of the machine beyond its capacities.

  • Page 62: Movement Speed

    O ADJUST THE SPEED OF THE OTHER MOVEMENTS THE PROPORTIONALITY OF THE JOYSTICKS MUST BE USED Except HA12PX (NA) : Movement speed of the following elements is regulated by the movement speed selector : • Jib lifting / rotation. • Platform rotation / compensation.

  • Page 63: Controller Head

    12 to 26m engine-powered articulated lifts - Operating principle 2.5 - CONTROLLER HEAD The machines are equipped with a specific controller configured for the machine functionalities. Do not interchange the controller between machines. 2.6 - DETECTION OF INTERNAL FAULT N.B.-:-T HE PRESENCE OF THIS DEVICE DEPENDS ON THE MACHINE CONFIGURATION The defect LED blinks to indicate an internal malfunction.

  • Page 64: Machine Tilt

    To restore the driving function, only movements allowing the machine to be folded are permitted : • Telescope retraction. • Raising or lowering the boom to return to the horizontal position. • Lowering the arm. For HA12PX (HA33JRT) - HA16PX (HA46JRT) - HA18PX (HA51JRT) - HA16SPX (HA46SJRT) - HA18SPX (HA51SJRT) - If the machine is located on a slope with authorized tilt, the operator is warned by the tilt LED on the upper console and the buzzer.

  • Page 65: Radius Limitation

    12 to 26m engine-powered articulated lifts - Operating principle 2.10 - RADIUS LIMITATION For HA260PX (HA80JRT) N.B.-:-T HE PRESENCE OF THIS DEVICE DEPENDS ON THE MACHINE CONFIGURATION The radius limitation LED (orange) on the upper console is a visual indicator. •...
  • Page 66 12 to 26m engine-powered articulated lifts - Operating principle 24203 3237 0 E 09 07...

  • Page 67: Driving

    12 to 26m engine-powered articulated lifts - Driving Driving 1 - Recommendations The manager of the company where the machine is commissioned must ensure that the machine is fit for function. i.e. that the machine is suitable to carry out the work in complete safety in compliance with the user manual.

  • Page 68: Environment

    12 to 26m engine-powered articulated lifts - Driving • Hydraulic oil level. • State of the hydraulic unit and pump (leakage, loose component, etc.). • State of the consoles. • State of the guard rail and the sliding midrail. • Excessive mechanical clearance. •...

  • Page 69: Functional Tests

    12 to 26m engine-powered articulated lifts - Driving 2.2 - FUNCTIONAL TESTS 2.2.1 - Safety features Elements to be tested : • Operation of the upper and lower emergency stop push buttons. • Operation of the tilt control box. • Visual and audio alarms. •...

  • Page 70: Upper Console Controls

    12 to 26m engine-powered articulated lifts - Driving 2.2.3 - Upper console controls Refer to the corresponding operations to test the controls in the order mentioned Section E 3.3- Operations from the platform). T e s t s f r o m t h e u p p e r c o n s o l e...

  • Page 71: Regular Checks

    12 to 26m engine-powered articulated lifts - Driving Step Control Horn selector P43 T e s t s f r o m t h e u p p e r c o n s o l e H A 1 6 S P X ( H A 4 6 S J R T ) H A 1 8 S P X ( H A 5 1 S J R T )

  • Page 72: Repairs And Adjustments

    HAULOTTE Services® technicians are specially trained to the requirements of our machines and have genuine spare parts, all the necessary documentation and tools required. If one of these safety instructions is not complied with, HAULOTTE Services® can in no way be held responsible for the consequences.

  • Page 73: Usage

    12 to 26m engine-powered articulated lifts - Driving 3 - Usage N.B.-:-T HE FUNCTIONS ARE DESCRIBED FOR THE ENTIRE RANGE EFER TO THE MACHINE CONFIGURATION TO IDENTIFY THE FUNCTIONAL CONTROLS AND INDICATORS 3.1 - TEST PROCEDURE 3.1.1 - Emergency stop push button function L o w e r c o n s o l e e m e r g e n c y...

  • Page 74: Weighing System

    12 to 26m engine-powered articulated lifts - Driving 3.1.4 - Weighing system Pull the emergency stop push buttons P15, P46. Switch the machine on P72. Upper console platform overload LED ( P30 ) flashes. 3.2 - GROUND OPERATIONS 3.2.1 - Machine start-up Pull the emergency stop push button P15.

  • Page 75: Machine Shutdown

    - Driving S t a r t e r For : HA12PX (HA33JRT) and for HA16X - HA16PX - HA18PX - HA16SPX - HA18SPX (N/A - HA46JRT - HA51JRT - HA46SJRT - HA51SJRT) Winter option Pull the emergency stop push button P15.

  • Page 76: Movement Control

    12 to 26m engine-powered articulated lifts - Driving 3.2.3 - Movement control L o w e r c o n s o l e c o n t r o l s H A 1 2 P X ( H A 3 3 J R T ) H A 1 6 S P X ( H A 4 6 S J R T ) H A 1 8 S P X...
  • Page 77 12 to 26m engine-powered articulated lifts - Driving Control Action Push the platform compensation selector ( P13 ) upwards to raise the platform. Platform compensation Push the platform compensation selector ( P13 ) downwards to lower the platform. N.B.-:-T HE RELEASE OF THE SELECTOR CAUSES ALL MOVEMENT TO STOP L o w e r c o n s o l e c o n t r o l s...

  • Page 78: Other Controls

    12 to 26m engine-powered articulated lifts - Driving 3.2.4 - Other controls • Switching from the lower console to the upper console : The emergency stop push button ( P15 ) must be pulled. • Turn the console activation selector ( P72 ) to the left to activate the upper console. The controls of the lower console are de-activated.

  • Page 79: Petrol/Gas

    12 to 26m engine-powered articulated lifts - Driving • Petrol/gas : For : HA16PX (HA46JRT)-HA18PX (HA51JRT) Petrol/gas changeover While the engine is running : • Open the gas bottle valve. • Set the fuel selector ( P23 ) to Gas. Gas/petrol changeover While the engine is running : •...

  • Page 80: Operations From The Platform

    12 to 26m engine-powered articulated lifts - Driving 3.3 - OPERATIONS FROM THE PLATFORM 3.3.1 - Machine start-up Pull the emergency stop push button P46. Press on the starter selector P42. The engine starts. The power-up LED ( P31 ) lights Let the engine heat up.

  • Page 81: Movement Control

    12 to 26m engine-powered articulated lifts - Driving 3.3.3 - Movement control Activate the controls and the "Dead man" system simultaneously to execute the different movements. U p p e r c o n s o l e c o n t r o l s H A 1 2 P X ( H A 3 3 J R T ) Control...
  • Page 82 12 to 26m engine-powered articulated lifts - Driving Control Action Push the turntable rotation sensitive selector ( P69 ). Push the turntable rotation joystick ( P52 ) forwards for clockwise rotation. Turntable rotation Push the turntable rotation joystick ( P52 ) backwards for anti- clockwise rotation.
  • Page 83 12 to 26m engine-powered articulated lifts - Driving U p p e r c o n s o l e c o n t r o l s H A 1 6 X Control Action Push the drive joystick ( P33 ) forwards to move machine forwards. Driving Push the drive joystick ( P33 ) backwards to reverse the machine.
  • Page 84 12 to 26m engine-powered articulated lifts - Driving Control Action Push the platform compensation selector ( P40 ) upwards to raise the platform. Platform compensation Push the platform compensation selector ( P40 ) downwards to lower the platform. Position the driving speed selector ( P71 ) on for fast driving (long distance driving, tarmac, concrete).
  • Page 85 12 to 26m engine-powered articulated lifts - Driving U p p e r c o n s o l e c o n t r o l s H A 1 6 S P X ( H A 4 6 S J R T ) - H A 1 8 S P X ( H A 5 1 S J R T ) - H A 1 6 P X ( H A 4 6 J R T ) - H A 1 8 P X...

  • Page 86: Other Controls

    12 to 26m engine-powered articulated lifts - Driving Control Action Push the platform rotation selector ( P38 ) to the right for an anti- clockwise rotation. Platform rotation Push the platform rotation selector ( P38 ) to the left for a clockwise rotation.

  • Page 87: Special Procedure

    12 to 26m engine-powered articulated lifts - Special procedure Special procedure 1 - Emergency lowering 1.1 - PRINCIPLE Emergency lowering is required if the operator in the platform is no longer capable of controlling the movements even though the machine operates normally. An operator on the ground, trained in using the emergency controls and in possession of the starter key, can use the lower console with the main power source to lower the operator in the platform.

  • Page 88: Towing Service

    Execute these operations on flat, horizontal ground. Failing that, block the wheels to immobilize the machine. For : HA12PX (HA33JRT) - HA16X - HA16SPX (HA46SJRT) - HA18SPX (HA51SJRT) Unscrew the central nut ( 1 ) until the nut is at the limit.

  • Page 89: Towing Service

    12 to 26m engine-powered articulated lifts - Special procedure The gears are released. For : HA20PX (HA61JRT) - HA260PX (HA80JRT) Unscrew the cap ( 1 ) (Central nut). Remove the spline pin ( 2 ) using a 6 x 50 screw. Screw on the cap again ( 1 ).

  • Page 90: Reconnect Unit

    - Special procedure 2.3 - RECONNECT UNIT After repairing the machine, reconnect the wheel gears. For HA16SPX (HA46SJRT) - HA18SPX (HA51SJRT) - HA12PX (HA33JRT) - HA16X • Machine without chocks Screw the central nut up again to engage the jaw clutch.

  • Page 91: Loading And Unloading

    12 to 26m engine-powered articulated lifts - Special procedure 3 - Loading and unloading N.B.-:-W HAULOTTE® HILE CROSSING THE RAMPS DURING LOADING OR UNLOADING RECOMMENDS POSITIONING THE COUNTERWEIGHT AT THE REAR Lift the platform again to avoid contact with the ground.

  • Page 92: Putting In Transport Position

    12 to 26m engine-powered articulated lifts - Special procedure 3.2 - PUTTING IN TRANSPORT POSITION The machine must be completely stowed. Check the absence of load in the platform. Depending on the configuration of the machine, engage the transport position selector ( P13 ) to the right.
  • Page 93 ( H A 8 0 J R T ) Pmax Pmax L o a d i n g c h a r a c t e r i s t i c s HA12PX Marking Description HA16X (HA33JRT) 1,64 m (5 ft 4 in)

  • Page 94: Unloading

    12 to 26m engine-powered articulated lifts - Special procedure L o a d i n g c h a r a c t e r i s t i c s HA18SPX HA18PX Marking Description (HA51SJRT) (HA51JRT) 2,00 m (6 ft 6 in) 2,00 m (6 ft 6 in) Lateral distance between the wheels 8.2 daN/cm2...

  • Page 95: Warning

    12 to 26m engine-powered articulated lifts - Special procedure 3.4 - WARNING On starting a machine that has been secured then transported, the safety system can detect a false overload forbidding all movement from the upper console. To reinitialize the system, lift the jib by a few centimetres from the lower console. Push the transport position selector ( P13 ) to the left to set the machine to operating position.

  • Page 96: Detection Of Internal Fault

    12 to 26m engine-powered articulated lifts - Special procedure 4 - Detection of internal fault 4.1 - PRINCIPLE For equipped machines. • The machine is equipped with an internal defect detection system. • The number of times the defect LED flashes indicates the type of fault to the operator. •...

  • Page 97: Gas Bottle Installation

    12 to 26m engine-powered articulated lifts - Special procedure 5 - Gas bottle installation F o r H A 1 6 P X ( H A 4 6 J R T ) - H A 1 8 P X ( H A 5 1 J R T ) There are 2 bottles of gas, one on either side of the machine( 1 ).

  • Page 98: Gas Bottle Connection

    12 to 26m engine-powered articulated lifts - Special procedure 6 - Gas bottle connection Place the gas bottle in its holder. Connect pipe ( 3 ) to valve ( 1 ). Tighten the coupling by hand( 2 ) Open the gas bottle valve. Do not forget to shut off the valve when the machine is no longer running.

  • Page 99: Gas Bottle Removal

    12 to 26m engine-powered articulated lifts - Special procedure 7 - Gas bottle removal Make sure that there are no open flames or incandescent sources close to the machine. Make sure that the emergency stop button on the lower console has been pressed. Close the gas bottle valve( 1 ).
  • Page 100 12 to 26m engine-powered articulated lifts - Special procedure 24203 3237 0 E 09 07...

  • Page 101: Technical Characteristics

    - F o r H A 1 2 P X ( H A 3 3 J R T ) - H A 1 6 X Machine HA12PX (HA33JRT) HA16X International Imperial International...
  • Page 102 12 to 26m engine-powered articulated lifts - Technical characteristics Machine HA12PX (HA33JRT) HA16X International Imperial International Imperial Characteristics system system system system Capacity of the hydraulic tank 100 l (26 gal US) 100 l (26 gal US) Starter battery 12 V-95 Ah...
  • Page 103 12 to 26m engine-powered articulated lifts - Technical characteristics T e c h n i c a l c h a r a c t e r i s t i c s - F o r H A 1 6 P X ( H A 4 6 J R T ) H A 1 8 P X ( H A 5 1 J R T )
  • Page 104 12 to 26m engine-powered articulated lifts - Technical characteristics Machine HA16PX (HA46JRT) HA18PX (HA51JRT) International Imperial International Imperial Characteristics system system system system Slew ring torque 21,5 daN.m (158 lbf.ft) 21,5 daN.m (158 lbf.ft) Maximum pressure on hard ground 8 bar (116 psi) 8,2 bar (118 psi)
  • Page 105 12 to 26m engine-powered articulated lifts - Technical characteristics T e c h n i c a l c h a r a c t e r i s t i c s - F o r H A 1 6 S P X ( H A 4 6 S J R T ) H A 1 8 S P X ( H A 5 1 S J R T )
  • Page 106 12 to 26m engine-powered articulated lifts - Technical characteristics Machine HA16SPX (HA46SJRT) HA18SPX (HA51SJRT) International Imperial International Imperial Characteristics system system system system Maximum pressure on hard ground 10,1 bar (146 psi) 13 bar (188 psi) Maximum pressure on soft ground 3 bar (43 psi) 3,5 bar...
  • Page 107 12 to 26m engine-powered articulated lifts - Technical characteristics T e c h n i c a l c h a r a c t e r i s t i c s - F o r H A 2 0 P X ( H A 6 1 J R T ) H A 2 6 0 P X ( H A 8 0 J R T )
  • Page 108 12 to 26m engine-powered articulated lifts - Technical characteristics Machine HA20PX (HA61JRT) HA260PX (HA80JRT) International Imperial International Imperial Characteristics system system system system Maximum pressure on hard ground 12 bar (174 psi) 13 bar (188 psi) Maximum pressure on soft ground 6 bar (87 psi) 6,2 bar...

  • Page 109: Overall Dimensions

    12 to 26m engine-powered articulated lifts - Technical characteristics 2 - Overall dimensions G e n e r a l d i a g r a m H A 1 2 P X ( H A 3 3 J R T ) H A 1 6 P X ( H A 4 6 J R T ) H A 1 8 P X...
  • Page 110 - Technical characteristics O v e r a l l d i m e n s i o n s p e c i f i c a t i o n s Marking HA12PX (HA33JRT) Mètre Feet inch 5,50 18-0...
  • Page 111 12 to 26m engine-powered articulated lifts - Technical characteristics O v e r a l l d i m e n s i o n s p e c i f i c a t i o n s Marking HA20PX (HA61JRT) HA260PX (HA80JRT) Mètre...
  • Page 112 12 to 26m engine-powered articulated lifts - Technical characteristics G e n e r a l d i a g r a m H A 1 6 X 24203 3237 0 E 09 07...
  • Page 113 12 to 26m engine-powered articulated lifts - Technical characteristics O v e r a l l d i m e n s i o n s p e c i f i c a t i o n s Marking HA16X Mètre Feet inch...

  • Page 114: Working Area

    12 to 26m engine-powered articulated lifts - Technical characteristics 3 - Working area 3.1 - MACHINE HA12PX (HA33JRT) W o r k i n g a r e a ft in -3 f t 1in 3 f t 1in 6 f t 6in 9 f t 10in 13 f t 1in 16 f t 4in 19 f t 8in 22 f t 11in...

  • Page 115: Machine Ha16X

    12 to 26m engine-powered articulated lifts - Technical characteristics 3.2 - MACHINE HA16X W o r k i n g a r e a ft in -6ft 56in -6ft 56in 6ft 56in 6ft 56in 13ft 10in 13ft 10in 19ft 8in 19ft 8in 26ft 2in 26ft 2in...

  • Page 116: Machine Ha16Px (Ha46Jrt)

    12 to 26m engine-powered articulated lifts - Technical characteristics 3.3 - MACHINE HA16PX (HA46JRT) W o r k i n g a r e a ft in -5ft -5ft 10ft 10ft 15ft 15ft 20ft 20ft 25ft 25ft 30ft 30ft 35ft 35ft 55ft 55ft...

  • Page 117: Machine Ha18Px (Ha51Jrt)

    12 to 26m engine-powered articulated lifts - Technical characteristics 3.4 - MACHINE HA18PX (HA51JRT) W o r k i n g a r e a ft in -5ft -5ft 10ft 10ft 15ft 15ft 20ft 20ft 25ft 25ft 30ft 30ft 35ft 35ft 55ft 55ft...

  • Page 118: Machine Ha16Spx (Ha46Sjrt)

    12 to 26m engine-powered articulated lifts - Technical characteristics 3.5 - MACHINE HA16SPX (HA46SJRT) W o r k i n g a r e a ft in -6ft 56in -6ft 56in 6ft 56in 6ft 56in 13ft 10in 13ft 10in 19ft 8in 19ft 8in 26ft 2in 26ft 2in...

  • Page 119: Machine Ha18Spx (Ha51Sjrt)

    12 to 26m engine-powered articulated lifts - Technical characteristics 3.6 - MACHINE HA18SPX (HA51SJRT) W o r k i n g a r e a ft in -6ft 56in -6ft 56in 6ft 56in 6ft 56in 13ft 10in 13ft 10in 19ft 8in 19ft 8in 26ft 2in 26ft 2in...

  • Page 120: Machine Ha20Px (Ha61Jrt)

    12 to 26m engine-powered articulated lifts - Technical characteristics 3.7 - MACHINE HA20PX (HA61JRT) W o r k i n g a r e a ft in 6ft 6in 19ft 8in 26ft 2in 32ft 9in -13ft 10in 13ft 10in 39ft 4in 42ft 7in -6ft 6in 21 m...

  • Page 121: Machine Ha260Px (Ha80Jrt)

    12 to 26m engine-powered articulated lifts - Technical characteristics 3.8 - MACHINE HA260PX (HA80JRT) W o r k i n g a r e a ft in -13ft 10in -13ft 10in -6ft 6in -6ft 6in 6ft 6in 6ft 6in 13ft 10in 13ft 10in 19ft 8in 19ft 8in...

  • Page 122: Ansi Standard Specificities

    The overload test is at 125% of the nominal load. See paragraph 1.12.3 of standard AS1418.10-1996 for test details. L o a d t a b l e Test load Machine Pound (lb) Kilogramme (kg) HA12PX (HA33JRT) 633,8 287,5 HA16X 633,8 287,5 HA16PX (HA46JRT) 633,8...

  • Page 123: Operational Test

    12 to 26m engine-powered articulated lifts - Technical characteristics 4.2 - OPERATIONAL TEST Operational tests have proved the following facts : • The machine has performed all movements without jerking, while carrying the nominal load. • All safety systems are operating correctly. •...
  • Page 124 12 to 26m engine-powered articulated lifts - Technical characteristics S t a b i l i t y f o r H A 1 2 P X ( H A 3 3 J R T ) 24203 3237 0 E 09 07...
  • Page 125 12 to 26m engine-powered articulated lifts - Technical characteristics S t a b i l i t y t a b l e f o r H A 1 6 P X ( H A 4 6 J R T ) Moment of tipping over (°) Kilogramme...
  • Page 126 12 to 26m engine-powered articulated lifts - Technical characteristics S t a b i l i t y t a b l e f o r H A 1 8 P X ( H A 5 1 J R T ) Moment of tipping over Mètre (°)
  • Page 127 12 to 26m engine-powered articulated lifts - Technical characteristics S t a b i l i t y t a b l e f o r H A 2 0 P X ( H A 6 1 J R T ) Moment of tipping over Mètre (°)
  • Page 128 12 to 26m engine-powered articulated lifts - Technical characteristics S t a b i l i t y t a b l e f o r H A 2 6 0 P X ( H A 8 0 S J R T ) Moment of tipping over (°) Mètre...
  • Page 129 Intervention log 1 - Intervention log In order to benefit from the HAULOTTE® guarantee, each maintenance or repair operation must figure in the INTERVENTION LOG, which can be found at the end of the maintenance book delivered with your machine.
  • Page 130 12 to 26m engine-powered articulated lifts - Intervention log 24203 3237 0 E 09 07...

This manual is also suitable for:

Ha16xHa16spxHa16pxHa18spxHa18pxHa20px ... Show all

Table of Contents

Save PDF
