To change the PCI riser card to a PCIe x4 riser card, first remove the PCI riser
card. Then insert the PCIe x4 riser card and affix it in place using two screws.
2.5.7
Rear Cover Installation
PPC-6151C/6171C/6191C User Manual

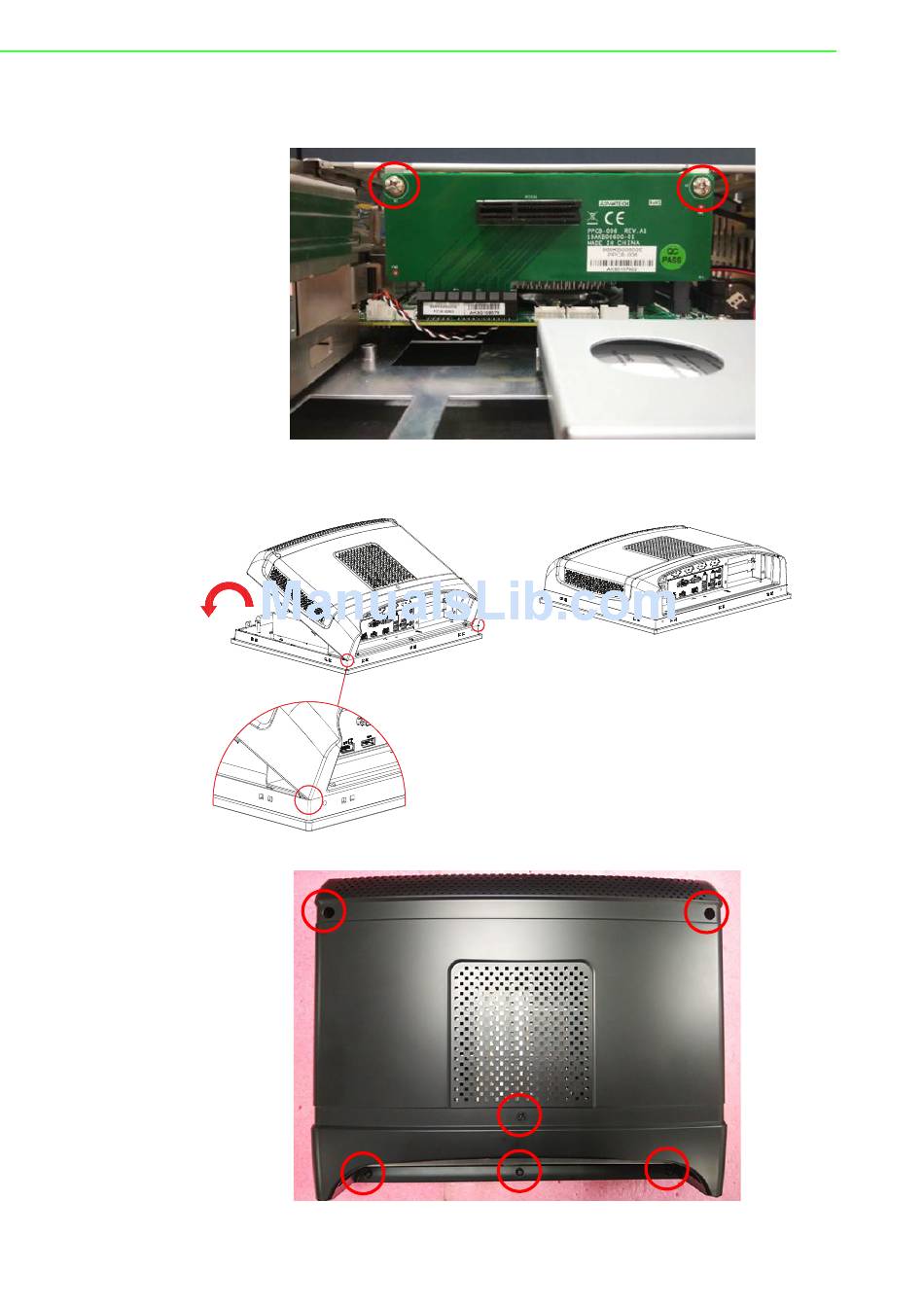

Please refer to the above figures for rear cover installation.
Align the left and right bottom corners of rear cover and front
panel (refer to the red circles shown). Follow the direction
of the red arrow for installation.
