2.
To change the PCI riser card to a PCIe x4 riser card, first remove the PCI riser
card. Then insert the PCIe x4 riser card and affix it into place with two screws.
2.5.7
Rear Cover Installation
PPC-6151C/6171C User Manual

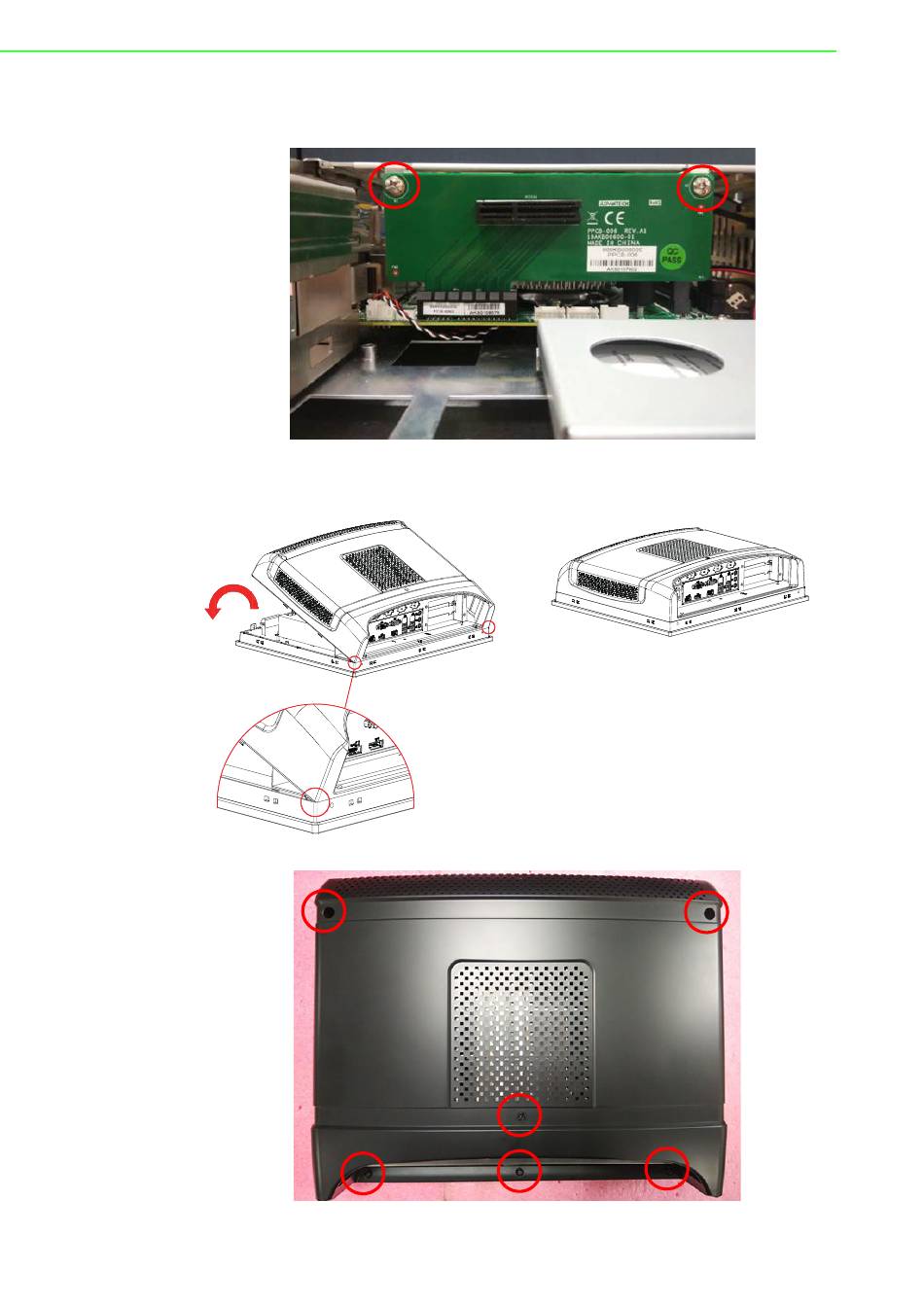

Please refer to above figures for rear cover installation.
Align left and right bottom corners of rear cover and front
panel (refer to red circles shown), and along with the red
arrow direction for installation.
34
