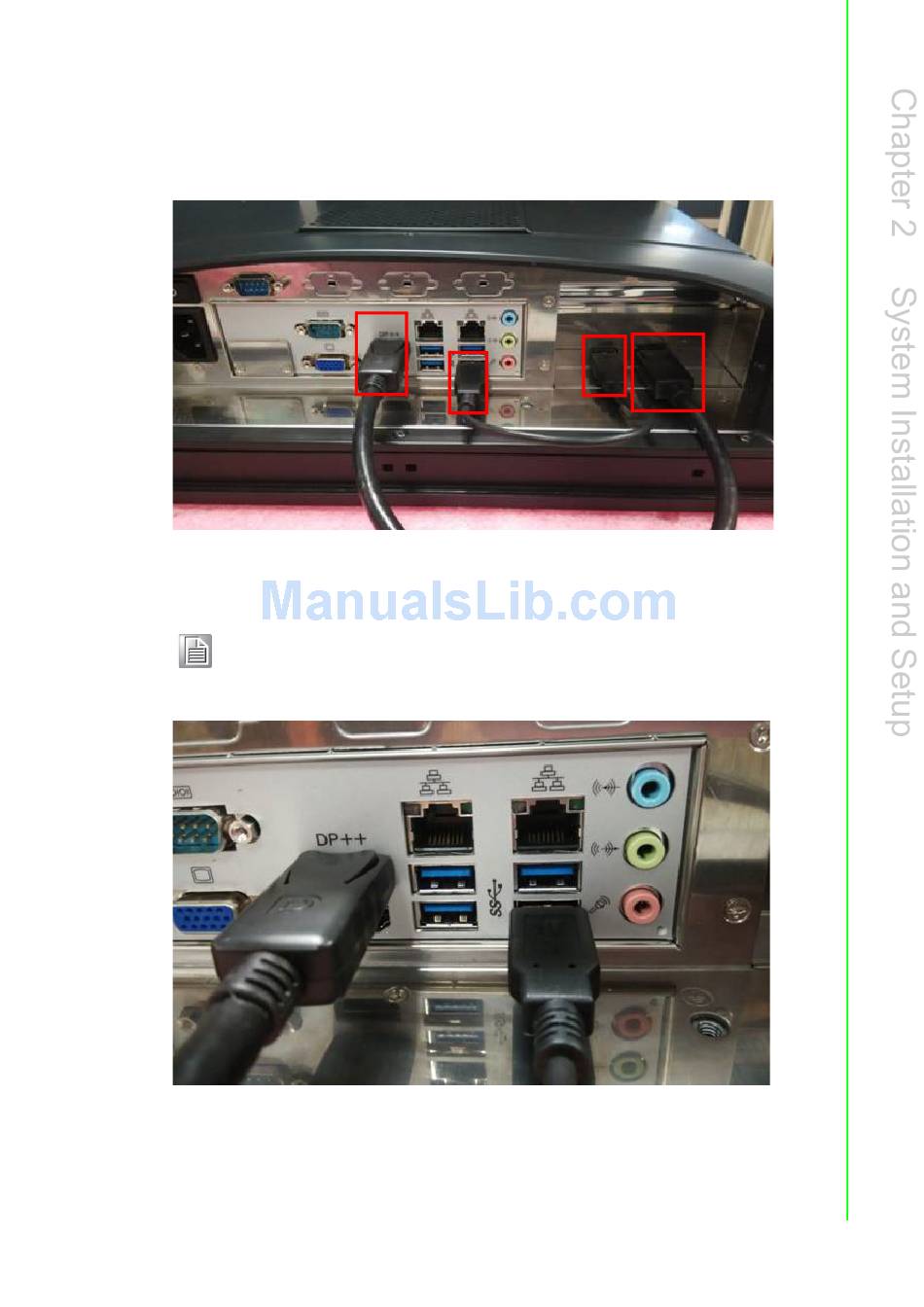

Connect the Daughter Board and Motherboard Using a Cable
1.
Connect the DP input port with the motherboard DP port to enable the display.
Connect the USB Input port with a motherboard USB port to enable touch func-
tion. (Cables are included in the accessory box.)
2.
Connect the motherboard.
Note!
Use a DP cable to connect the motherboard DP port and the chassis DP
input port. Use a USB cable to connect one of the motherboard USB
ports. The motherboards must have a DP port.
DP
USB
27
PPC-6151C/6171C/6191C User Manual
USB
DP
