2.6

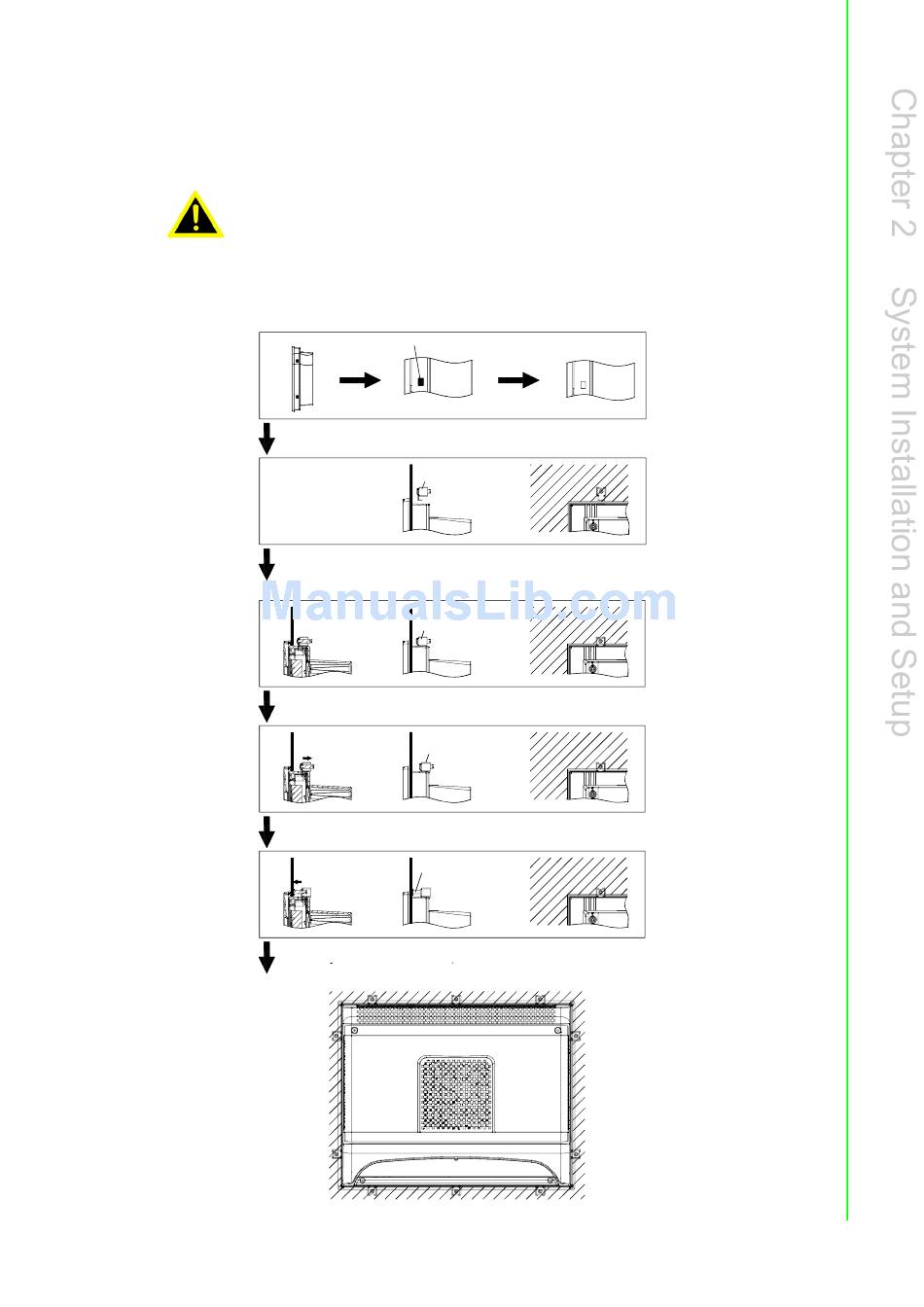

Mount Installation
Warning! When mounting the panel PC, we recommend having at least one other
person to assist with the mounting in order to prevent accidental dam-
age to the panel and/or personal injury.
Panel Mount Bracket Installation
Plastic Plug
Remove the plastic plugs around the machine using tweezers.
Panel mount
bracket
Put the machine into the cabinet and get the wall mount brackets.
Panel mount
bracket
Fix the machine in place by tightening the screws.
Panel mount
bracket
Replace the plastic plugs according to the arrow and hookup machine.
Screw
Fix the machine in place by tightening the screws.
37
PPC-6151C/6171C/6191C User Manual
