3.

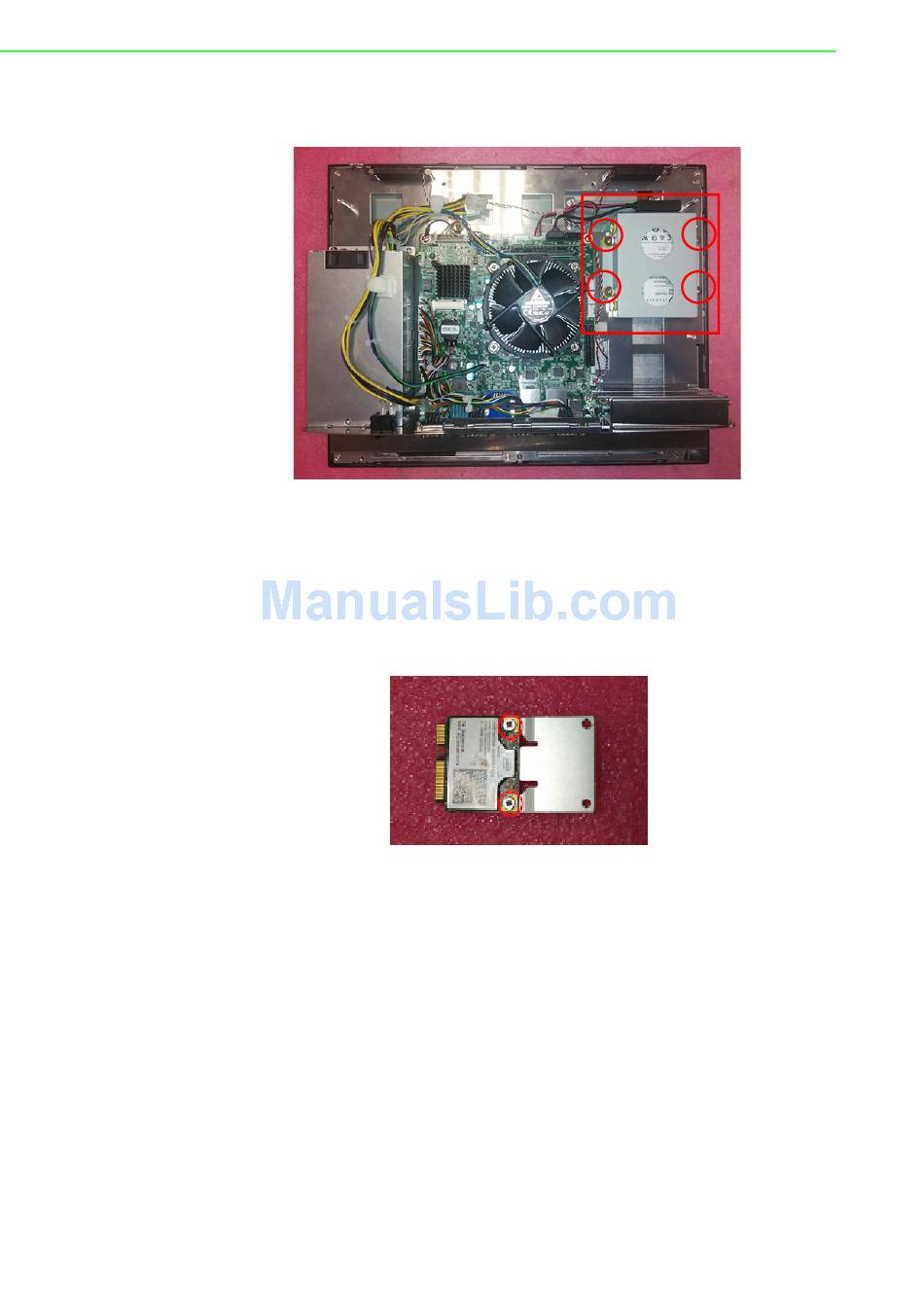

Reattach the HDD bracket and connect the SATA HDD cable. The assembled
HDD module should appear as shown below.
2.5.5
Wi-Fi Module Installation
In the procedures listed below for installing a wireless LAN card, a PPC-WLAN-A1E
motherboard is used in the example images.
1.
Attach the wireless LAN card to the ironware bracket using the screws provided
with the Wi-Fi module.
PPC-6151C/6171C/6191C User Manual
32
