3.

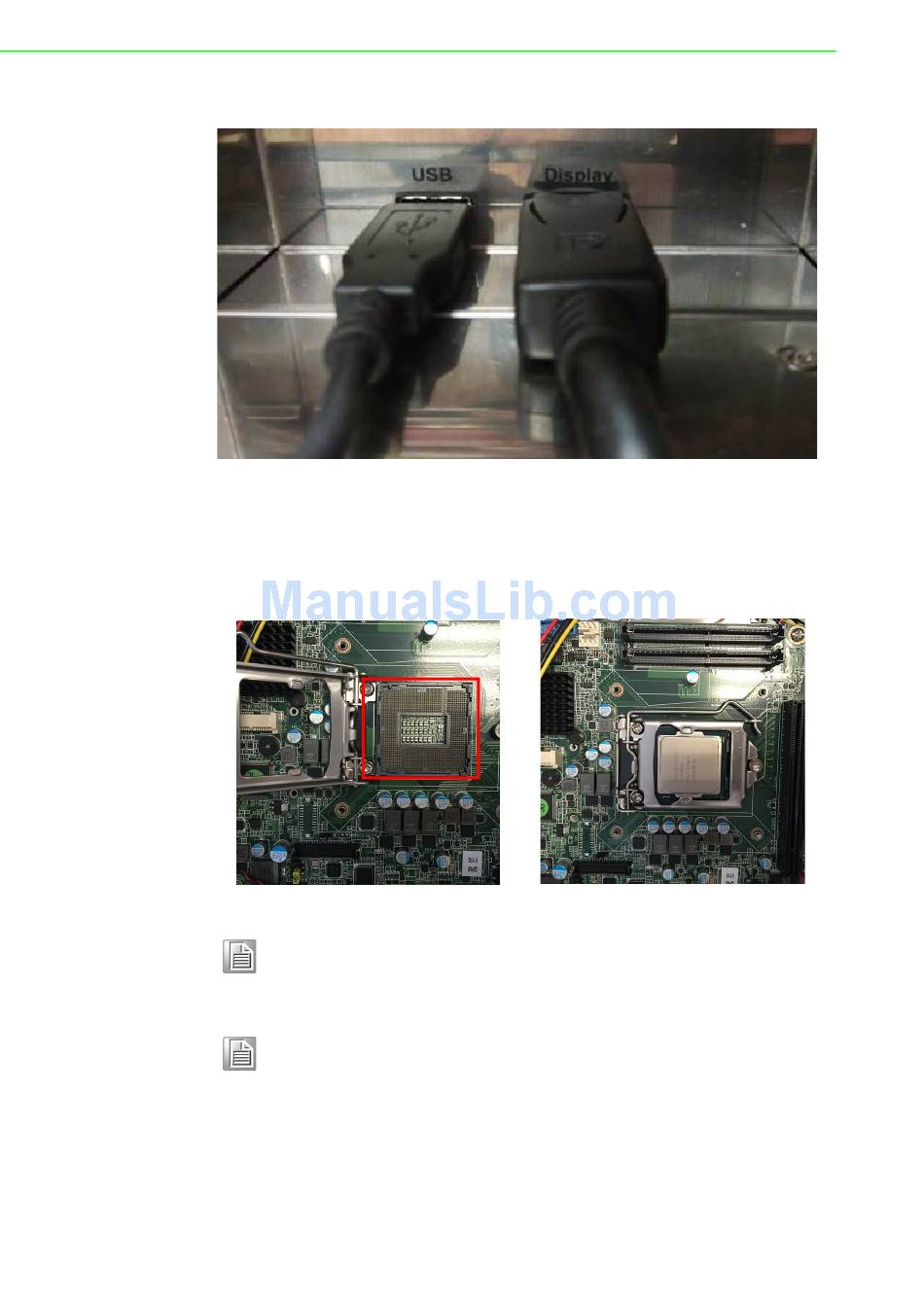

Connect the daughter board.
2.5
Component Setup
2.5.1
CPU Installation
Remove the CPU socket cover and install the CPU.
Note!
Exercise caution when handling the motherboard CPU pins.
Refer to the datasheet when selecting the motherboard CPU.
Note!
After CPU installation, ensure the CPU surface is covered in thermal
grease. (Thermal grease is included in the PPC-MB-8260AE mother-
board accessory box.)
PPC-6151C/6171C/6191C User Manual
