Environment
Note! *1 x DP (for connecting the motherboard and LVDS panel)
**1 x USB 2.0 (for connecting the motherboard and touch controller)
1.5

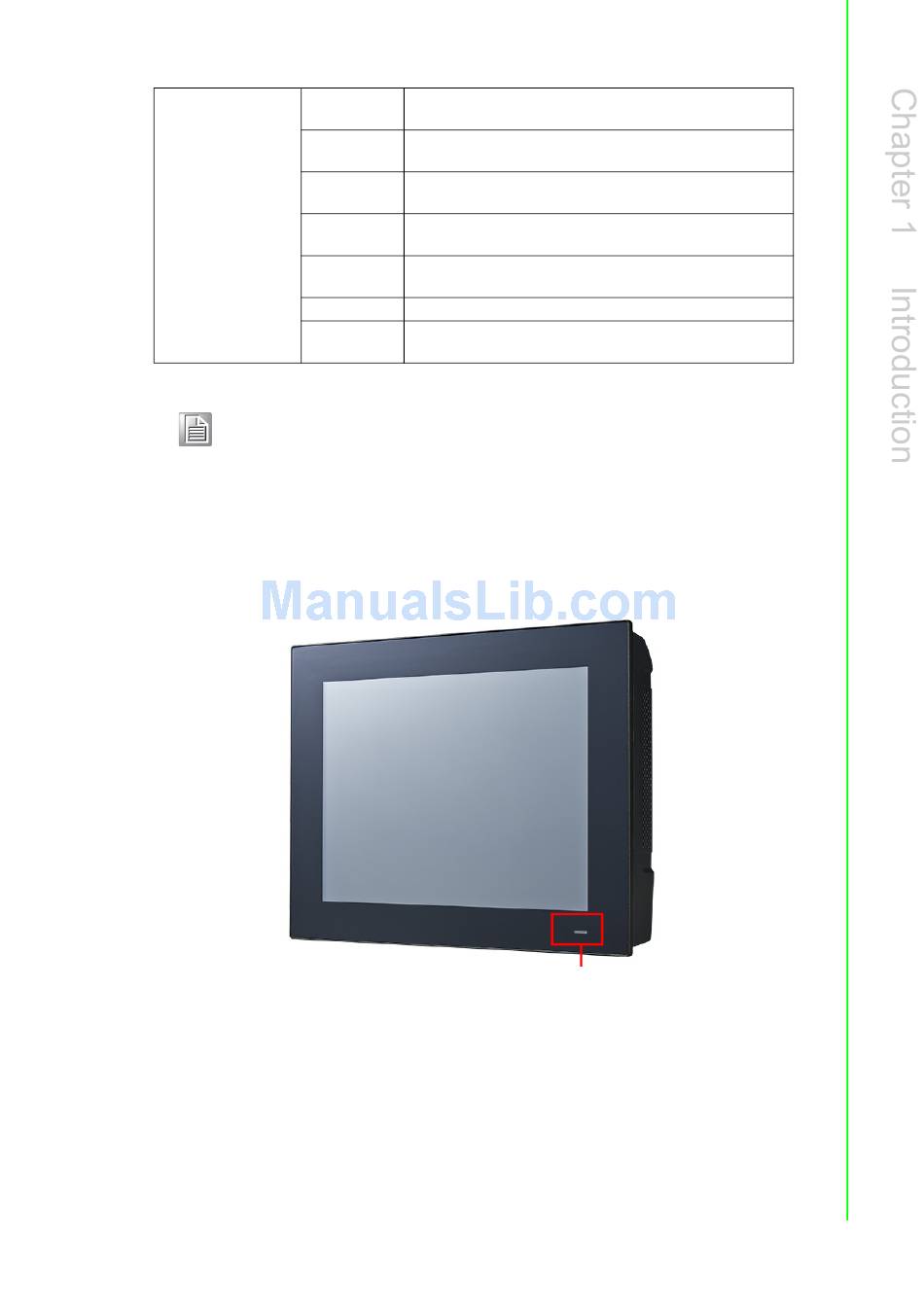

External View

The front of PPC-6151C/6171C/6191C is a flat panel LCD screen enclosed in an alu-
minium frame. (When placed upright on a desk, the PPC-6151C/6171C/6191C front
panel appears as shown below.)
Operating
0 ~ 50 °C (32 ~ 122 °F)
Temperature
Storage
-30 ~ 60 °C (-22 ~ 140 °F)
Temperature
Relative
10 ~ 95% @ 40 °C (non-condensing)
Humidity
Operating 10 G peak acceleration (11 ms duration), fol-
Shock
lows IEC 60068-2-27
Operating random vibration test 5 ~ 500Hz, 1Grms
Vibration
@with HDD, follows IEC 60068-2-64
EMC CE, FCC Class A
Front Panel
IP65 compliant
Protection
PPC-6151C/6171C/6191C-RTAE
PPC-6151C/6171C/6191C-RMAE
5
Off (S3, S4, S5): orange; On (S0): blue
Off (S3, S4, S5): orange or off; On (S0): blue
