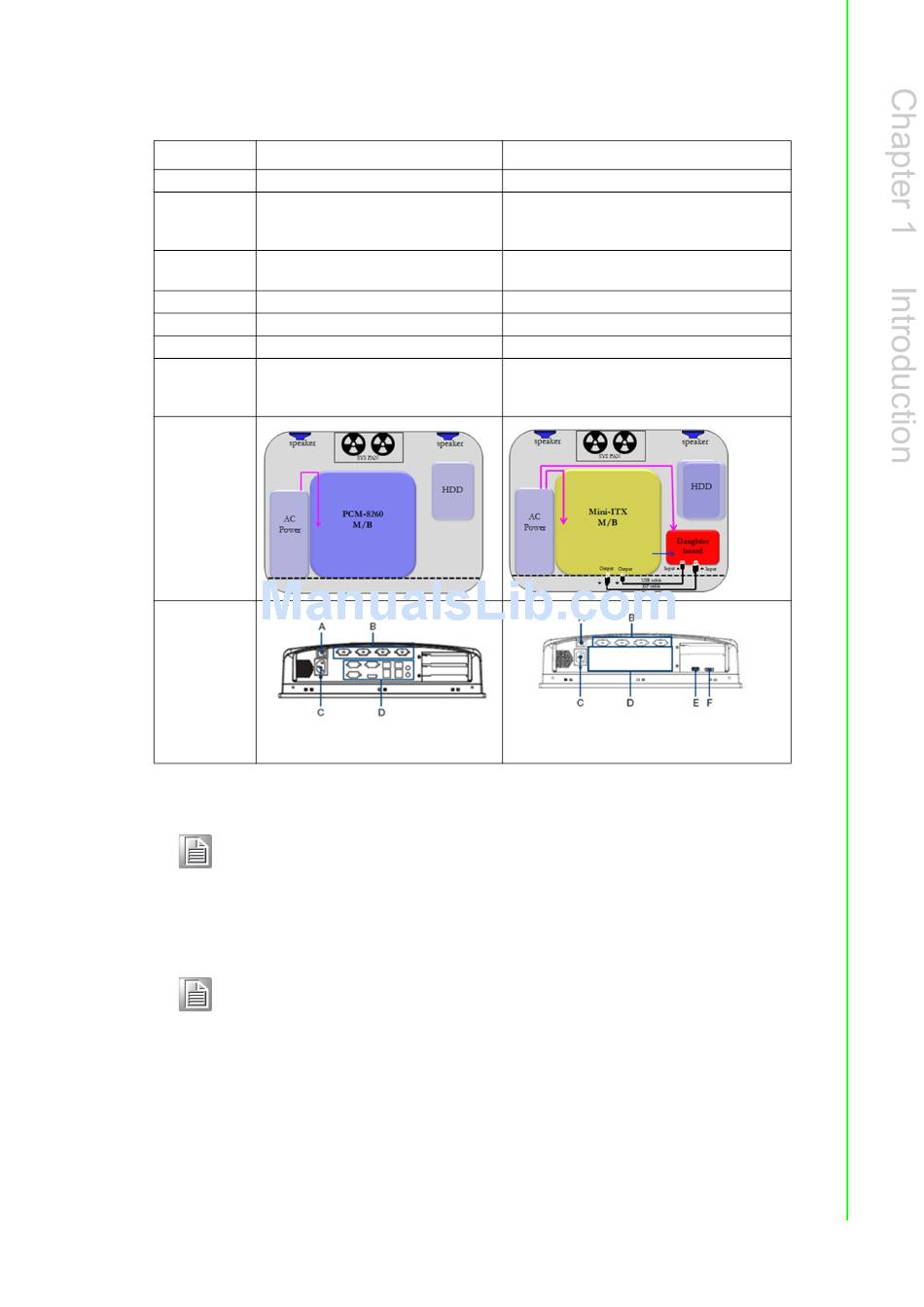

Chassis Comparison

Chassis P/N PPC-6151C/6171C/6191C-RTAE
Design Goal Highly optimized
Supported
Motherboard Must follow design guide
Type
Daughter
Unnecessary
Board
Riser Card 2 slots
HDD Kit 1
Speaker 2 x 1W
1. Reduced cabling
Advantage 2. Cost effective (w/o daughter
board)
Internal Box
Structure
I/O View
A. Power Switch
B. Reservation port
Note! Users can determine which chassis they are using by checking whether
the system features a USB port and a DP port. After identifying the
chassis type, refer to Chapters 2.3 and 2.4 (PPC-6151C/6171C/6191C-
RTAE and PPC-6151C/6171C/6191C-RMAE, respectively) for installa-
tion.
Note! When selecting a motherboard, please refer to the PPC-6151C/6171C/
6191C selection guide.
PPC-6151C/6171C/6191C-RMAE
Highly compatible
Compatible with most Mini-ITX mother-
boards certified by Advantech
Necessary (additional cabling for external
USB and DP)
1 slot
2
Optional
1. Compatible with most Mini-ITX mother-
boards
A. Power Switch
C. AC inlet
B. Reservation port
D. PPC-MB-8260AE I/O port C. AC inlet
D. Mini-ITX M/B I/O port
3 PPC-6151C/6171C/6191C User Manual
E. USB2.0 (input, for connecting
M/B and touch controller)
F. Display port (input, for connecting
M/B and touch controller)
