2.7
Quick Installation
Users can independently complete the panel wall mount installation by following the
quick installation procedures listed below.
1.

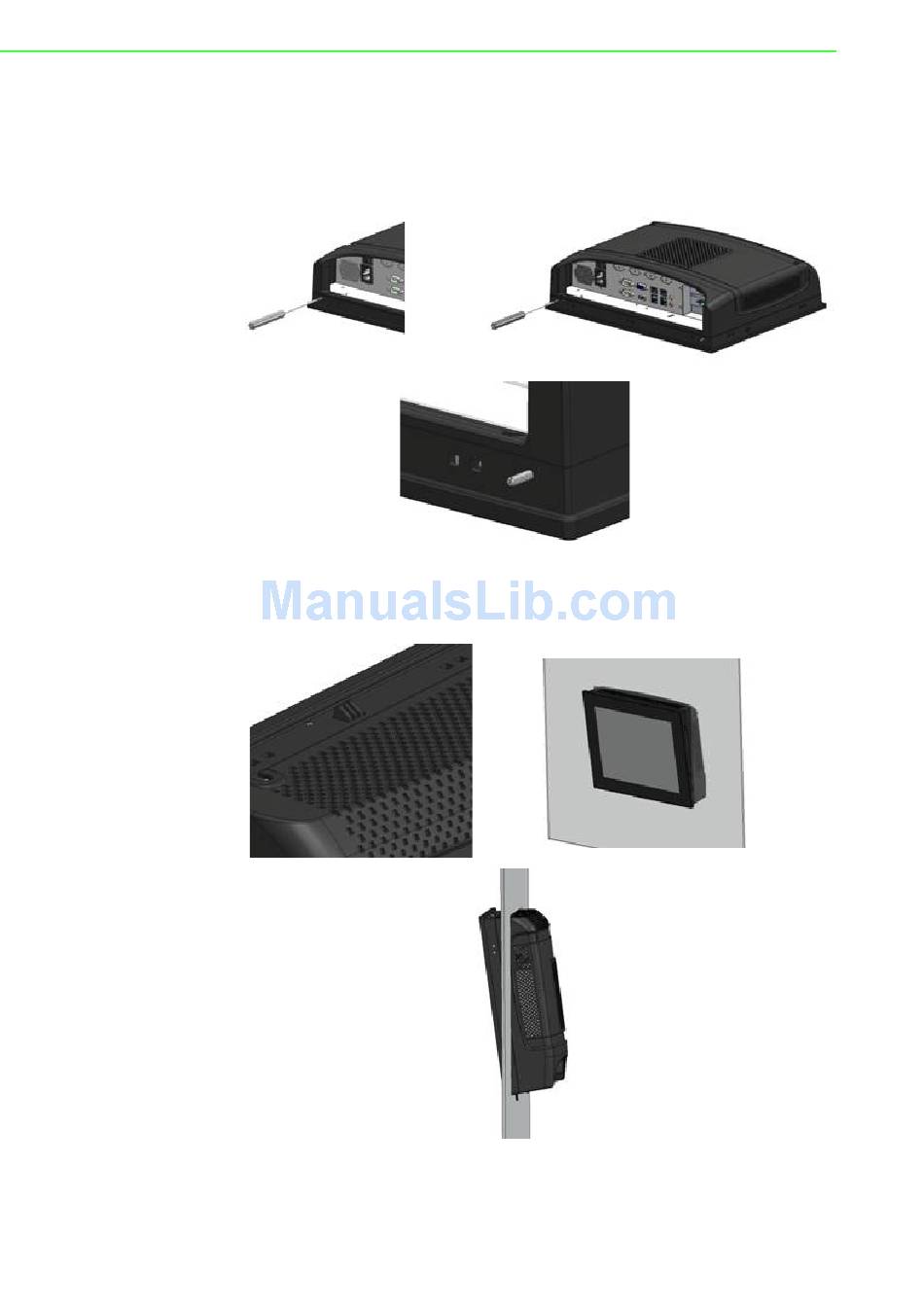

Loosen the two screws at the base (see the figure below).
2.
Push the machine into a gap in the wall. The spring hook will lock the machine
into the wall.
PPC-6151C/6171C/6191C User Manual
38
